Crown PO3LB-7B Self-Priming Solids Handling Pump
Crown PO3LB-7B Self-Priming Solids Handling Pump
SKU : CWN3C03D0007B031
In Stock Quantity:0
:
Brand
:
Regular price
$14,930.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

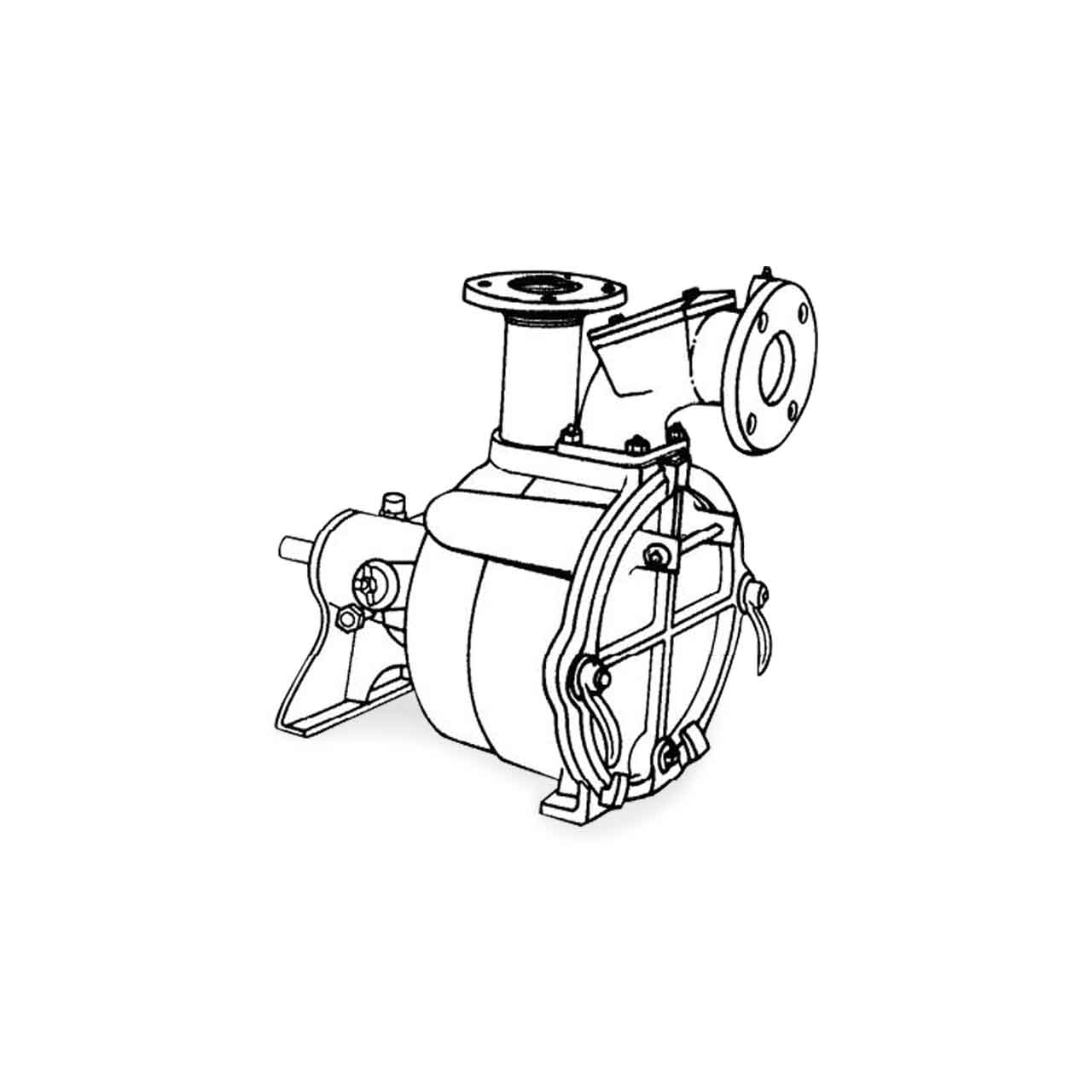

Crown Model PO3LB-7B Self-Priming Solids Handling Pump
Crown offers a broad range of engineered self-priming centrifugal pumps for a variety of light to heavy-duty wastewater applications. Designed specifically for unscreened raw sewage or industrial waste applications.
Crown Model PO3LB-7B Self-Priming Solids Handling Pump Applications
- Industrial (Raw Water, Wastewater, Barge Stripping)
- Municipal (Lift Station, Sewage Treatment, Digesting Sludge)
Crown Model PO3LB-7B Self-Priming Solids Handling Pump Features and Benefits
- Casing is Cast Iron ASTM A-48 Class 30.
- Check Valve Elbow and Weights are Cast Iron ASTM A-48 Class 30, Neoprene Valve Flap.
- Pedestal is Cast Iron ASTM A-48 Class 30.
- Shaft is High Carbon Steel.
- Volute/Wearplate is Cast Iron A-48, Class 30, Replaceable External Clearance Adjustment.
- Seal is Carbon/Ceramic/ Buna-N.
- 3" 125lb. Flange Discharge and 3" 125lb. Flange Suction
- Temperature Rating: 160°F (71°C), Continuous.
Specifications
Specifications
Crown Model PO3LB-7B Self-Priming Solids Handling Pump Specifications
- DRIVE END BEARING: Single Row, Ball Oil Lubricated, Radial & Thrust Load
- PUMP END BEARING: Single Row, Ball Oil Lubricated, Radial & Thrust Load
- SEAL: Single Mechanical, Grease with Self-Feeding Lubricator
- END COVER PLATE: Cast Iron ASTM A-48, Class 30, Full Diameter, Removable
- SEAL PLATE: Alloy Steel, Replaceable
- CHECK VALVE: Elbow & Weights are Cast Iron ASTM A-48, Class 30, Neoprene Flap Valve
- IMPELLER TYPE: Two Vane, Open. Dynamically Balanced, ISO G6.3, Cast Iron ASTM A-48, Class 30
- SPHERICAL SOLIDS: 2-1/2"
- SUCTION: 3" 125' Flange
- DISCHARGE: 3" 125' Flange
Crown Model PO3LB-7B Self-Priming Solids Handling Pump Performance Curve
