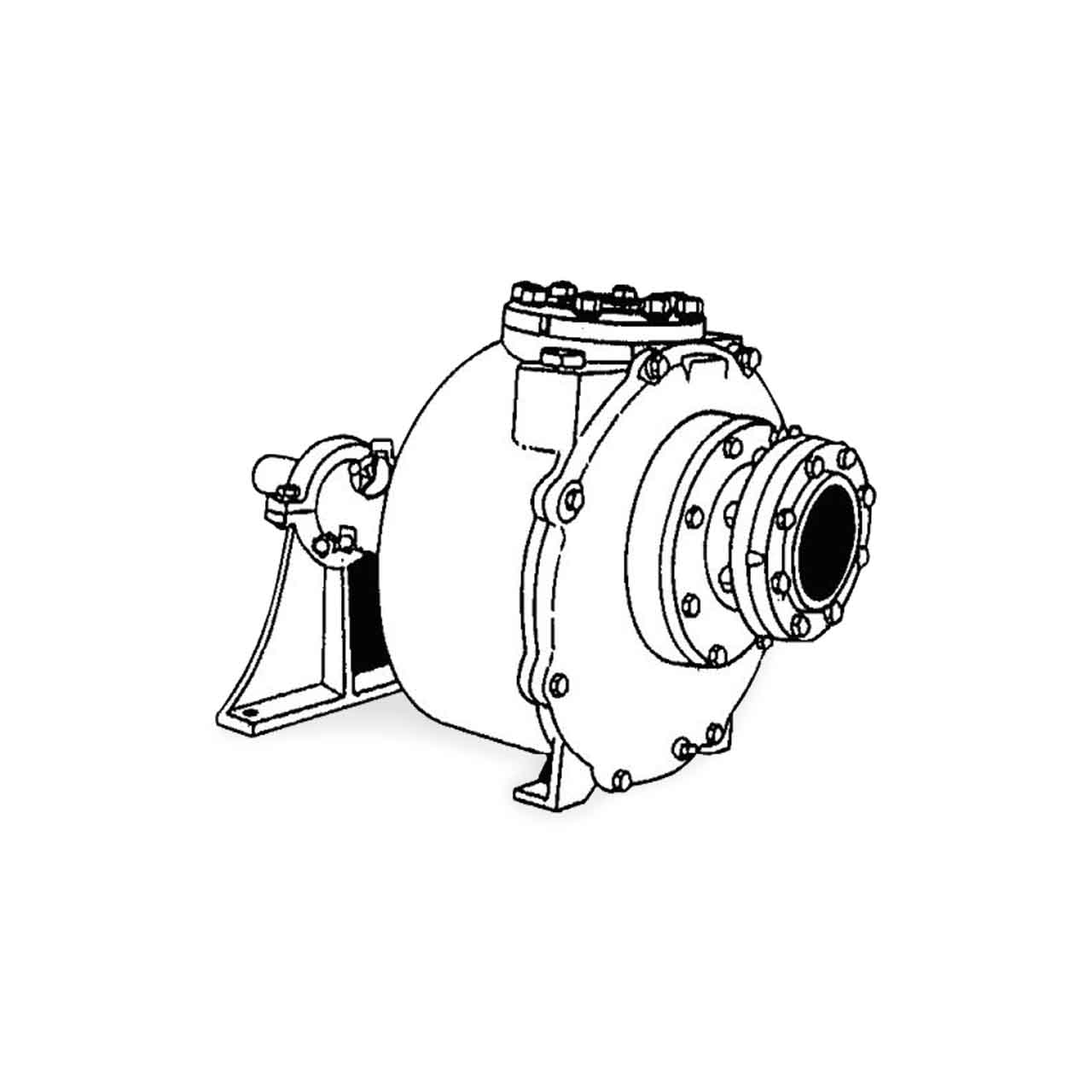

Crown Series B60-10L Self-Priming Universal/Electric Driven Pump End
Self-Priming Centrifugal Pumps designed for marine, municipal and industrial applications.
Crown Series B60-10L Self-Priming Universal/Electric Driven Pump End Features and Benefits
- Casing is Cast Iron ASTM A-48 Class 30.
- Check Valve Neoprene Valve Flap, Weight-Cast Iron ASTM A-48, Class 30.
- Pedestal is Cast Iron ASTM A-48 Class 30.
- Shaft is High Carbon Steel.
- Volute/Wearplate is Cast Iron A-48, Class 30, Replaceable Multi-Stage.
- Seal is Carbon/Ceramic/ Buna-N.
- 6" 125lb. Flange Discharge and 6" 125lb. Flange Suction
- Temperature Rating: 160°F (71°C), Continuous.
Specifications
Specifications
Crown Series B60-10L Self-Priming Universal/Electric Driven Pump End Specifications
- DRIVE END BEARING: Single Row, Ball Oil Lubricated, Radial & Thrust Load
- PUMP END BEARING: Single Row, Ball Oil Lubricated, Radial & Thrust Load
- SEAL: Single Mechanical, Grease with Self-Feeding Lubricator
- CHECK VALVE: Valve Flap-Neoprene, Weight Cast Iron ASTM A -48, Class 30
- IMPELLER TYPE: Semi-Open Type. Passes 1-1/2" Solids. Dynamically Balanced, ISO G6.3
- SUCTION: 6" NPT Flange
- DISCHARGE: 6" NPT Flange
Crown Series B60-10L Self-Priming Universal/Electric Driven Pump End Performance Curve
