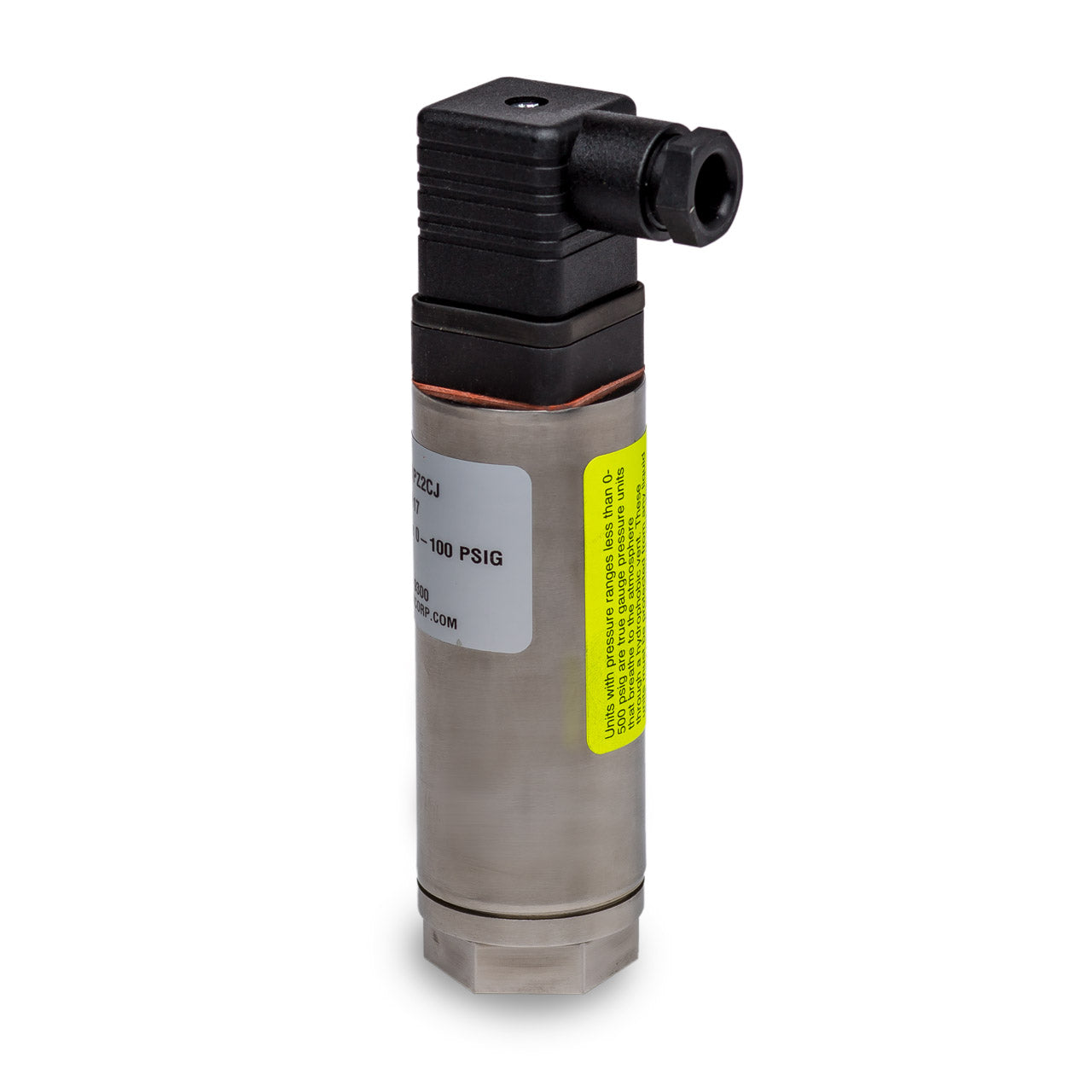

Blue Ribbon BR311 Description

The BR11 series water pressure transducer is available in ranges from 0-5 PSI thru 0-10,000 PSI. Designed to handle the pulsations & continual cycling found on water treatment pumps or on pneumatic or hydraulic lines.

Blue Ribbon BR311 Typical Applications

• Pumps and Compressors
• Irrigation Systems
• Hydraulic Control
• Machine Control
• General Industrial

Blue Ribbon BR311 Features

• Rugged, all welded SST Construction
• 3 mV/V, 0-5 VDC, 4-20 mA and Intrinsically Safe 4-20mA
• High Accuracy,±0.5% FSO Standard,±0.1% FSO optional
• Resistant to Pressure Spikes

Blue Ribbon BR311BPZ2CJ Specifications

• Pressure Range: 0-100 PSI
• Output (at 70ºF): 4/20mA 9.0-36 VDC Excitation
• Accuracy: ±0.5% FSO
• Pressure Types: Gauge
• Zero Balance: 4mA±2% FSO (at 24 VDC)
• Temperature Limits: Compensated 0ºF to 180ºF Operating -40ºF to 190ºF
• Storage -65ºF to 250ºF
• Insulation Resistance: >10 megohms @ 50 VDC & at 70ºF
• Enclosure Material: 316 Stainless Steel

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Blue Ribbon BR311BPZ2CJ Resources

Download Blue Ribbon BR11 Specification Sheet
