Barnes ZOGV2072PA Razor Grinder Pump 2.0 HP 208-240V 1PH 20' Cord Piggyback w/ Stand
Barnes ZOGV2072PA Razor Grinder Pump 2.0 HP 208-240V 1PH 20' Cord Piggyback w/ Stand
SKU : BAR145352
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

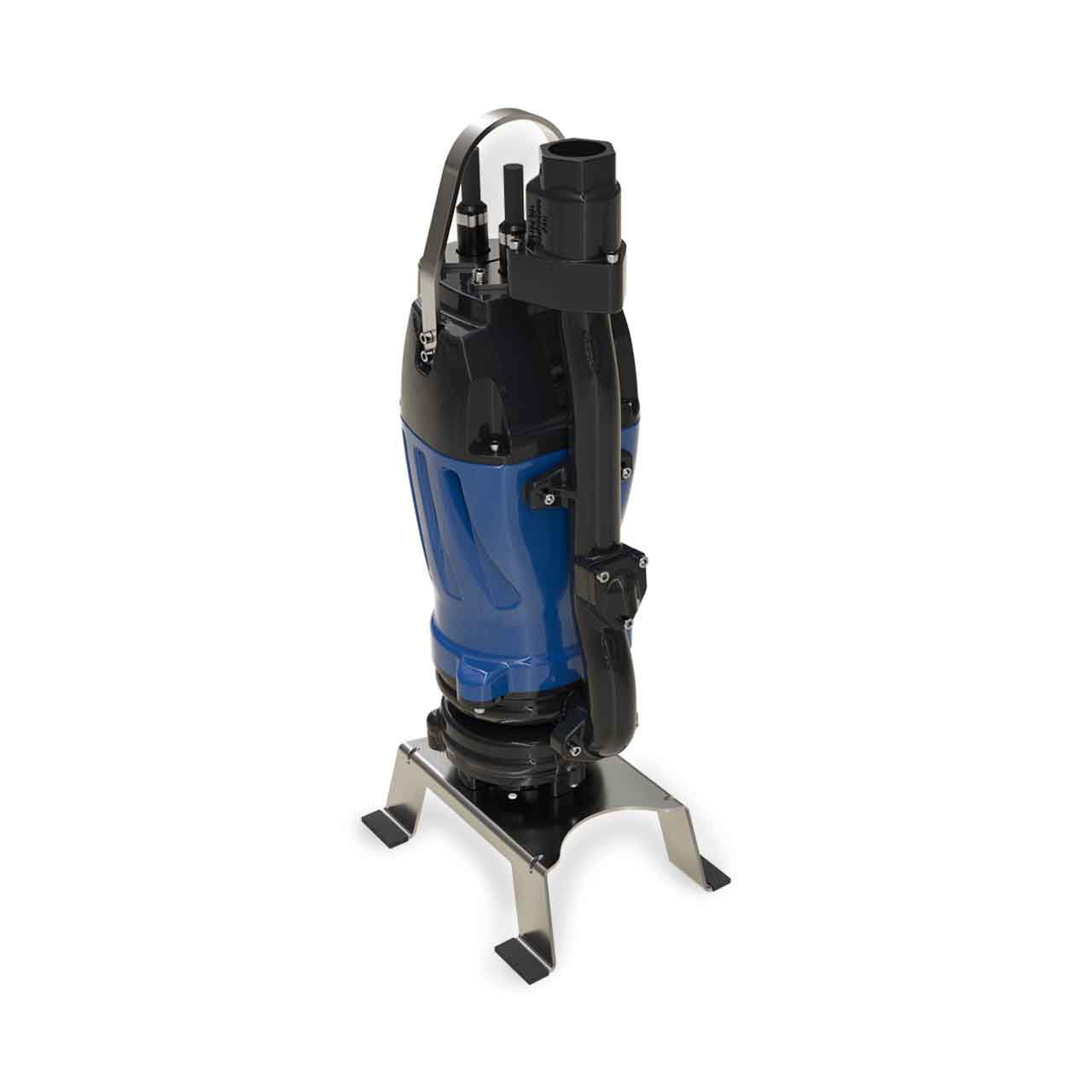

Barnes Razor Submersible Grinder Pump
RAZOR Grinder Pumps are the ideal 2 HP pump for light commercial and residential solids handling applications. The Razor is thoughtfully designed with an innovative axial cutting technology to efficiently reduce solids like flushable wipes, diapers and other non-biodegradable items commonly found in the modern waste stream.
The Razor features a dual voltage, oil-filled motor with optimal cutting torque performance in low voltage situations. The grinder pump also has heavy duty, oil-lubricated bearings to extend the pump's life and is available with either a dual or single stage impeller. There are multiple configurations available to easily adapt into existing applications. The Razor grinder pump is easy to service and maintenance, needing only a single tool to assemble.
Barnes Razor Submersible Grinder Pump Features

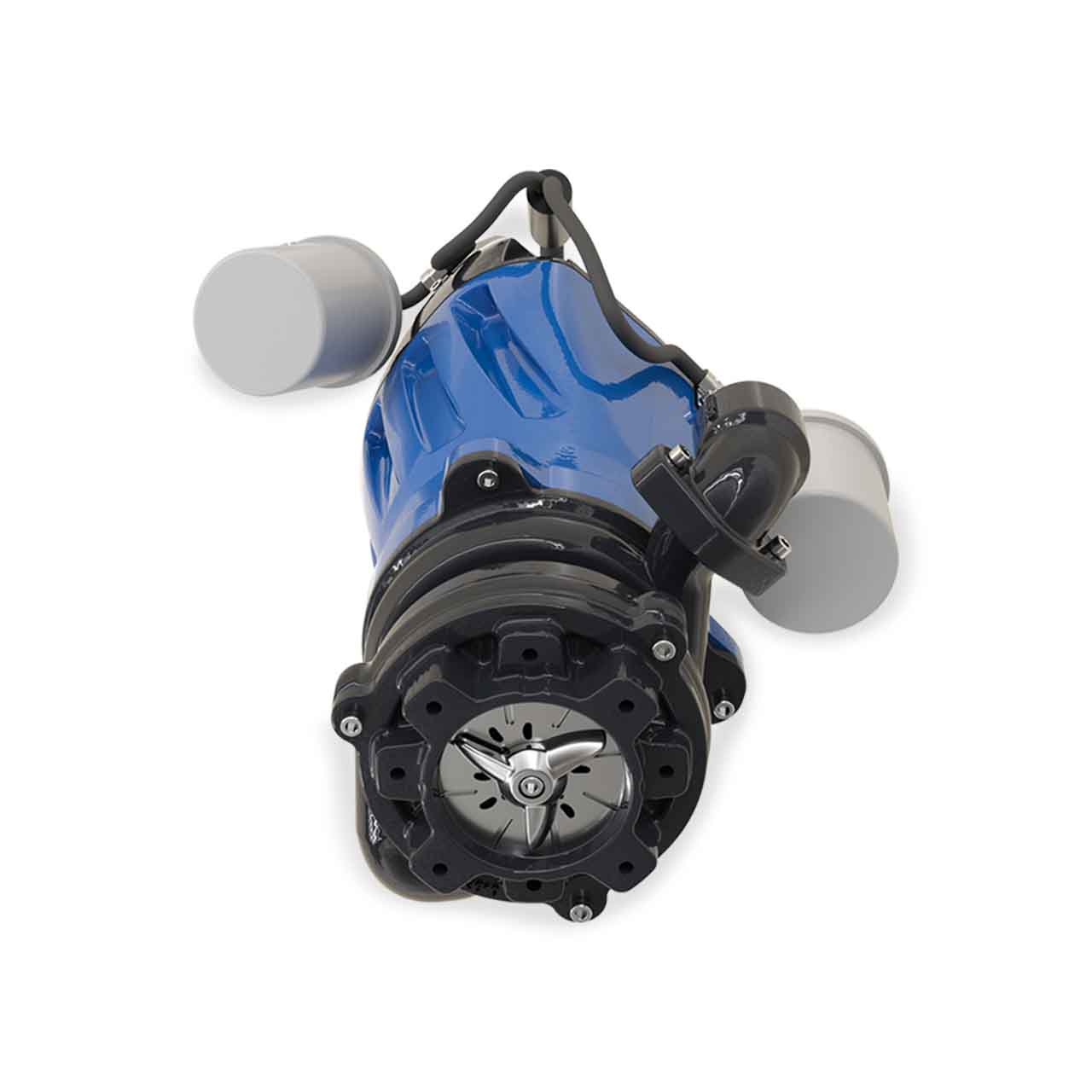

- Patented Axial Cutter: Provides Superior Non-Clogging Versus Radial Designs.
- Light Weight: Designed for Ease of Installation and Service.
- Dual Voltage Motor: Optimal Cutting Torque Performance in Low Voltage Situations 208-240V
- Retrofit: Configurations Available to Retrofit into Existing Barnes Applications and Competitor's Grinder Installs.
- Online Configurator: Highly Customizable Solutions.
- Float or Pressure Switch Options
- Convenient Maintenance: Utilize Single Tool for Service and Maintenance.
- Non-Overloading: Built to Handle Varying Pressures without Wear.
- Designed for Pressure Sewer: Unlike Non-Clog Pumps with Large Discharge Sizes, Razor 1.25" Discharge is Suitable for Preconfigured Packaged Systems and Turn Key Solutions.
- Serviceability: Plug-n-Play Cord Provides Easy Service without Requiring Removal of Epoxy in Conduit.
- STAND INCLUDED
Specifications
Specifications
Barnes ZOGV2072PA Razor Grinder Pump Specifications
- VOLTAGE: 1ø, 208-240V, 60 Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW: 17.5-15.0
- MOTOR TYPE: NEMA L-Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction
- RPM: 3450
- MAXIMUM HEAD: 125'
- MAXIMUM CAPACITY: 55 GPM
- SWITCH TYPE: PiggyBack Switch
- DISCHARGE PIPE SIZE: 1-1/4" NPT, Vertical, Bolt-On Flange
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3, Cast Iron
- CORD LENGTH: 20' Std Cord
- CORD SIZE: 12/3, Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
- MANUFACTURER PART NUMBER: 145352
Barnes Razor Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes Razor Grinder Pump Product Resources
Download Barnes Razor Grinder Pump Sales Sheet
