Barnes XZOGP2042L Razor Explosion Proof Grinder Pump 2.0 HP 460V 3PH 30' Cord Manual
Barnes XZOGP2042L Razor Explosion Proof Grinder Pump 2.0 HP 460V 3PH 30' Cord Manual
SKU : BAR149201
In Stock Quantity:-1
:
Brand
:
Regular price
$4,668.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

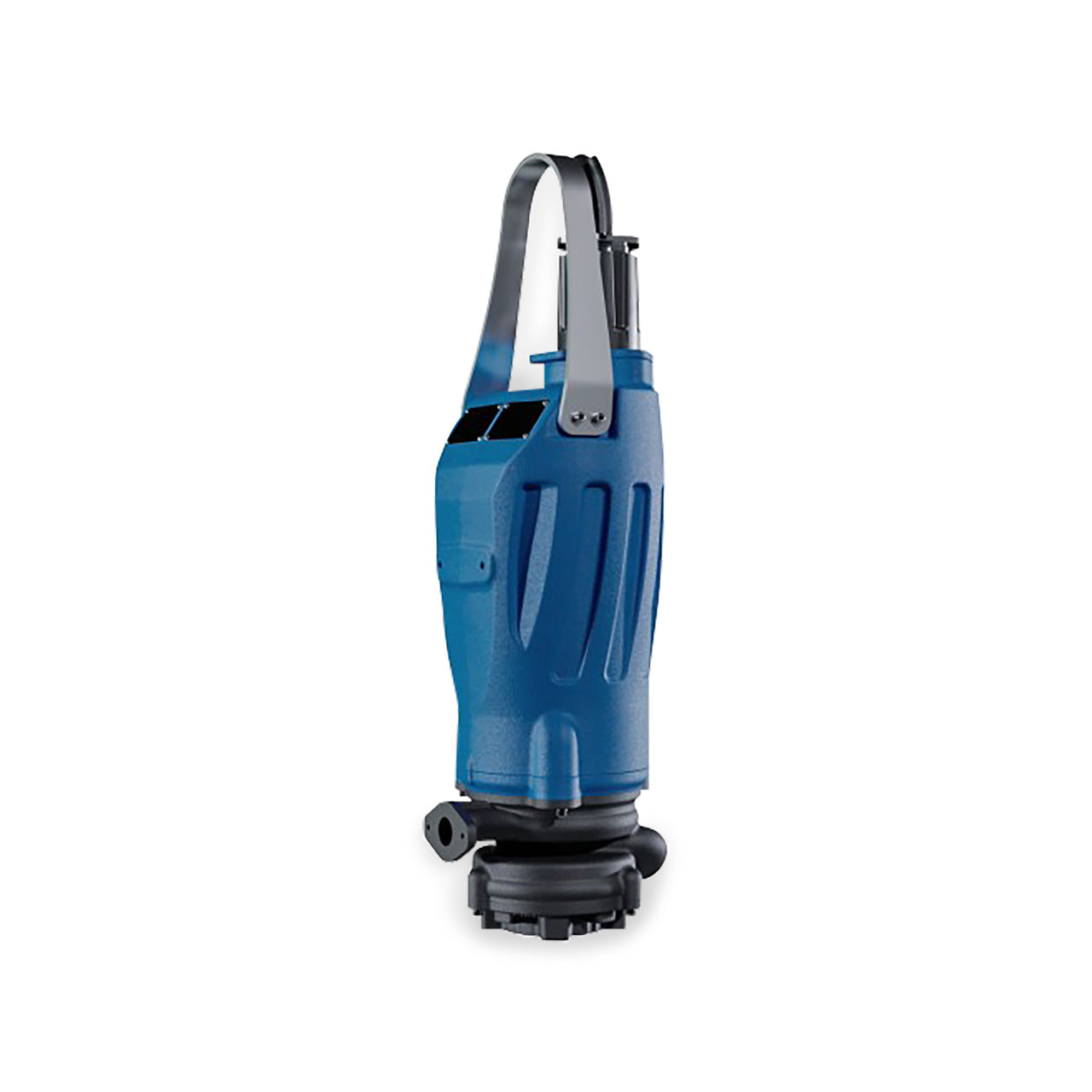

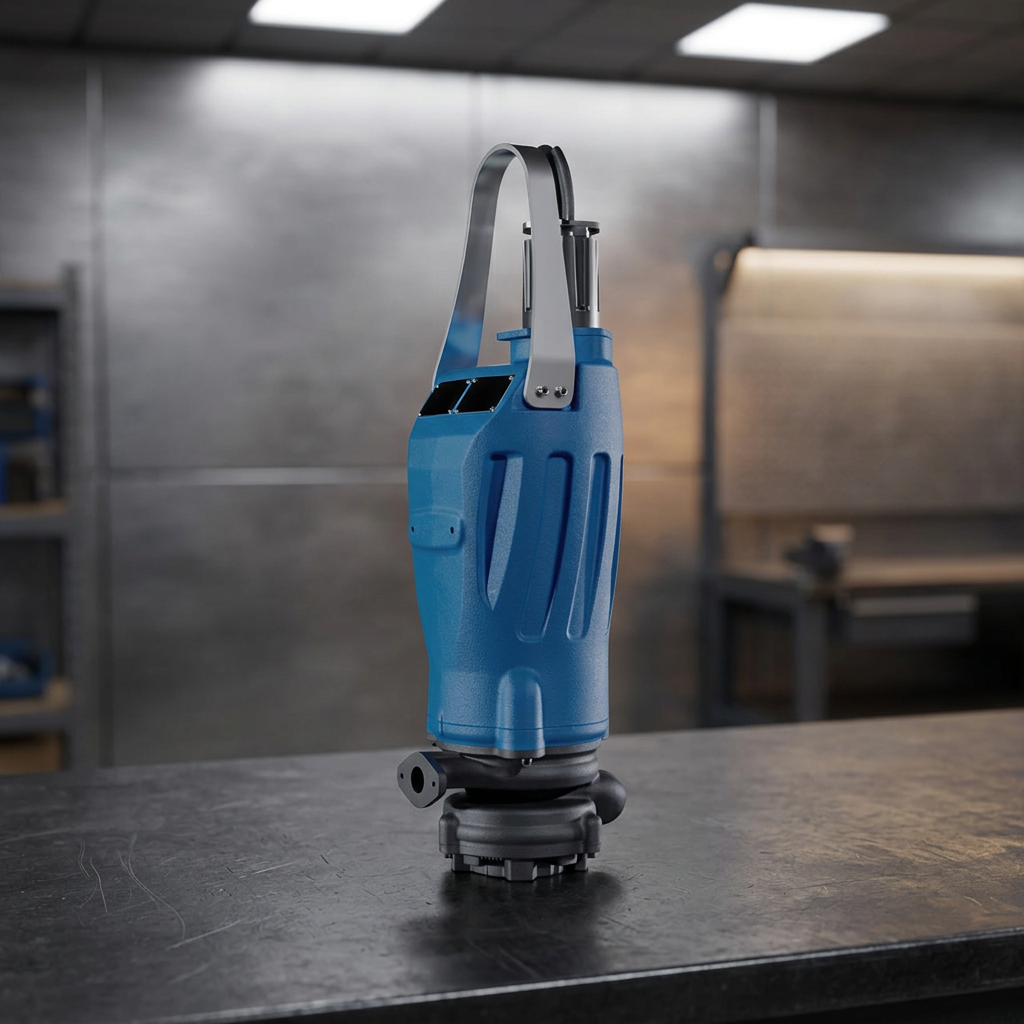

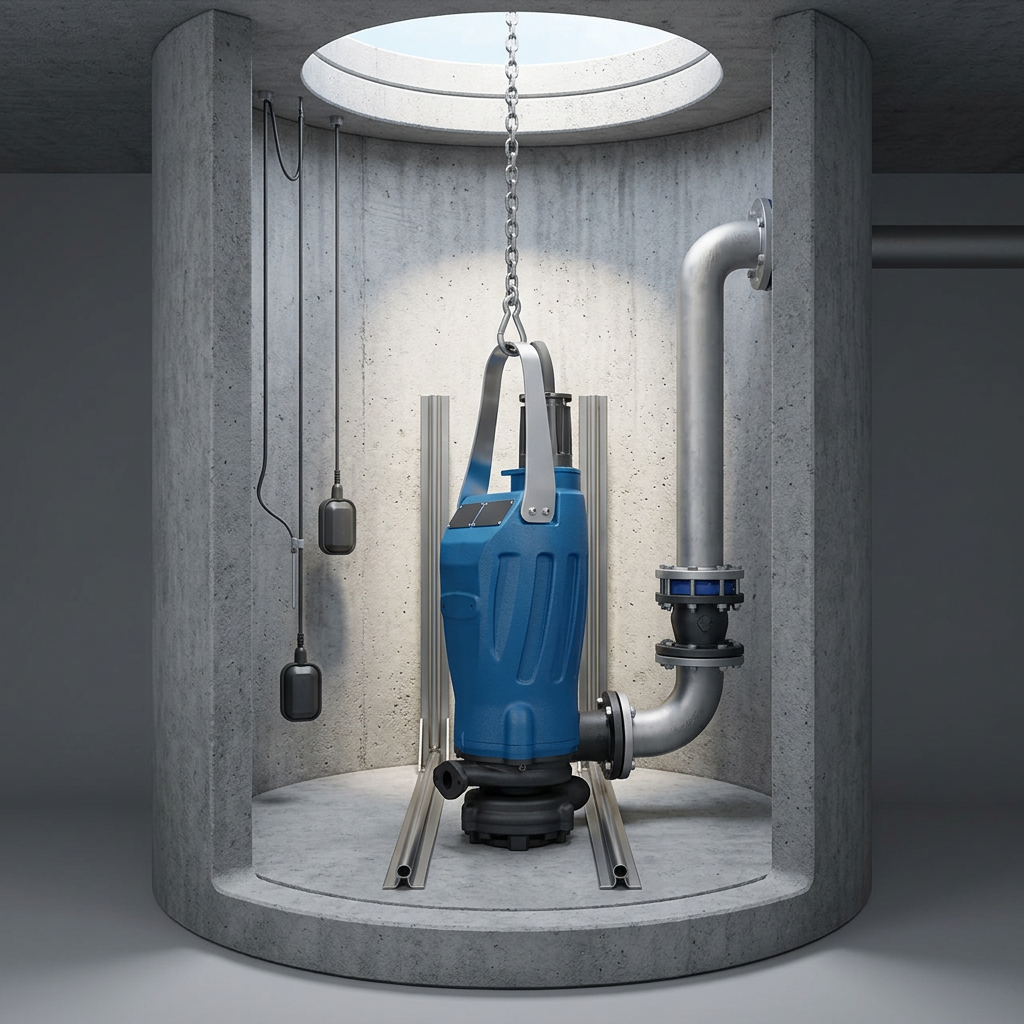

Barnes Razor Explosion Proof Submersible Grinder Pump
RAZOR Grinder Pumps are the ideal 2 HP pump for light commercial and residential solids handling applications. The Razor is thoughtfully designed with an innovative axial cutting technology to efficiently reduce solids like flushable wipes, diapers and other non-biodegradable items commonly found in the modern waste stream.
With the addition of explosion proof rated models, Barnes' Razor product line has become one of the most diverse lines of 2HP grinder pumps on the market. Offering the unique performance of our single and dual stage hydraulics, with a robust new motor housing and Plug-n-Play cord - the explosion proof Razor adds a reliable solution for Class 1 Division 1 Hazardous Locations. The XP Razor has been thoughtfully designed to offer superior ease of installation and ease of service compared to other explosion-proof solutions in the market today, saving customers up to 70% of time for installations and service calls.
Barnes Razor Explosion Proof Submersible Grinder Pump Features
- Axial Cutter Provides Superior Grinding Versus Radial Cutter Designs.
- Tank Mixing Capabilities Keeps your Station Cleaner by Preventing Solids from Settling.
- Plug-and-Play Cord Simplifies Service by Allowing Pump to be Disconnected without Servicing the Conduit.
- In Low Voltage Situations, a 208-230V Dual Voltage Motor Provides Optimal Cutting Torque Performance.
- External Capacitors Provide the Ability to Service without Needing to Pull the Pump or Utilize a UL Certified Service Shop.
- Robust Construction for Reliability in Class 1 Division 1 Hazardous Locations.
- Multiple Hydraulic Options to Optimize Pump Performance.
- Operations Across the Full Range of the Curve without Overloading or Cavitation.
Specifications
Specifications
Barnes XZOGP2042L Razor Explosion Proof Grinder Pump Specifications
- VOLTAGE: 3ø, 460V, 60 Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW: 4.6
- MOTOR TYPE: NEMA L-Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction
- RPM: 3450
- MAXIMUM HEAD: 200'
- MAXIMUM CAPACITY: 30 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/4" NPT, Vertical, Bolt-On Flange
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3, Bronze
- CORD LENGTH: 30' Custom Plug & Play for Sealing and Strain Relief
- CORD SIZE: 12/3, Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
- HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1
- MANUFACTURER PART NUMBER: 149201
Barnes Razor Explosion Proof Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes Razor Explosion Proof Grinder Pump Product Resources
Download Barnes Razor Explosion Proof Grinder Pump Sales Sheet
