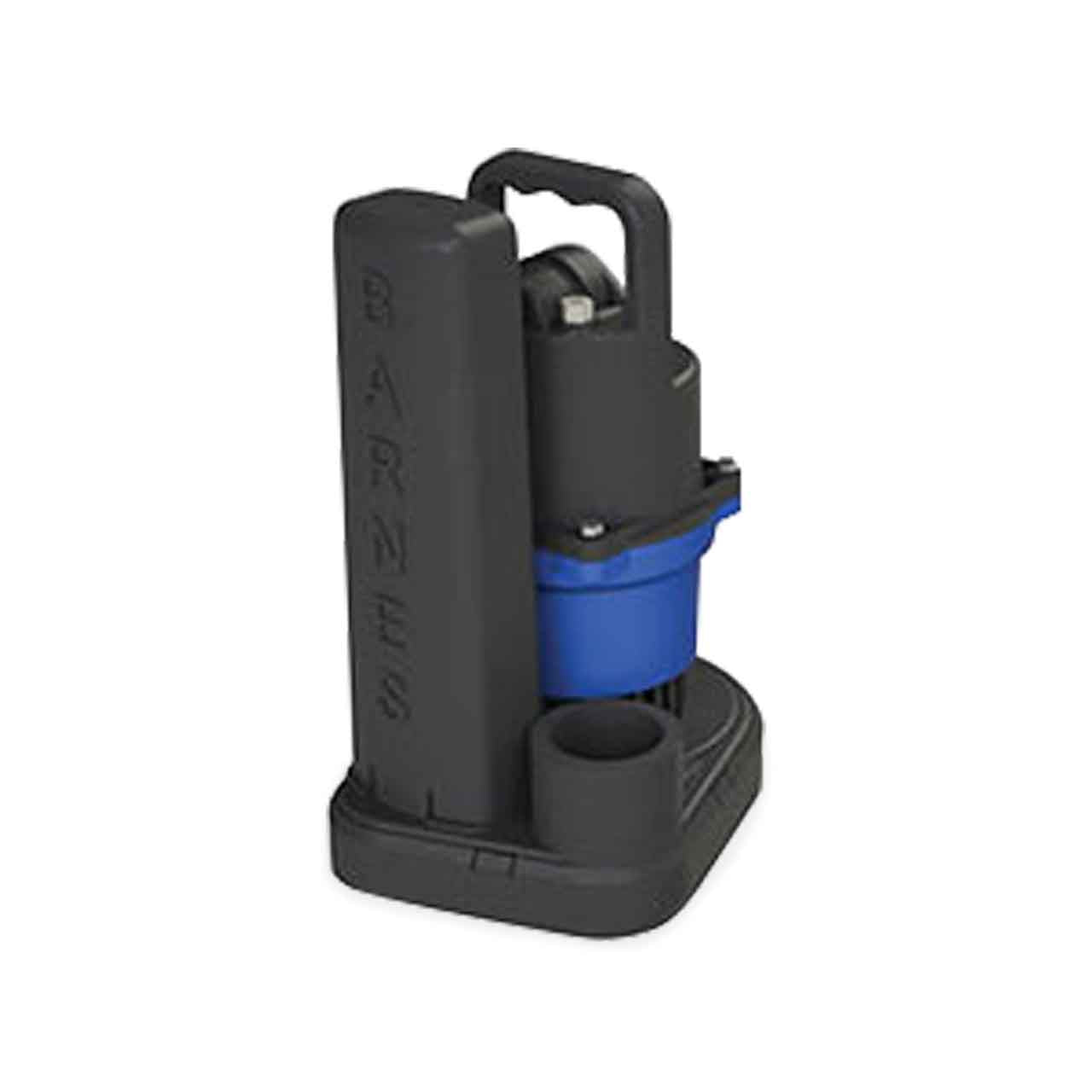

Barnes SU33 Submersible Sump Pump 0.33 HP 120V 1PH 9' Cord Automatic
Barnes SU33 Submersible Sump Pump 0.33 HP 120V 1PH 9' Cord Automatic
SKU : BAR130234
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Suggested Replacement: Barnes ESB33 Expel Submersible Sump Pump 0.33 HP 120V 1PH 9' Cord Automatic
Barnes SU33 Submersible Sump Pump
Barnes SHUR-Switch Sump Pump features low-cost, high-performance benefits from a rugged, heavy-duty design. All of our sump pumps feature dual ball bearing design and thermoplastic or cast iron impeller options. Barnes Sump Pumps feature a variety of switch options including a magnetic switch on our SHUR-Switch Sump Pump. All Barnes Sump Pumps are robustly designed for long operation life and dependable service. They are further enhanced by a stainless steel shaft and heavy duty seal. Barnes Sump Pumps save time and replacement costs because they are interchangeable with competing sump pump brands.
Barnes SU33 Submersible Sump Pump Applications
Pump for Residential Sump Applications
Barnes SU33 Submersible Sump Pump Features and Benefits
- CSA and SSPMA Certified.
- Top Suction Design to Prevent Air Lock.
- Shrouded Float for Less Chance of Hang Ups.
- Cast Iron Motor Housing.
- Magnets Activate Switch as Float Rises and Falls-Less Housing Openings to Prevent Leak Paths.
- Permanent Split Capacitor Motor for Reliable, High Performance, Longer Motor Life, Greater Starting Torque and Lower Amp Draw.
- Dual Single Row Ball Bearings.
- Thermoplastic Impeller.
- GFCI Compatible for Safety.
Specifications
Specifications
Barnes SU33 Submersible Sump Pump Specifications
- BODY CONSTRUCTION: Thermoplastic
- HORSEPOWER: 0.33 HP
- VOLTAGE: 120 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 3.4
- DISCHARGE PIPE SIZE: 1.5" NPT, Female, Vertical
- CORD LENGTH: 9'
- CORD TYPE: SJTW
- MAX HEAD: 21'
- MAX FLOW RATE: 45 GPM
- SWITCH TYPE: Vertical Float Integral to Pump
Barnes SU33 Submersible Sump Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SU33 Submersible Sump Pump Product Resources
Download Barnes SU33 Submersible Sump Pump Catalog Sheet
