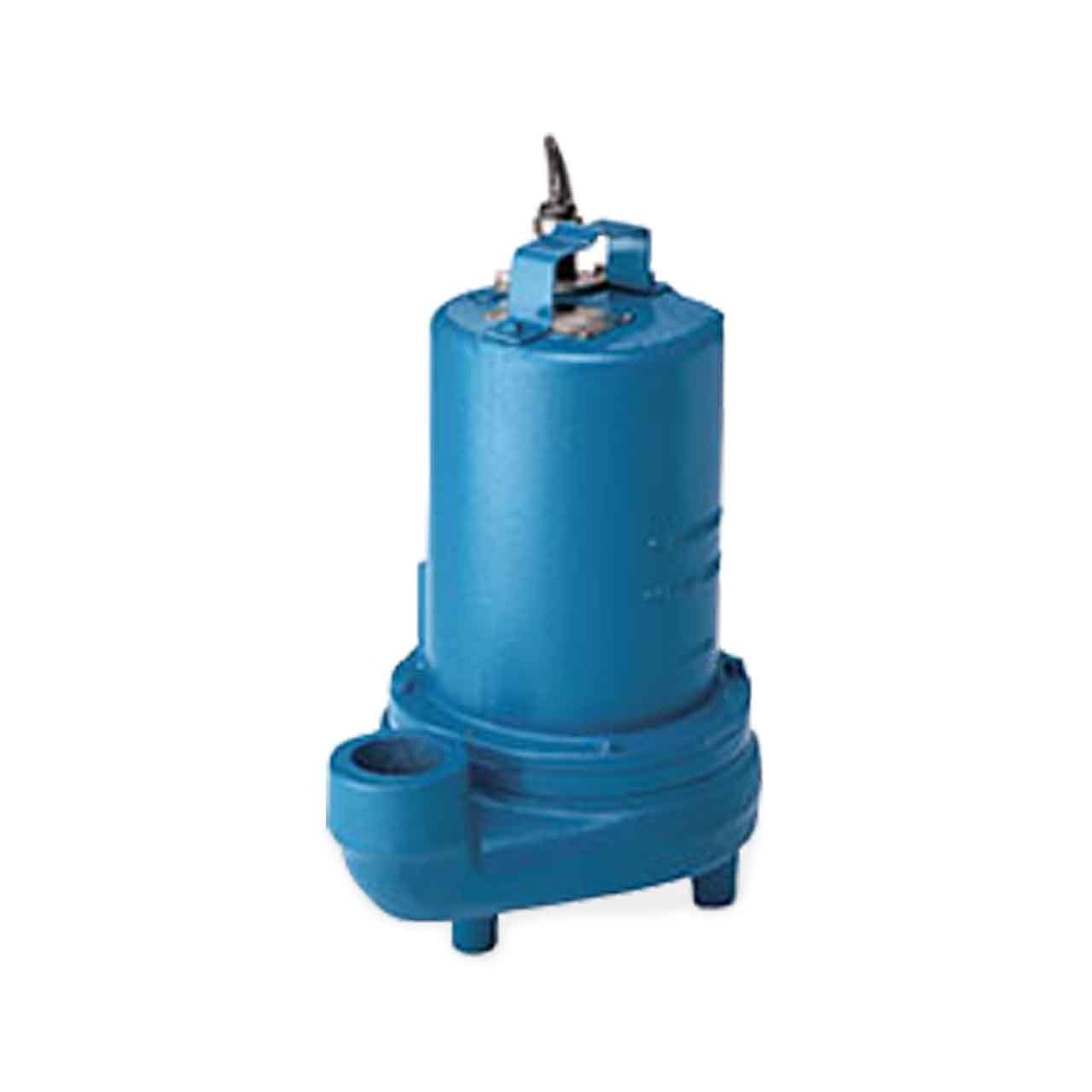

Barnes STEP-SS Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes STEP-SS Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes STEP-SS Series Submersible Effluent Pump Features

• Cast Iron Construction.
• NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction.
• Three Phase 200-230/460 is Tri-Voltage. 575V. Requires Overload Protection to be Included in Control Panel.
• Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
• Single Mechanical Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is made of Polypropylene with Stainless Steel Insert.
• 2" NPT Female Vertical Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

Barnes STEP1092SS Submersible Effluent Pump Specifications

• VOLTAGE: 3ø, 200/230V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 5.9/5.6
• MOTOR TYPE: Tri-Voltage, Requires Overload Protection in Control Panel
• RPM: 3450
• MAXIMUM HEAD: 110'
• MAXIMUM CAPACITY: 87 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Single-Vane Enclosed
• IMPELLER DIAMETER: 5.25”
• CORD LENGTH: 15'
• CORD SIZE: 14/4; Type SOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes STEP-SS Series Submersible Effluent Pump Performance Curve
