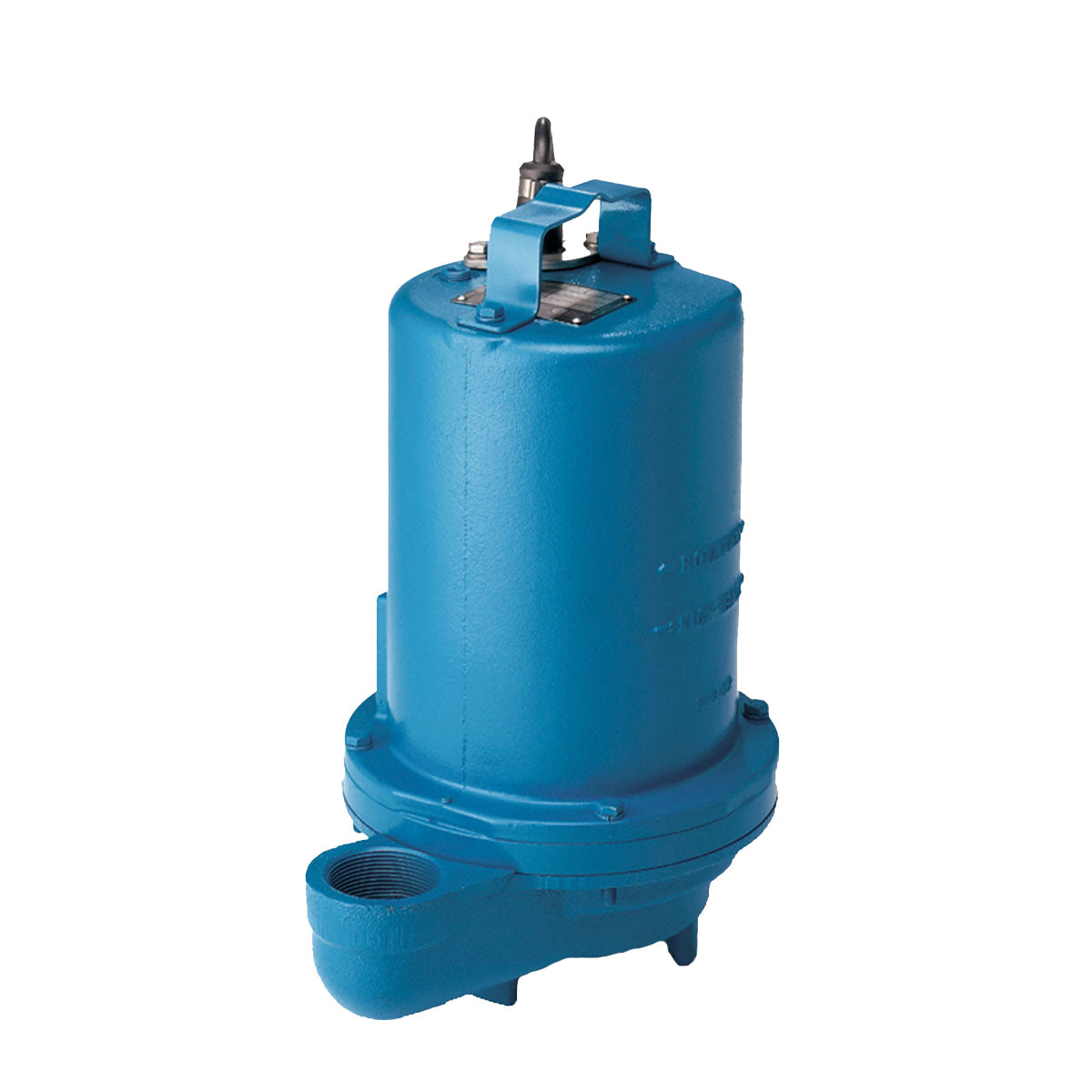

Barnes STEP1042DS Submersible Double Seal Effluent Pump 1.0 HP 460V 3PH 15' Cord Manual
Barnes STEP1042DS Submersible Double Seal Effluent Pump 1.0 HP 460V 3PH 15' Cord Manual
SKU : BAR105052
In Stock Quantity:0
:
Brand
:
Regular price
$2,267.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes STEP-DS Series Submersible Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes STEP-DS Series Submersible Effluent Pump Applications
Pump is designed for handling sewage effluent in typical septic tank/effluent applications.
Barnes STEP-DS Series Submersible Effluent Pump Features
- Cast Iron Construction.
- NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction.
- Three Phase 200-230/460 is Tri-Voltage.575V. Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is made of Polypropylene with Stainless Steel Insert Dynamically Balanced, ISO G6.3.
- 2" NPT Female Vertical Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes STEP1042DS Submersible Effluent Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 2.8
- MOTOR TYPE: Tri-Voltage, Requires Overload Protection in Control Panel
- RPM: 3450
- MAXIMUM HEAD: 110'
- MAXIMUM CAPACITY: 87 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- IMPELLER TYPE: Single-Vane Enclosed
- IMPELLER DIAMETER: 5.25”
- CORD LENGTH: 15'
- CORD SIZE: 14/4; Type SOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barnes STEP-DS Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes STEP-DS Series Submersible Effluent Pump Product Resources
Download Barnes STEP-DS Series Submersible Effluent Pump Specifications
Download Barnes STEP-DS Series Submersible Effluent Pump Manual
