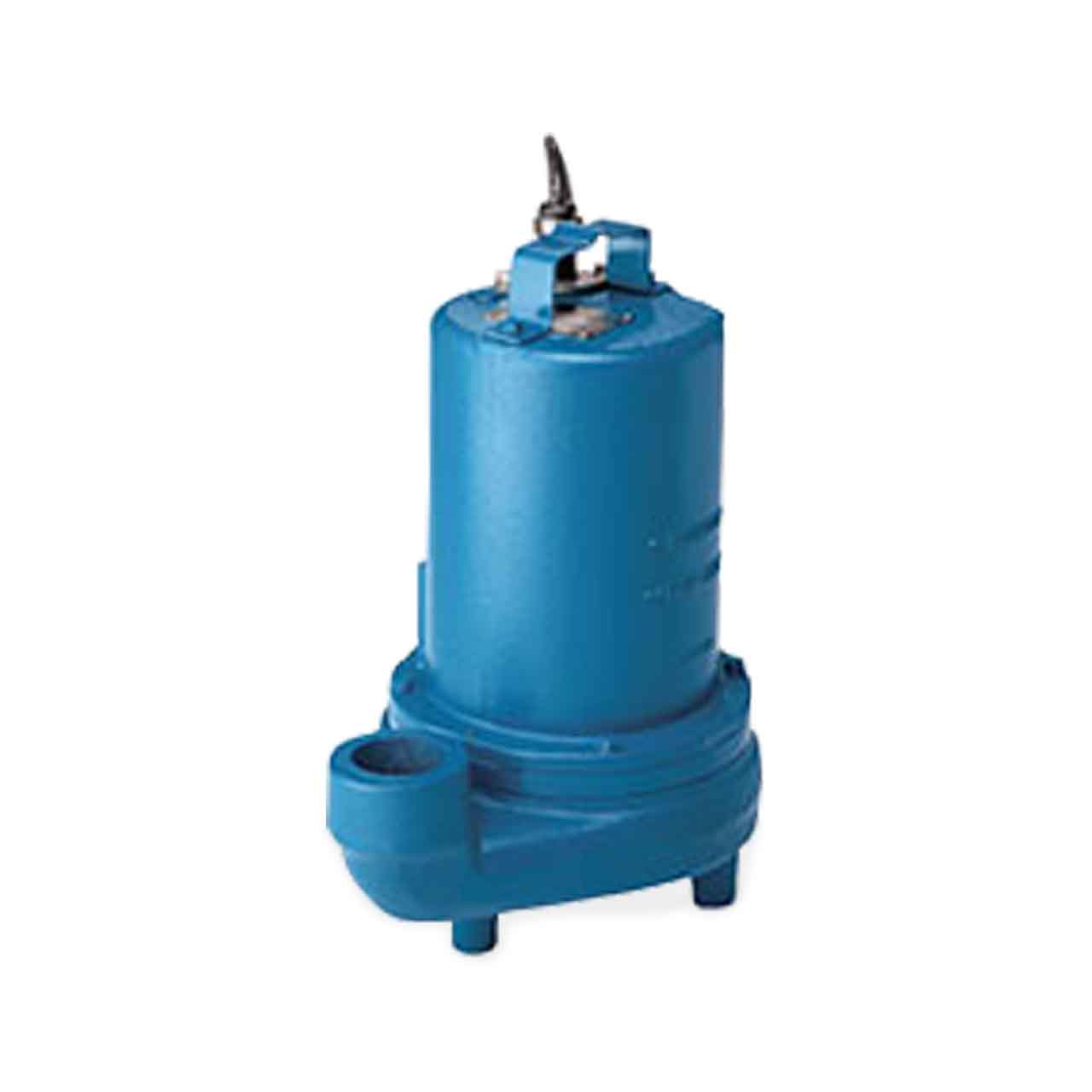

Barnes STEP1022SS Submersible Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual
Barnes STEP1022SS Submersible Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual
SKU : BAR105054
In Stock Quantity:12
:
Brand
:
Regular price
$1,789.92 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes STEP-SS Series Submersible Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes STEP-SS Series Submersible Effluent Pump Applications
Pump is designed for handling sewage effluent in typical septic tank/effluent applications.
Barnes STEP-SS Series Submersible Effluent Pump Features
- Cast Iron Construction.
- NEMA L-Single Phase, Oil Filled, Squirrel Cage Induction.
- Single Phase has Permanent Split Capacitor Includes Overload Protection in Motor.
- Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Single Mechanical Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is made of Polypropylene with Stainless Steel Insert.
- 2" NPT Female Vertical Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes STEP1022SS Submersible Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 8.3
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: 110'
- MAXIMUM CAPACITY: 87 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- IMPELLER TYPE: Single-Vane Enclosed
- IMPELLER DIAMETER: 5.25”
- CORD LENGTH: 15'
- CORD SIZE: 14/3; Type SOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barnes STEP-SS Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes STEP-SS Series Submersible Effluent Pump Product Resources
Download Barnes STEP-SS Series Submersible Effluent Pump Specifications
Download Barnes STEP-SS Series Submersible Effluent Pump Manual
