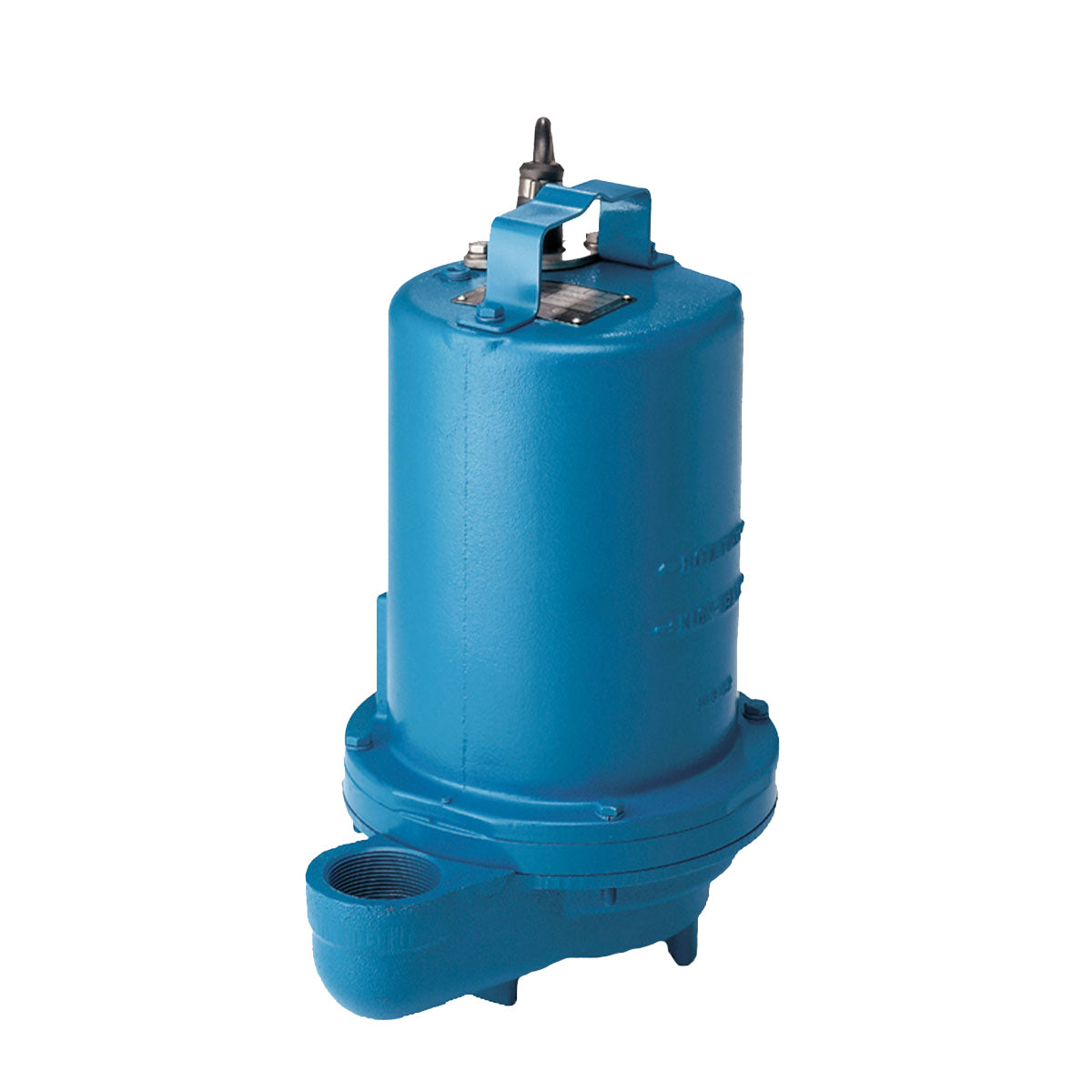

Barnes STEP1022DS Submersible Double Seal Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual

Barnes STEP1022DS Submersible Double Seal Effluent Pump 1.0 HP 230V 1PH 15' Cord Manual

Usually ships within 2 weeks

SKU : BAR105050

In Stock Quantity:0

:
Brand : Barnes
$2,104.08 USD
Shipping calculated at checkout.

Description


Barnes STEP-DS Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes STEP-DS Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes STEP-DS Series Submersible Effluent Pump Features

  • Cast Iron Construction.
  • NEMA L-Single Phase, Oil Filled, Squirrel Cage Induction.
  • Single Phase has Permanent Split Capacitor Includes Overload Protection in Motor.
  • Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
  • Tandem Mechanical, Oil Filled Reservoir Seal.
  • Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
  • Impeller is made of Polypropylene with Stainless Steel Insert Dynamically Balanced, ISO G6.3.
  • 2" NPT Female Vertical Discharge.
  • Temperature Rating: 104°F (40°C) Continuous.

Specifications

Barnes STEP1022DS Submersible Effluent Pump Specifications

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 1.0 HP
  • AMP DRAW (full load): 8.3
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 3450
  • MAXIMUM HEAD: 110'
  • MAXIMUM CAPACITY: 87 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4"
  • IMPELLER TYPE: Single-Vane Enclosed
  • IMPELLER DIAMETER: 5.25”
  • CORD LENGTH: 15'
  • CORD SIZE: 14/3; Type SOW
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • DUTY RATING: Continuous

Barnes STEP-DS Series Submersible Effluent Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes STEP-DS Series Submersible Effluent Pump Product Resources


Download Barnes STEP-DS Series Submersible Effluent Pump Specifications

Download Barnes STEP-DS Series Submersible Effluent Pump Manual
