Barnes SP33LT Laundry Tray System 0.33 HP 120V 1PH 10' Cord Automatic
Barnes SP33LT Laundry Tray System 0.33 HP 120V 1PH 10' Cord Automatic
SKU : BAR112900
In Stock Quantity:0
:
Brand
:
Regular price
$630.88 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

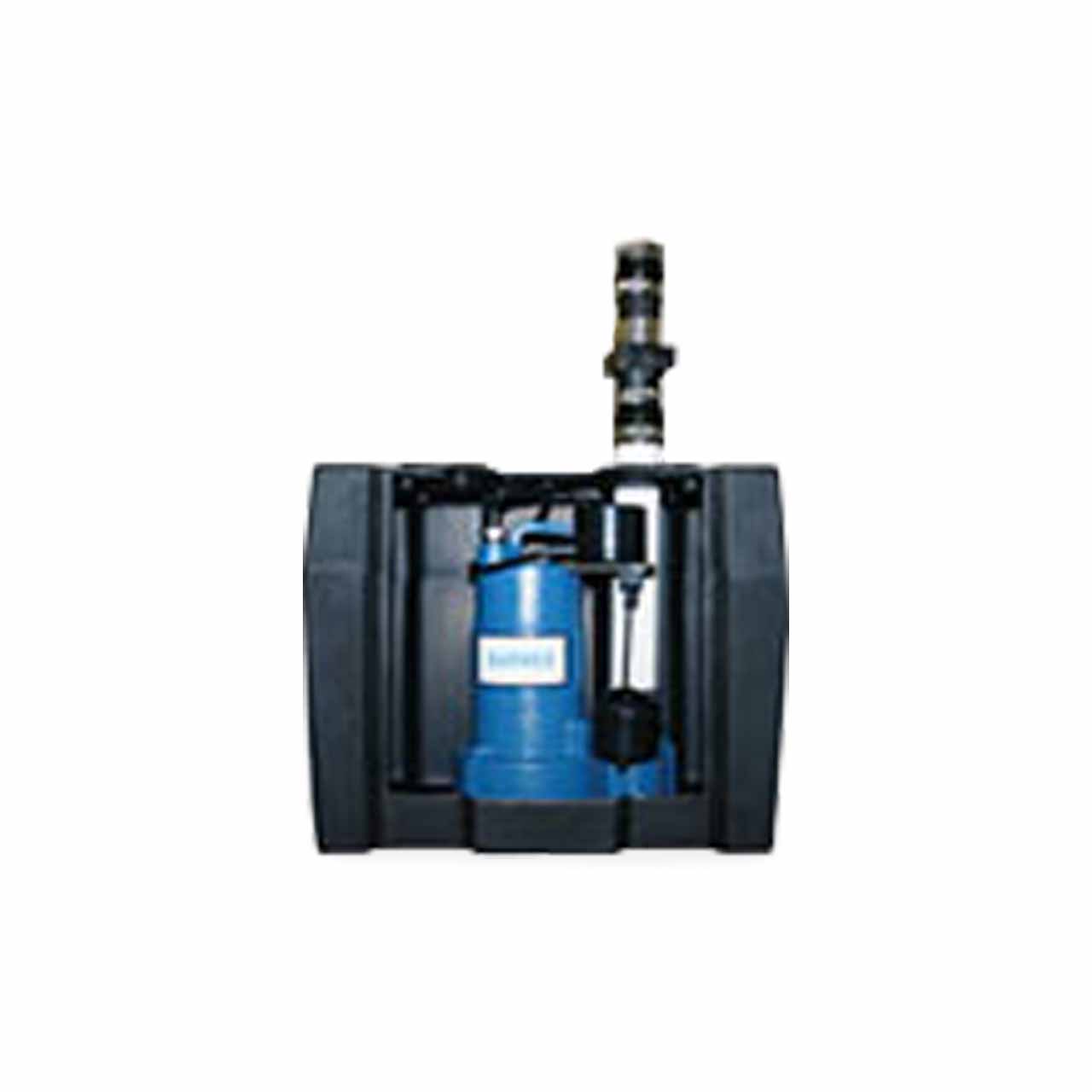

Barnes SP33LT Laundry Tray System
Laundry Tray Systems come complete, pre-assembled with pump, tank, discharge pipe and check valve. Systems can be used to remove water where gravity flow is not available without breaking concrete. Typical applications include laundry sinks, wet bars, dehumidifiers, water softeners and air conditioning condensation.
Barnes SP33LT Laundry Tray System Applications
General Purpose Packaged Pump System for Residential and Light Industrial Sump Applications.
Barnes SP33LT Laundry Tray System Features
- All Components are Durable, Corrosion-Resistant Polyethylene.
- Box and Cover have a Matching Textured Finish.
- 1.5" Threaded "Spin Weld" Insert for the Inlet.
- Grommet Discharge, Vent and Cord Seals.
- Accommodates 1.5" Discharge Piping.
- Stainless Steel Bolts and Encapsulated Aluminum Inserts.
- Large 11 Gallon Capacity.
- 1/8" Thick Black Closed Cell Foam Gasket.
- Size 12"x16"x14".
- Wall Thickness 3/16".
- Package Weight 26lbs (Includes Pump).
Specifications
Specifications

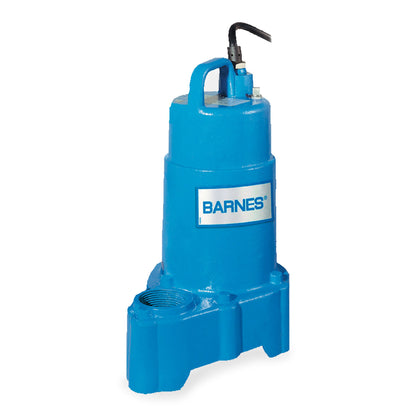

Barnes SP33 Submersible Effluent Pump Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.33 HP
- VOLTAGE: 120 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 5.8
- DISCHARGE PIPE SIZE: 1.5" NPT, Female, Vertical
- SOLIDS HANDLING: 1/2" Spherical Solids
- CORD LENGTH: 10'
- CORD SIZE & TYPE: 18/3, SJTOW
- MAX HEAD: 30'
- MAX FLOW RATE: 50 GPM
- SWITCH TYPE: Manual
- IMPELLER: 10 Vane Vortex, with Pump Out Vanes on Back Side, Balanced, ISO G6.3
Barnes SP33LT Laundry Tray System Performance Curve
