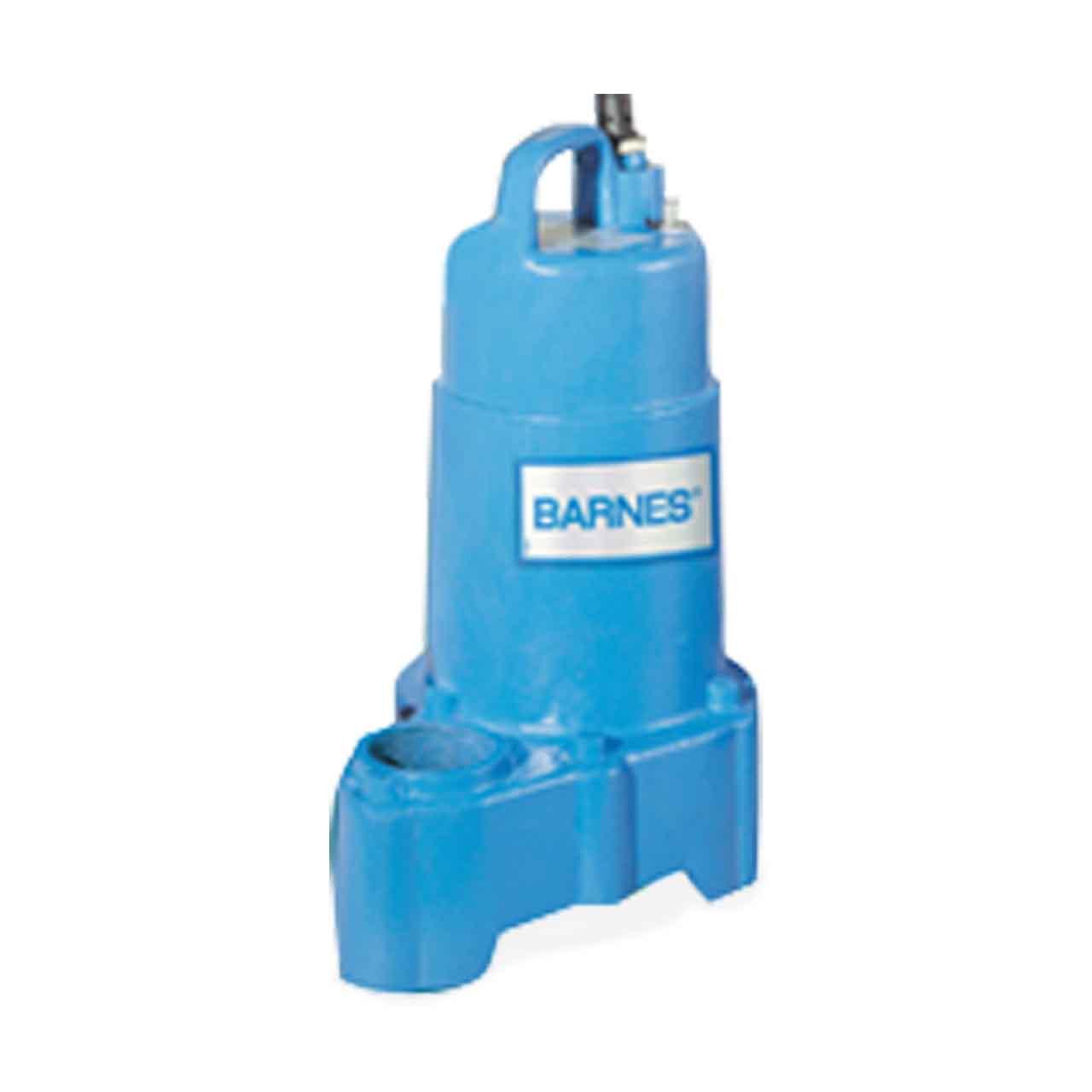

Barnes SP33HTX Submersible High Temperature Effluent Pump 0.33 HP 120V 1PH 20' Cord Manual
Barnes SP33HTX Submersible High Temperature Effluent Pump 0.33 HP 120V 1PH 20' Cord Manual
SKU : BAR113667
In Stock Quantity:0
:
Brand
:
Regular price
$680.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes SP Series Submersible High Temperature Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes SP Series Submersible High Temperature Effluent Pump Applications
Pump is designed for handling sewage effluent in HIGH TEMPERATURE septic tank/effluent applications.
Barnes SP Series Submersible High Temperature Effluent Pump Features
- Cast Iron Construction.
- Single Phase has Permanent Split Capacitor. Includes Overload Protection in Motor.
- Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Single Mechanical, Type 21 Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Cast Iron Vortex Impeller.
- 1.5" NPT Female Vertical Discharge.
- Temperature Rating: 185°F (85°C) Continuous, Fully Submerged.
Specifications
Specifications
Barnes SP33HTX Submersible High Temperature Effluent Pump Specifications
- VOLTAGE: 1ø, 120V, 60Hz
- HORSEPOWER: 0.33 HP
- AMP DRAW (full load): 5.8
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: 24'
- MAXIMUM CAPACITY: 45 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: 12" (305mm)
- DISCHARGE PIPE SIZE: 1.5" NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 1/2"
- IMPELLER TYPE: 10 Vane Vortex, with Pump Out Vanes on Back Side, Balanced, ISO G6.3
- IMPELLER DIAMETER: 2.63”
- CORD LENGTH: 10'
- CORD SIZE: 18/3; Type SJTOW
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 185°F (85°C)
- DUTY RATING: Continuous
Barnes SP Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SP Series Submersible High Temperature Effluent Pump Product Resources
Download Barnes SP33HTX Series Submersible High Temperature Effluent Pump Specifications
Download Barnes SP33HTX Series Submersible High Temperature Effluent Pump Manual
