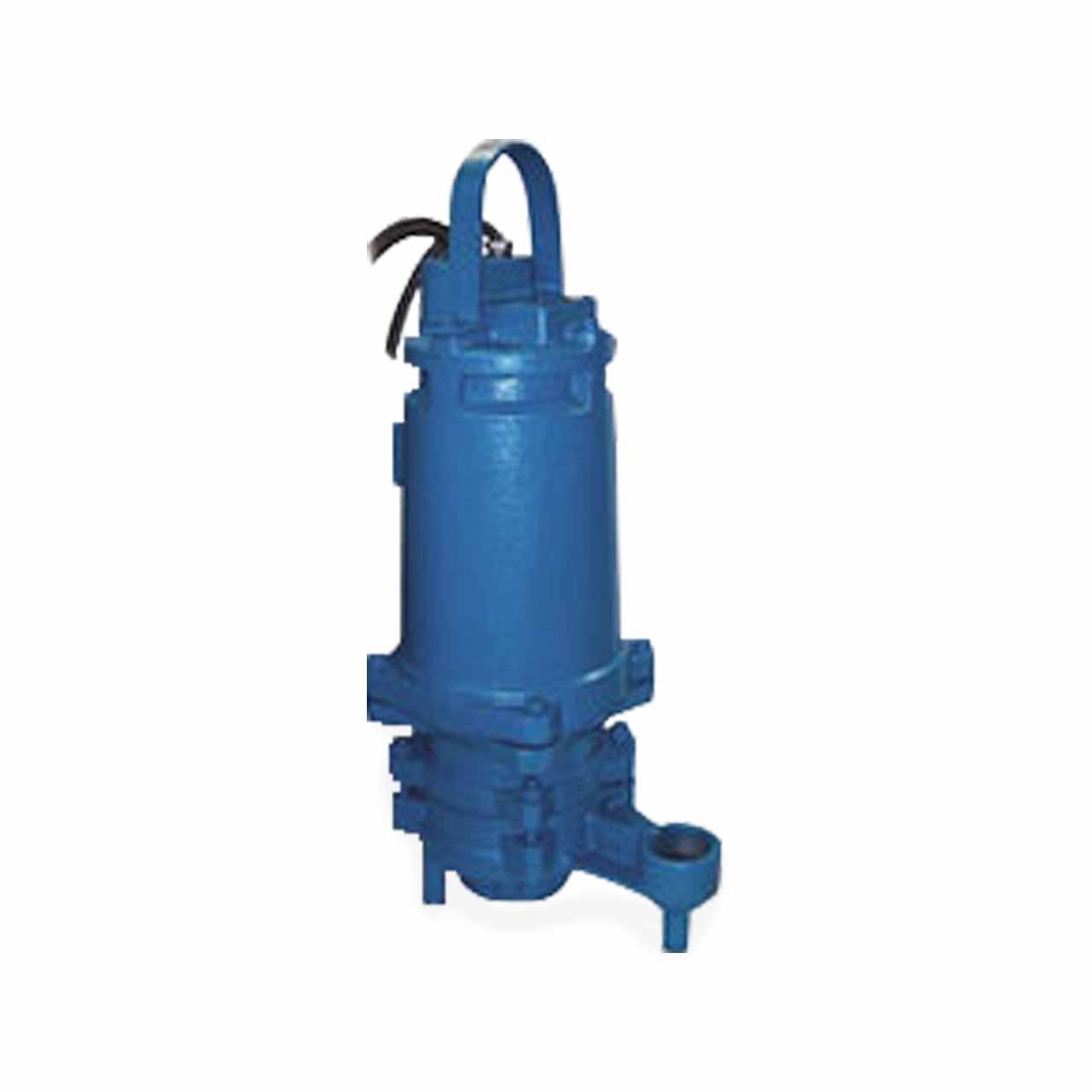

Barnes SGVH2022L Submersible High-Head Grinder Pump 2.0 HP 230V 1PH 30' Cord Manual
Barnes SGVH2022L Submersible High-Head Grinder Pump 2.0 HP 230V 1PH 30' Cord Manual
SKU : BAR110615
In Stock Quantity:0
:
Brand
:
Regular price
$4,671.15 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

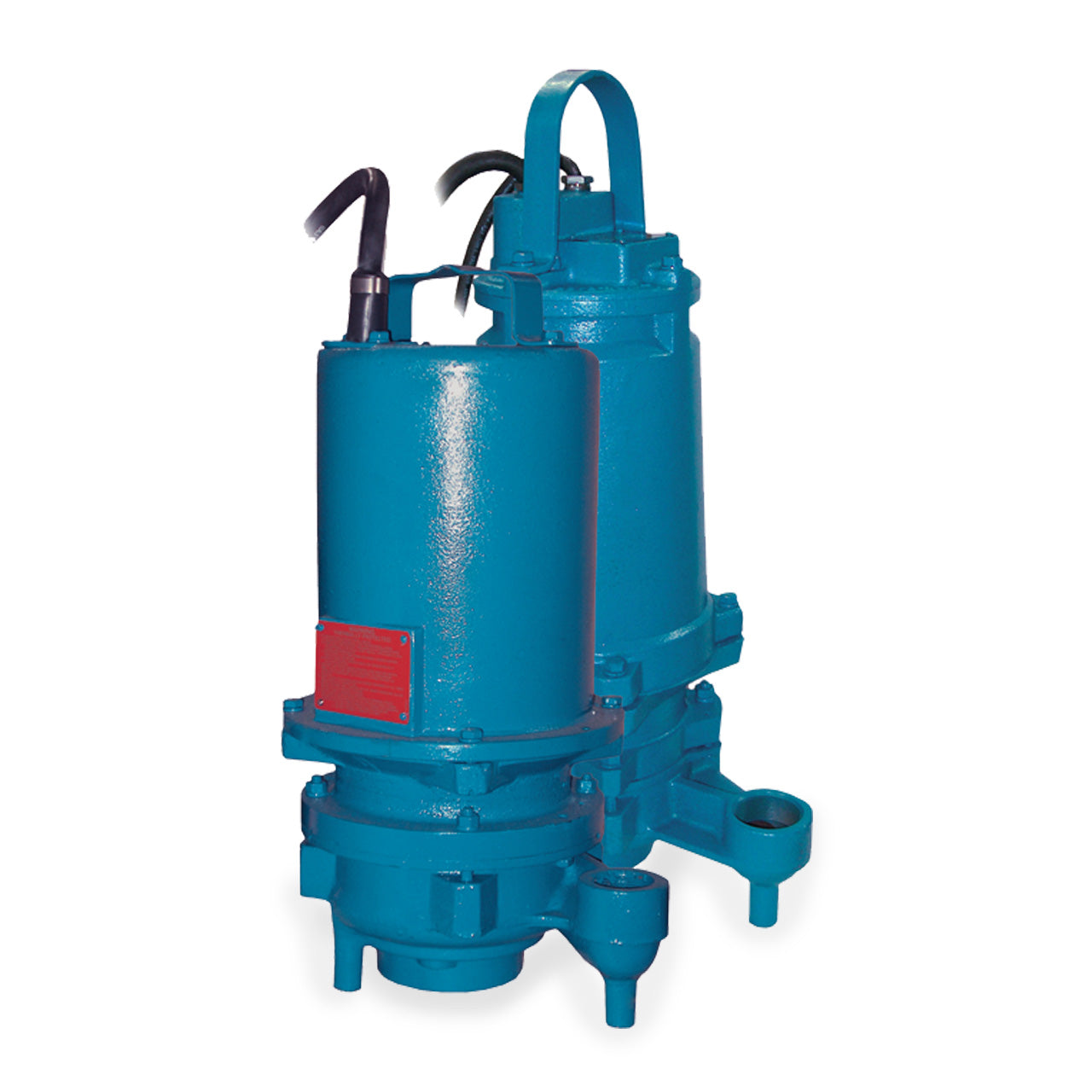

Barnes SGVH Series Submersible Grinder Pump
Barnes SGV Grinder Pumps provide a broad design flexibility with a choice of basin configurations. The UltraCAP II dry well level control system options and a variety of control panels and accessories allow system customization. Exclusive non-fouling controls eliminate routing, maintenance service calls.
Barnes SGVH Series Submersible Grinder Pump Application
The grinder pump is designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.
Barnes SGVH Series Submersible Grinder Pump Features
- Cast Iron Construction.
- NEMA L- Single Phase, Includes Overload Protection in the Motor.
- Single Phase has Capacitor Start/Capacitor Run. Requires Overload Protection to be Included in Control Panel, Requires Barnes Starter or Control Panel which Includes Capacitors, or Capacitor Pack.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Intermediate Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load. Lower Bearing: Sleeve, Oil Lubrication, Radial Load.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal Rotating Faces - Carbon & Stationary Faces - Ceramic Elastomer-Buna-N Hardware - 300 Series Stainless.
- Impeller is made of Cast Iron.
- 1-1/4" NPT Vertical, Bolt-On Flange Discharge.
- Temperature Rating: 160°F (71°C) Intermittent.
Specifications
Specifications
Barnes SGVH2022L Submersible Grinder Pump Specifications
- VOLTAGE: 1ø, 230V, 60 Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW: 15.0
- MOTOR TYPE: NEMA L-Single Phase Torque Curve. Oil-Filled. Squirrel Cage Induction
- RPM: 3450
- MAXIMUM HEAD: 127'
- MAXIMUM CAPACITY: 30 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/4" NPT, Vertical, Bolt On Flange
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
- CORD LENGTH: 30'
- CORD SIZE: 12/4, SOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C) Continuous
- CONTROL BOX REQUIRED
- MANUFACTURER PART NUMBER: 110615
Barnes SGVH Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SGVH Series Submersible Grinder Pump Product Resources
Download Barnes SGVF/SGVH Series Submersible Grinder Pump Specifications
Download Barnes SGVF/SGVH Series Submersible Grinder Pump Manual
