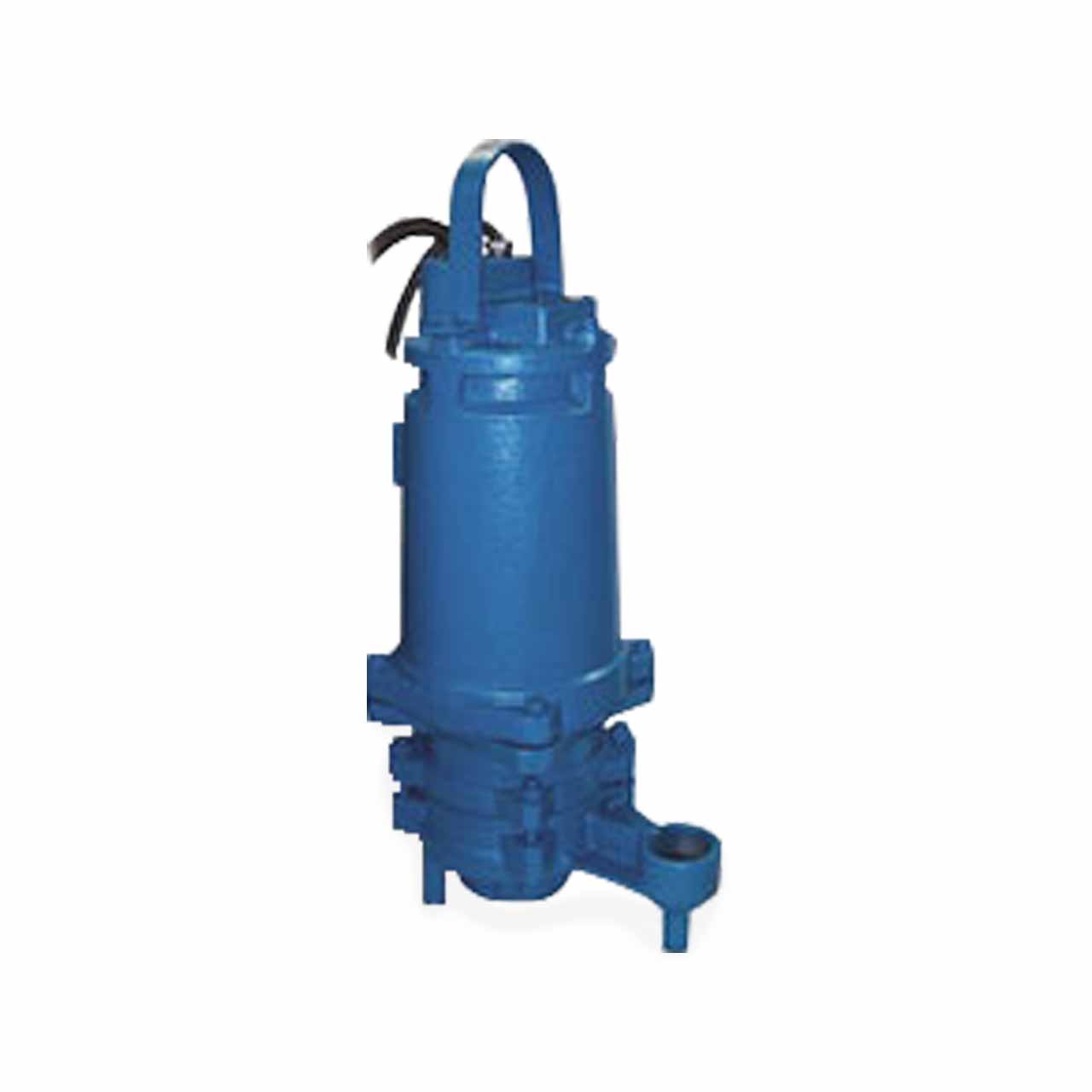

Barnes SGV5032L Submersible Grinder Pump 5.0 HP 230V 3PH 30' Cord Manual
Barnes SGV5032L Submersible Grinder Pump 5.0 HP 230V 3PH 30' Cord Manual
SKU : BAR111616
In Stock Quantity:0
:
Brand
:
Regular price
$8,181.57 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes SGV Series Submersible Grinder Pump
Barnes SGV Grinder Pumps provide a broad design flexibility with a choice of basin configurations. The UltraCAP II dry well level control system options and a variety of control panels and accessories allow system customization. Exclusive non-fouling controls eliminate routing, maintenance service calls.
Barnes SGV Series Submersible Grinder Pump Application
The grinder pump is designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.
Barnes SGV Series Submersible Grinder Pump Features
- Cast Iron Construction.
- NEMA B- Three Phase Torque Curve, Oil-Filled, Squirrel Cage Induction Motor.
- Three Phase Dual Voltage 230/460; Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Intermediate Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load. Lower Bearing: Sleeve, Oil Lubricated, Radial Load.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal Rotating Faces - Carbon & Stationary Faces - Ceramic Elastomer-Buna-N Hardware - 300 Series Stainless.
- Impeller is made of Cast Iron.
- 2.0" NPT Vertical Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes SGV5032L Submersible Grinder Pump Specifications
- VOLTAGE: 3ø, 230V, 60 Hz
- HORSEPOWER: 5.0 HP
- AMP DRAW: 21.9
- MOTOR TYPE: NEMA B-Three Phase Torque Curve. Oil-Filled. Squirrel Cage Induction
- RPM: 3450
- MAXIMUM HEAD: 150'
- MAXIMUM CAPACITY: 115 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT, Vertical
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
- CORD LENGTH: 30'
- CORD SIZE: 10/4, SOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C) Continuous
- CONTROL BOX REQUIRED
- MANUFACTURER PART NUMBER: 111616
Barnes SGV Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SGV Series Submersible Grinder Pump Product Resources
Download Barnes SGV Series Submersible Grinder Pump Specifications
