Discontinued - Barnes

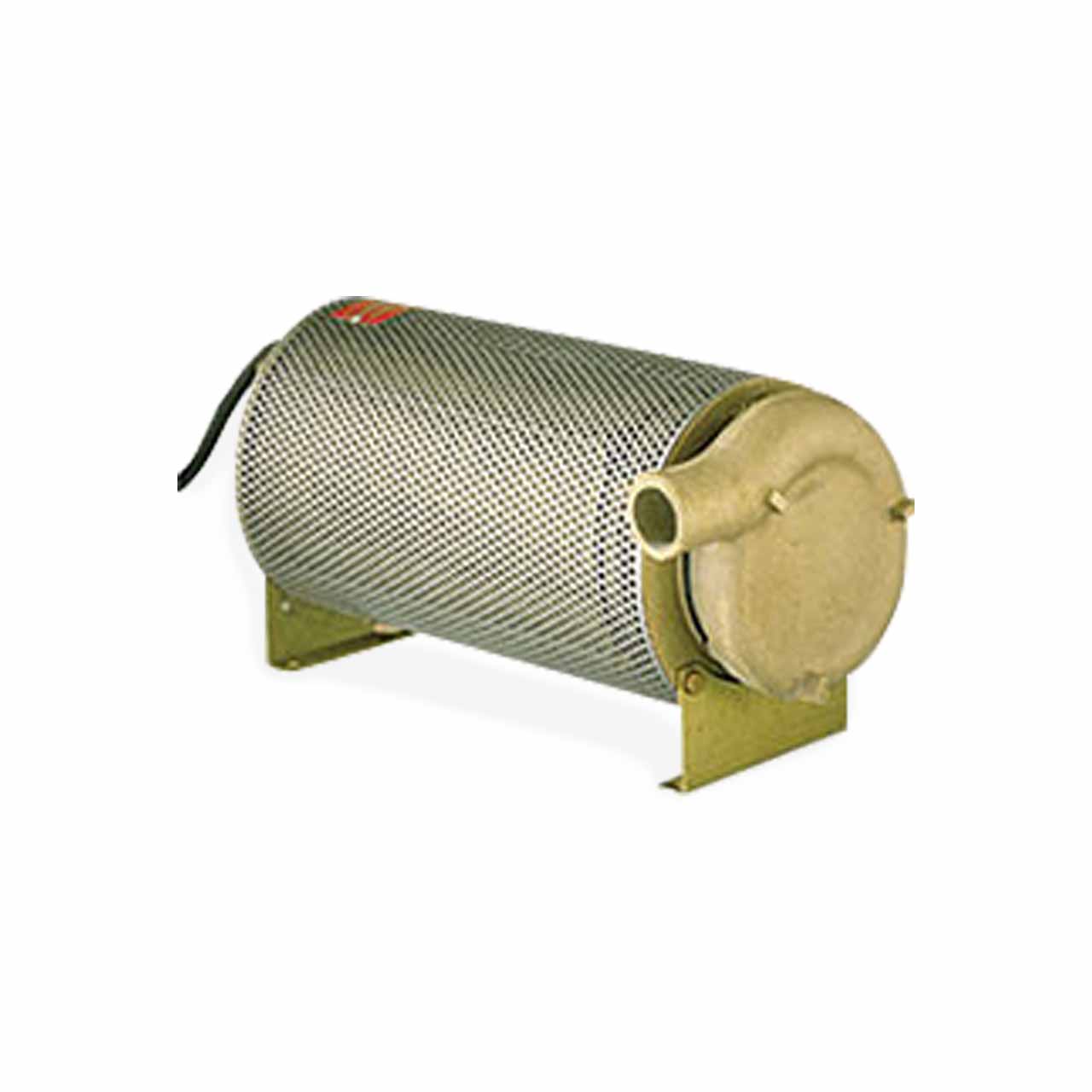

Barnes SFU71 Submersible Fountain Pump

Barnes UL listed fountain pumps are the market leader in decorative water applications. All bronze and stainless steel construction, 1/3 to 1 HP units available in both 115V and 230V single phase.

Barnes SFU71 Submersible Fountain Pump Applications

These pumps are specifically designed for use in dramatic, decorative water displays.

Barnes SFU71 Submersible Fountain Pump Features and Benefits

• Stainless Steel Housing Tube w/Brass ASTM A4, 85-5-5-5 Ends.
• Single Phase Permanent Split Capacitor Includes Overload Protection in Motor.
• NEMA L, Oil Filled, Squirrel Cage Induction Motor.
• Motor End Bearing: Single Row, Ball, Oil Lubricated.
• Pump End Bearing: Sleeve, Oil Lubricated.
• Impeller is Brass ASTM A4, 85-5-5-5.
• Seal is Single Mechanical, Carbon/Ceramic/Buna-N.
• 1.75" (45mm) Hose Connection, 90° Rotation Discharge.
• Temperature Rating: 145°F (63°C), Continuous.

Barnes SFU71 Submersible Fountain Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450 RPM
• MAXIMUM HEAD: 50'
• MAXIMUM CAPACITY: 95 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1.75" Hose Connection
• IMPELLER TYPE: 6 Vane Open
• CORD LENGTH: 12'
• CORD SIZE: 16/3, Type: SOW
• BODY CONSTRUCTION: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 145°F (63°C)
• DUTY RATING: Continuous

Barnes SFU71 Submersible Fountain Pump Performance Curves
