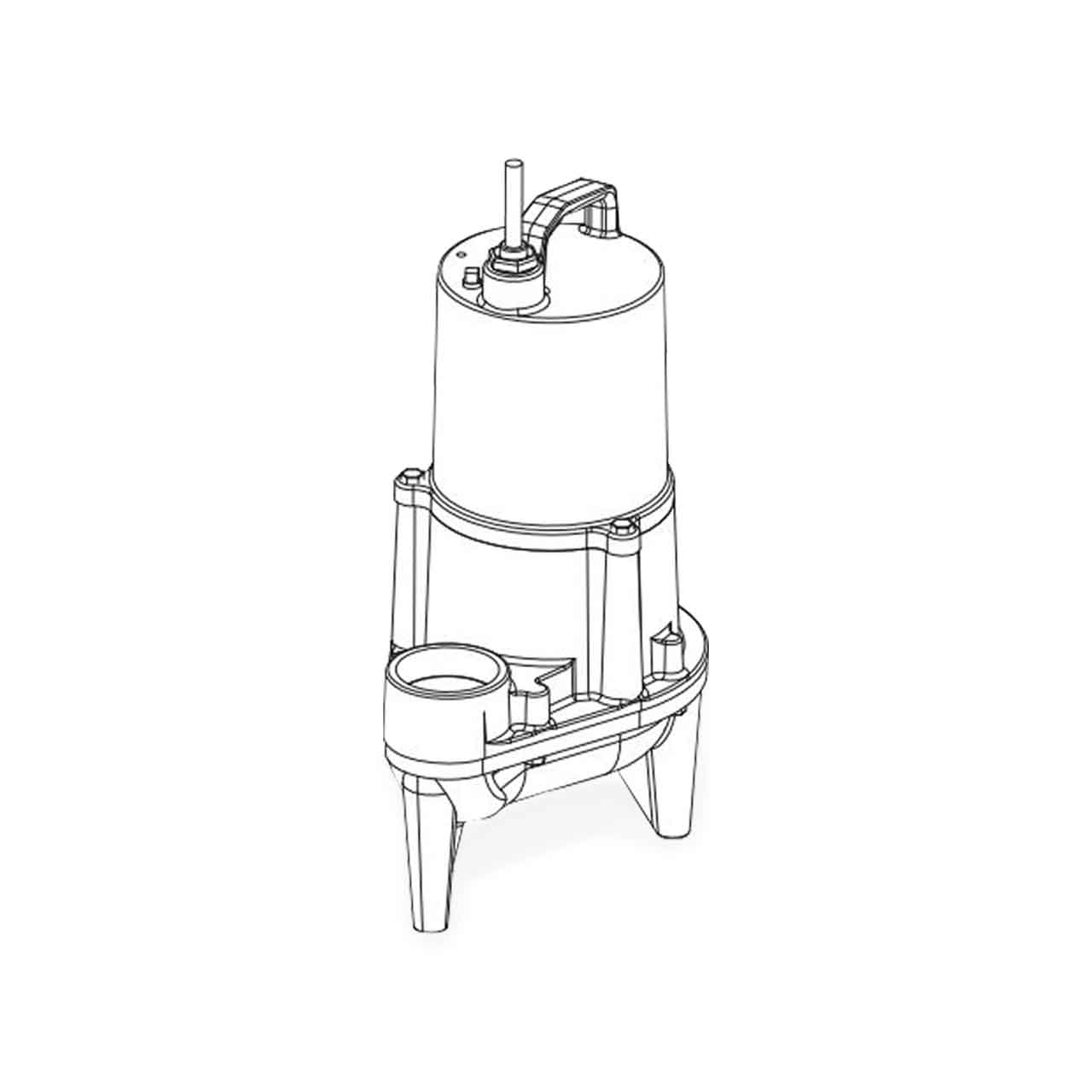

Barnes SEV412 Series Submersible Sewage Ejector Pump

Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.

Barnes SEV412 Series Submersible Sewage Ejector Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes SEV412 Series Submersible Sewage Ejector Pump Features

• Cast Iron Construction.
• Oil Filled, Class B Motor.
• Single Phase Permanent Split Capacitor Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
• Single Mechanical. Oil Filled Reservoir Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is Cast Iron.
• 2" NPT, Female, Vertical Discharge.
• Temperature Rating: 77°F (25°C) Continuous.

Barnes SEV412AT Submersible Sewage Ejector Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 10.5
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 25'
• MAXIMUM CAPACITY: 71 GPM
• SWITCH TYPE: Wide Angle, Mechanical, 20ft (6m) Cord Pump Mounted
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
• IMPELLER TYPE: Multi-Vane, Vortex, Cast Iron
• IMPELLER DIAMETER: 3.12
• CORD LENGTH: 20'
• CORD SIZE: 14/3; Type: SJTOW
• BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 77°F (25°C)
• DUTY RATING: Continuous

Barnes SEV412 Series Submersible Sewage Ejector Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes SEV412 Series Submersible Sewage Ejector Pump Product Resources

Download Barnes SEV412 Series Submersible Sewage Ejector Pump Specifications

Download Barnes SEV412 Series Submersible Sewage Ejector Pump Manual
