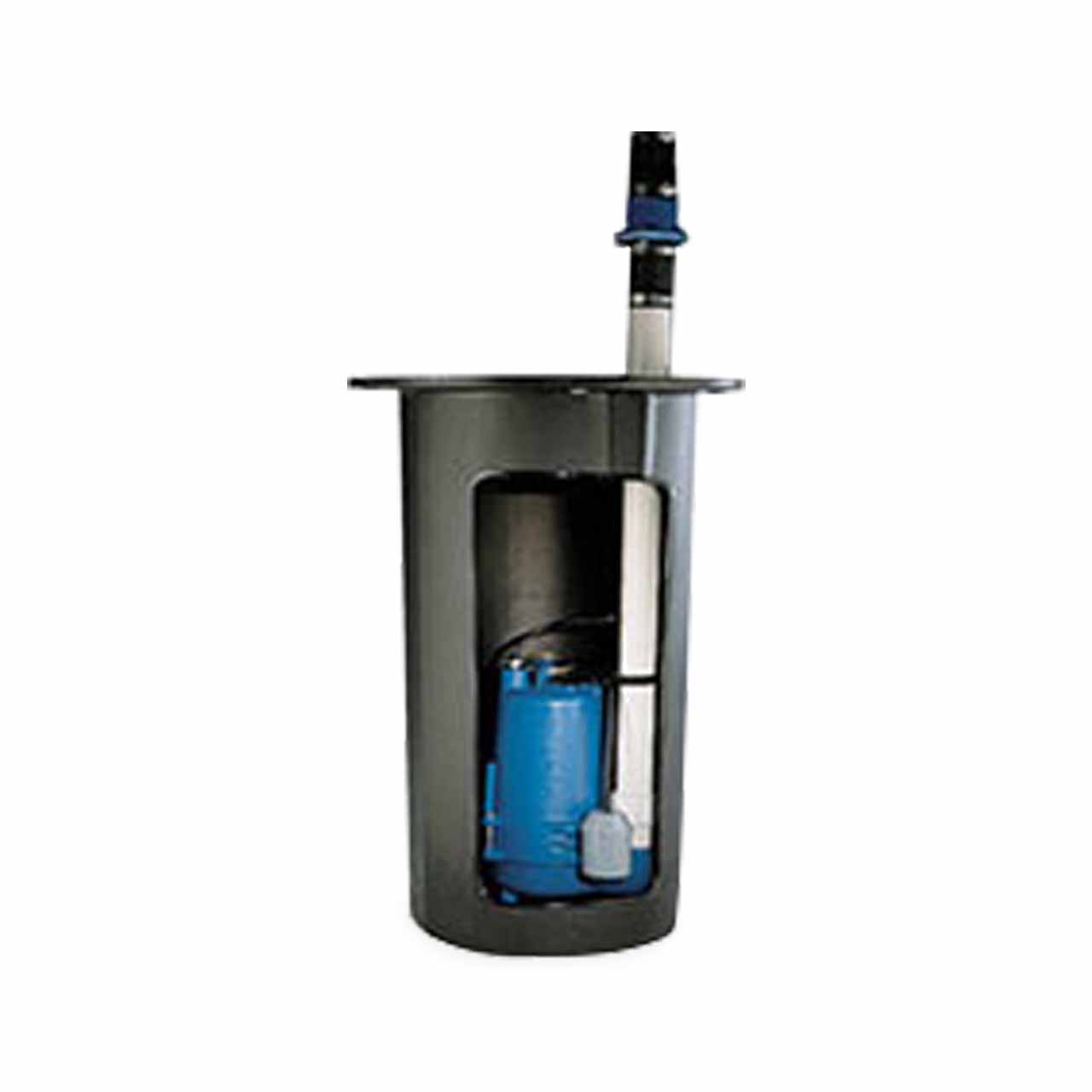

Barnes SEV412ASP 30 Gallon Sewage Packaged System Pre-Assembled 0.5 HP 115V 1PH

Barnes SEV412ASP 30 Gallon Sewage Packaged System Pre-Assembled 0.5 HP 115V 1PH

Discontinued or no longer available.

SKU : BRN102160C

In Stock Quantity:0

:
Brand : Barnes
Shipping calculated at checkout.

Description


Discontinued - Pre-Assembled Packages

Barnes SE412ASP 30-Gallon Sewage Packaged System Pre-Assembled

Barnes Professional Plumbing Packaged Sewage Pump Systems are designed to handle wastes from lavatories, laundry, tubs, floor drains, water closets, ect.. and will push the water from below ground up to where normal drainage will handle it. Complete packages with basins and controls are available in many different sizes and configurations.

Barnes SEV412ASP 30-Gallon Sewage Packaged System Pre-Assembled Applications

Simplex Systems (one pump) are good for residences and small industrial sewage or sump applications. They are designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, ect.. and will push the water from below ground up to where the normal drainage will handle it.

Barnes SEV412ASP 30-Gallon Sewage Packaged System Pre-Assembled Features

  • SE411A or SEV412A: 60 Hz Heavy Duty Sewage Pump.
  • Level Control: Mechanical Switch Molded Inside of a Waterproof Float. Single Control Turns Pump On and Off Automatically.
  • 1830 Polyethylene Basin: 18" (457mm) Dia. x 30" (762mm) Deep, with 4" (102mm) Inlet Hole.
  • 4" (102mm) Flexible Pipe Fitting Inlet: Super-Tuff Sanoprene Construction.
  • 18S22 Steel Cover: With Black Powder Coating, 2" (51mm) Vent and 2" (51mm) Discharge and Cord Openings.
  • 2" (51mm) Vertical Check Valve: With Hose Adaptors and Clamps.
  • Schedule 40 Discharge Pipe, Cover Gasket, Cover Hardware, Cord Grommet, Discharge and Vent Grommets also Included.



Specifications

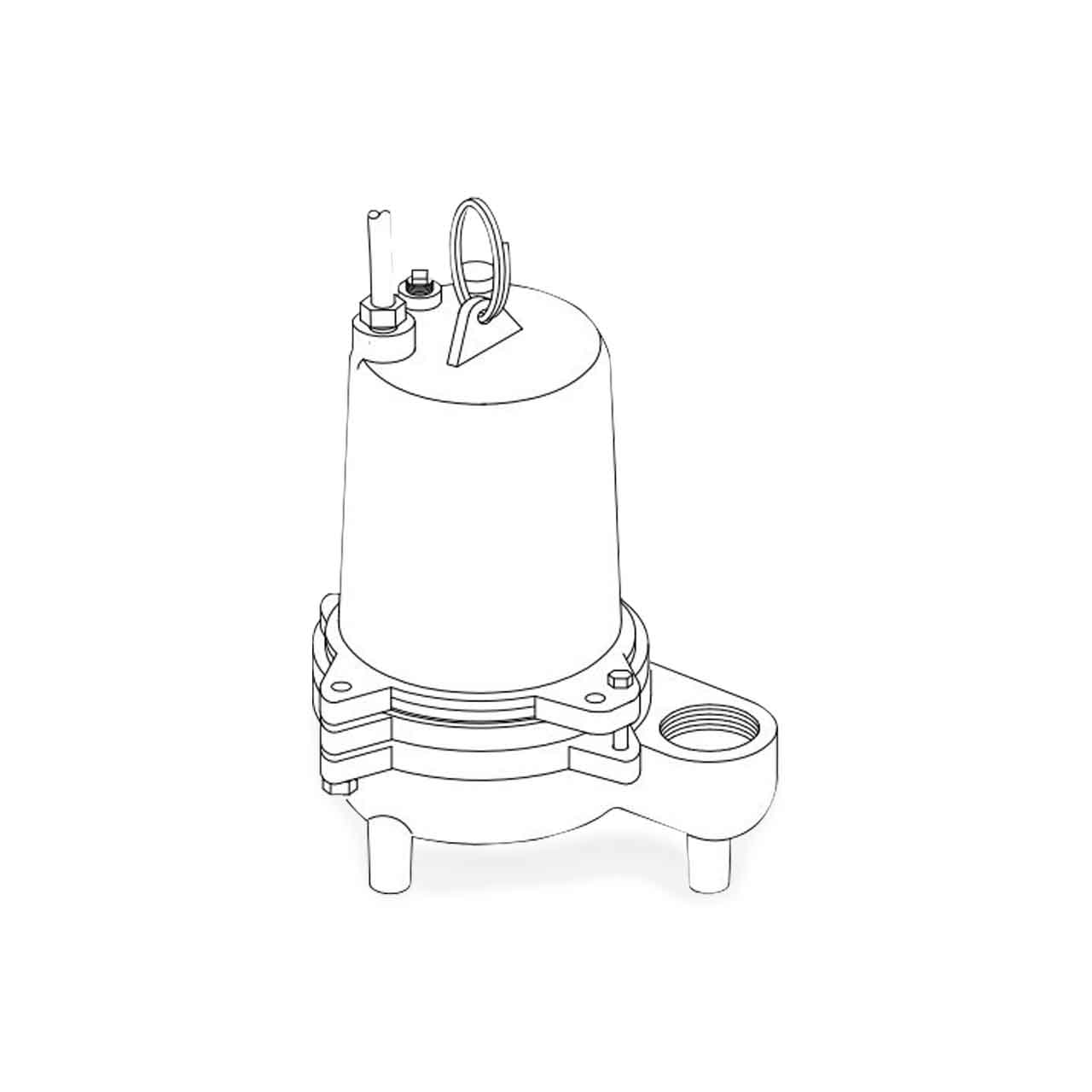

Barnes SEV412A Submersible Sewage Ejector Pump Specifications

  • BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
  • HORSEPOWER: 0.5 HP
  • VOLTAGE: 230 V
  • PHASE: 1 Ph
  • HERTZ: 60 Hz
  • RPM: 3450 RPM
  • FULL LOAD AMPS: 10.5
  • DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
  • SOLIDS HANDLING: 2.0" Spherical Solids
  • CORD LENGTH: 15'
  • CORD SIZE & TYPE: 14/3, SJTOW
  • MAX HEAD: 25'
  • MAX FLOW RATE: 75 GPM
  • SWITCH TYPE: Wide Angle, Mechanical, 20ft (6m) Cord Pipe Mounted
  • IMPELLER: Multi Vane, Vortex

Barnes SEV412A Series Submersible Sewage Ejector Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes SEV412ASP 30-Gallon Sewage Packaged System Pre-Assembled Resources


Download Barnes SEV412ASP 30-Gallon Sewage Packaged System Pre-Assembled Specifications

Download Barnes SEV412A Series Submersible Sewage Ejector Pump Specifications

Download Barnes SEV412 Series Submersible Sewage Ejector Pump Manual
