Barnes SEC Series 4SEC3094A Submersible Cutter Pump 3.0 HP 208/230V 3PH Manual
Barnes SEC Series 4SEC3094A Submersible Cutter Pump 3.0 HP 208/230V 3PH Manual
SKU : BAR148314
In Stock Quantity:0
:
Brand
:
Regular price
$3,441.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

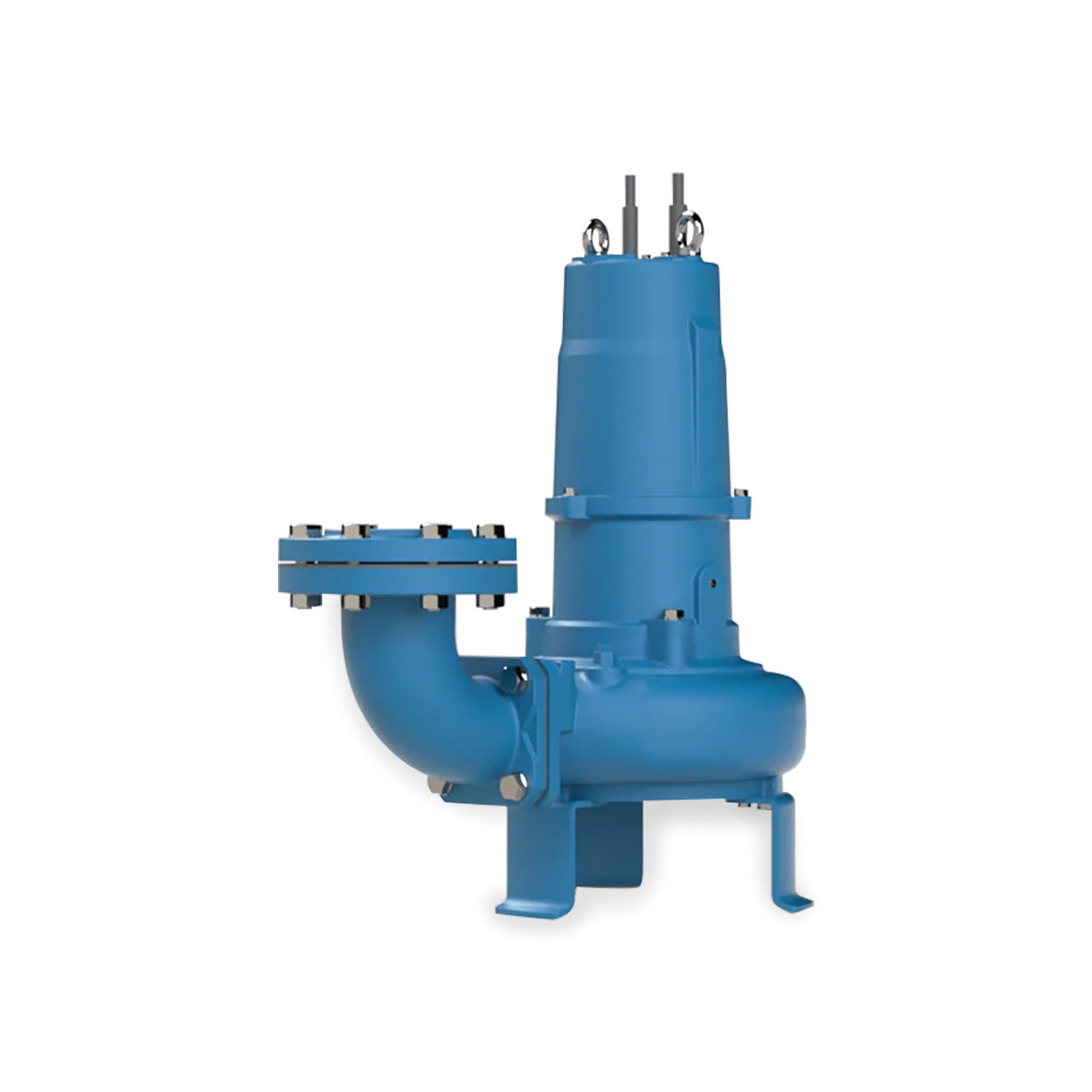

Barnes SEC Series Submersible Cutter Pump
The Barnes SEC Cutter Pump is designed to solve clogging problems in municipal, industrial and commercial applications with light solids content.
The pump includes everything you need to install the pump into multiple installations. Each pump is equipped with a horizontal JIS80 discharge, and sold with a 3" or 4" vertical discharge elbow AND our JIS80 to 4" ANSI flange adapter.
Barnes SEC Series Submersible Cutter Pump Features
- Rugged Pump Design, Constructed with ASTM A-48 Class 30 Cast Iron.
- Removable Stand and Discharge Accessories to Fit Perfectly in Free-Standing Installations or on a Variety of Guide Rail Systems.
- Air Filled Motor Protected with Integral Moisture and Temperature Sensors
- Steel Cutting Plate and Impeller Blade Provide Superior Cutting
Specifications
Specifications
Barnes 4SEC3094A Submersible Cutter Pump Specifications
- VOLTAGE: 3ø, 208/230V, 60 Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW: 8.9/8.8
- MOTOR TYPE: NEMA B, Air-Filled, Squirrel Cage Induction Insulation; Class F
- RPM: 1750
- MAXIMUM HEAD: 45'
- MAXIMUM CAPACITY: 340 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" NPT
- IMPELLER TYPE: Semi-Open Mono-Vane, Dynamically Balanced ISO G6.3; Cast Iron A-48, Class 30
- CORD LENGTH: 39'
- CORD SIZE: 14/4 AWG; Type: SOW, UL Listed Cable
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C) Continuous
- MANUFACTURER PART NUMBER: 148314
Barnes SEC Series Submersible Cutter Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SEC Series Submersible Cutter Pump Product Resources
Download Barnes SEC Series Submersible Cutter Pump Flyer
