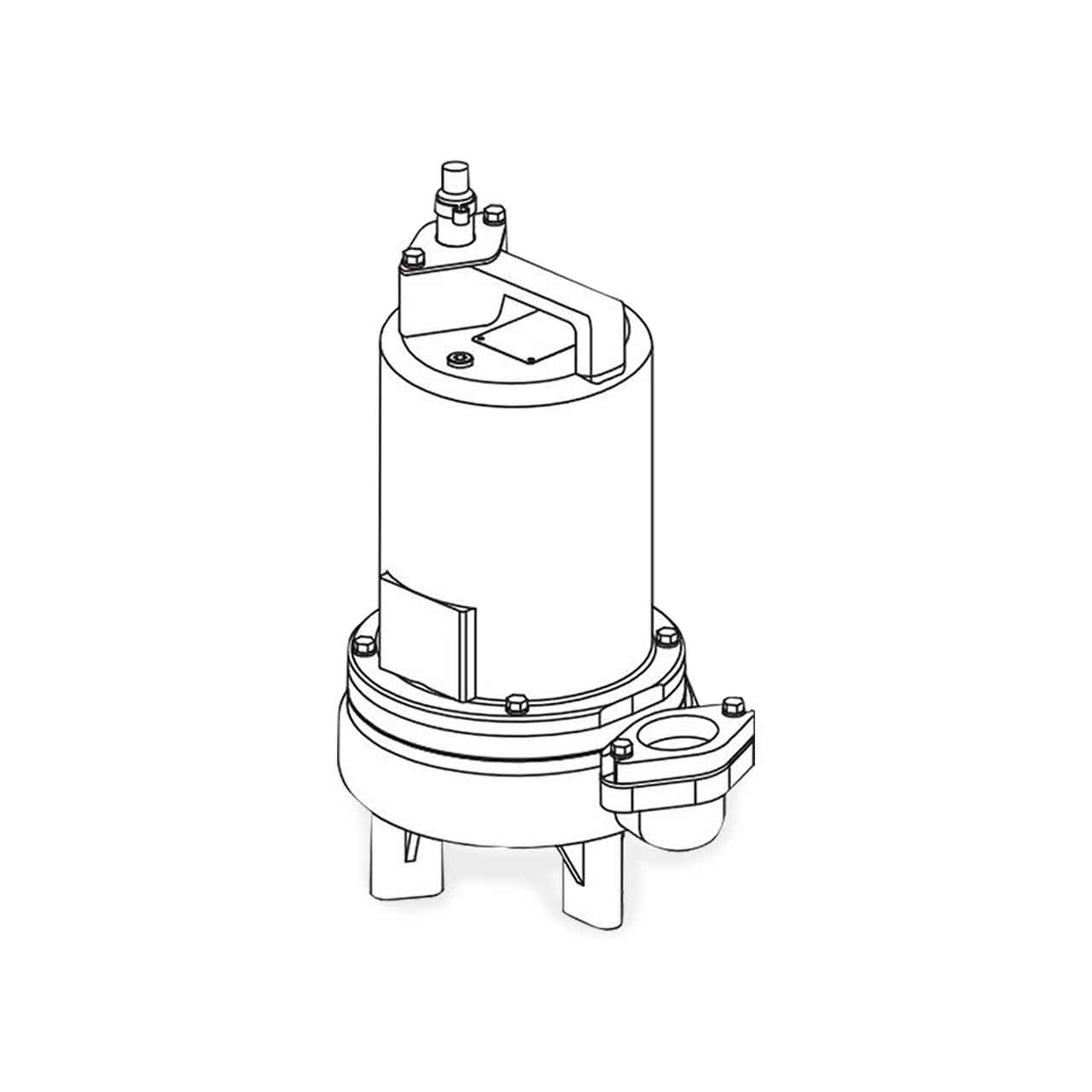

Barnes SE-L Series Submersible Sewage Ejector Pump

Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.

Barnes SE-L Series Submersible Sewage Ejector Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes SE-L Series Submersible Sewage Ejector Pump Features

• Cast Iron Construction.
• NEMA L-Single Phase, Oil Filled, Squirrel Cage Induction.
• Single Phase Permanent Split Capacitor Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
• Single Mechanical Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is Cast Iron.
• 2" NPT, Female, Vertical Discharge, Bolt-On Flange.
• Temperature Rating: 104°F (40°C) Continuous.

Barnes SE774L Submersible Sewage Ejector Pump Specifications

• VOLTAGE: 1ø, 200/230V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 7.4/7.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1750
• MAXIMUM HEAD: 30'
• MAXIMUM CAPACITY: 180 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical, Bolt-On Flange
• MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
• IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 5.62
• CORD LENGTH: 15'
• CORD SIZE: 14/3; Type: SOW
• BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes SE-L Series Submersible Sewage Ejector Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes SE-L Series Submersible Sewage Ejector Pump Product Resources

Download Barnes SE-L Series Submersible Sewage Ejector Pump Specifications

Download Barnes SE-L Series Submersible Sewage Ejector Pump Manual
