Barnes SE421AU Submersible Sewage Ejector Pump 0.4 HP 230V 1PH 15' Cord Automatic
Barnes SE421AU Submersible Sewage Ejector Pump 0.4 HP 230V 1PH 15' Cord Automatic
SKU : BAR096751
In Stock Quantity:0
:
Brand
:
Regular price
$966.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

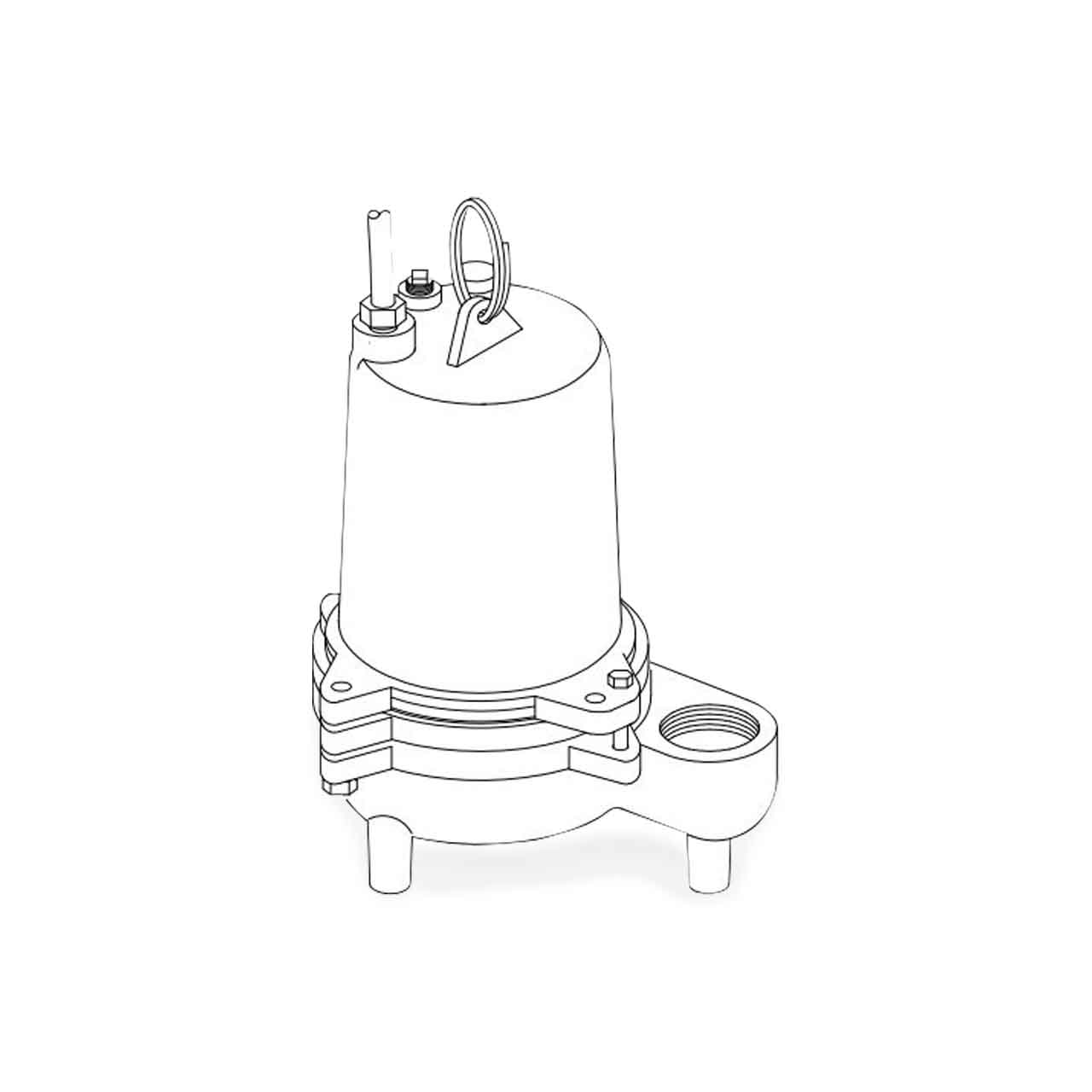

Barnes SE-421 Series Submersible Sewage Ejector Pump
Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.
Barnes SE-421 Series Submersible Sewage Ejector Pump Applications
Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.
Barnes SE-421 Series Submersible Sewage Ejector Pump Features
- Cast Iron Construction.
- NEMA L Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Single Phase Permanent Split Capacitor Includes Overload Protection in Motor.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
- Single Mechanical. Oil Filled Reservoir, Secondary Exclusion Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is Cast Iron ASTM A-48, Class 30.
- 2" NPT, Female, Vertical Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes SE421AU Submersible Sewage Ejector Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 6.2
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 26'
- MAXIMUM CAPACITY: 132.5 GPM
- SWITCH TYPE: Wide Angle, Polypropylene, Mechanical, N/O, Integral to Pump. ON & OFF Points are Adjustable
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
- IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 5.44
- CORD LENGTH: 15'
- CORD SIZE: 14/3; Type: SJTOW
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 77°F (25C)
- DUTY RATING: Continuous
Barnes SE-421 Series Submersible Sewage Ejector Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes SE-421 Series Submersible Sewage Ejector Pump Product Resources
Download Barnes SE-421 Series Submersible Sewage Ejector Pump Specifications
Download Barnes SE-421 Series Submersible Sewage Ejector Pump Manual
