Barnes RV101 Rival Grinder Pump 1.0 HP 115V 1PH 20' Cord Manual
Barnes RV101 Rival Grinder Pump 1.0 HP 115V 1PH 20' Cord Manual
SKU : BAR145469
In Stock Quantity:5
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

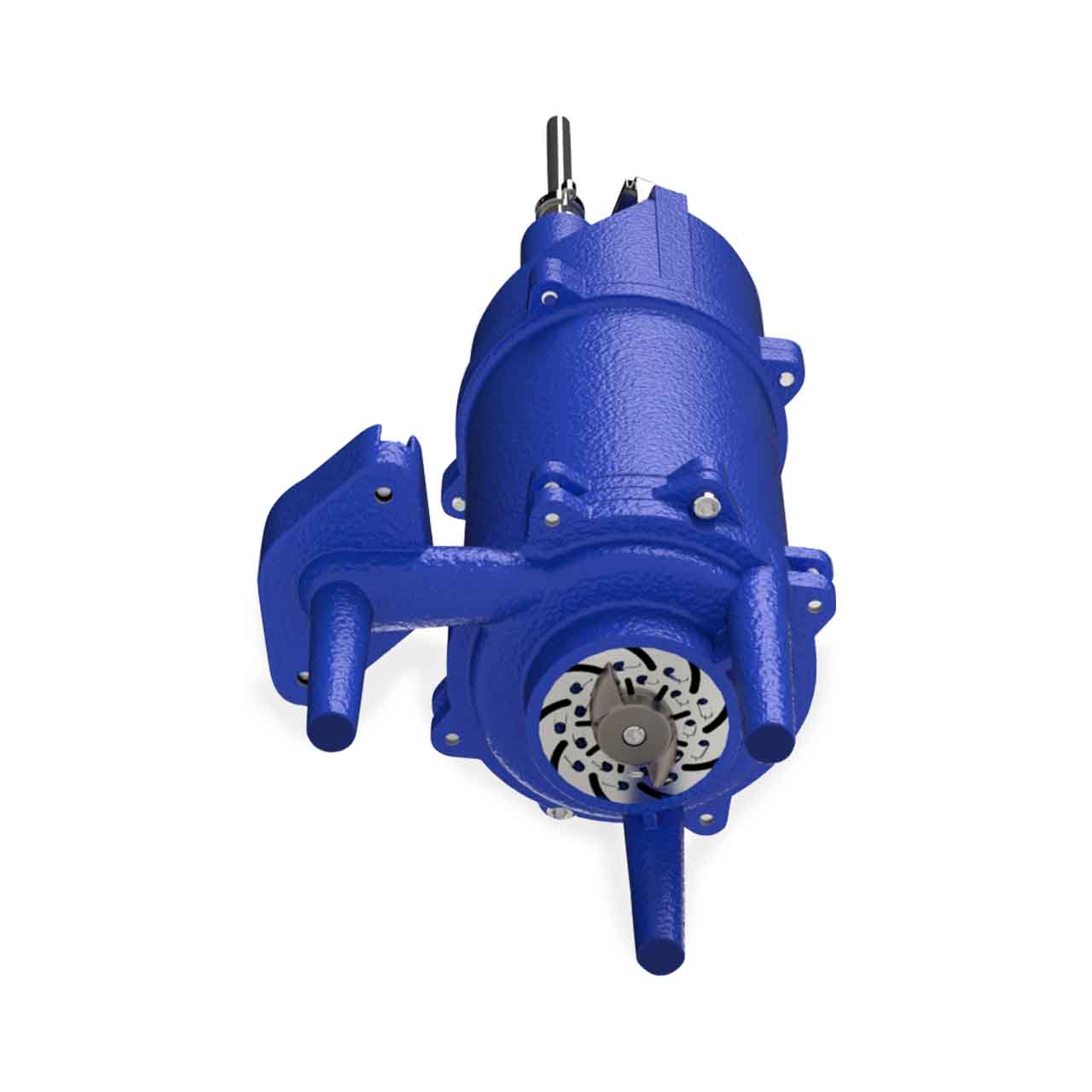

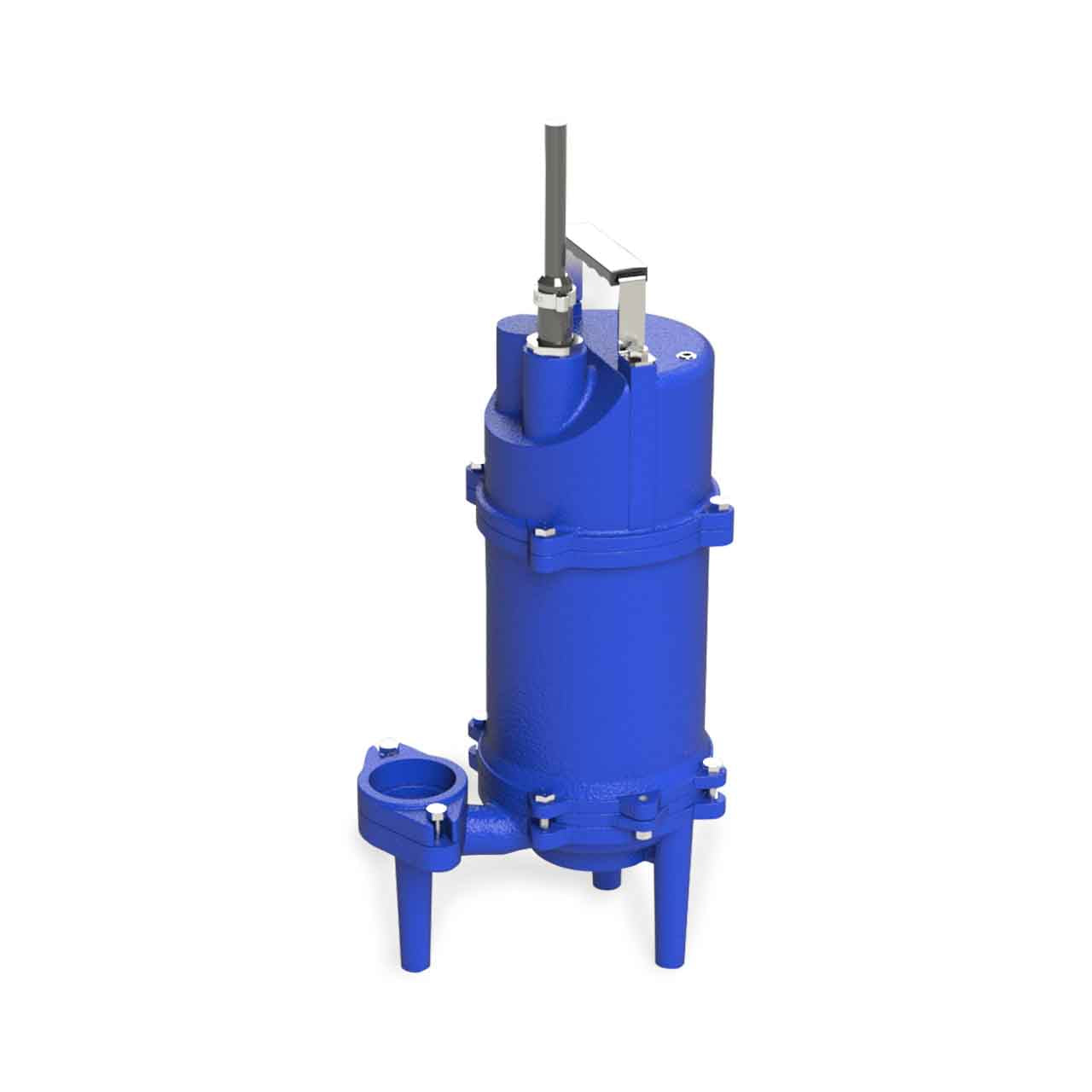

Barnes Rival Submersible Grinder Pump
The Barnes Rival Grinder Pumps is a 1 HP grinder pump engineered to vigorously reduce solids in residential sewage applications where basic sewage pumps continue to underperform. The rival utilizes an axial flow grinding mechanism that provides superior clog resistance versus standard sewage ejectors. The Rival grinder pump is 115V compatible with the ability to retrofit in competitive basin packages.
Barnes Rival Submersible Grinder Pump Features
- Axial Cutter: Provides Superior Non-Clogging Versus Radial Designs.
- Motor Options: 115V and 230V.
- Retrofit: Designed for Drop in Retrofit to Replace any Existing Small Horsepower Residential Sewage Pump and other 1 HP Grinder Pumps.
- Float: Available in Manual and Automatic Designs
- Non-Overloading: Built to Handle Varying Pressures without Wear.
Specifications
Specifications
Barnes RV101 Rival Grinder Pump Specifications
- VOLTAGE: 1ø, 115V, 60 Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW: 12
- MOTOR TYPE: NEMA L-Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction (includes overload protection in the motor.)
- RPM: 3450
- MAXIMUM HEAD: 55'
- MAXIMUM CAPACITY: 43 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- IMPELLER TYPE: Semi-Open, with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3, Bronze
- CORD LENGTH: 20' Std Cord
- CORD SIZE: 14/3, Type: SJTOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- MANUFACTURER PART NUMBER: 145469
Barnes Rival Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes Rival Grinder Pump Product Resources
Download Barnes Rival Grinder Pump Sales Sheet
Download Barnes Rival Grinder Pump Specifications
Download Barnes Rival Grinder Pump Manual
