Barnes PGPP2022 Submersible Grinder Pump 2.0 HP 230V 1PH 20' Cord Manual
Barnes PGPP2022 Submersible Grinder Pump 2.0 HP 230V 1PH 20' Cord Manual
SKU : BAR110646
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Barnes

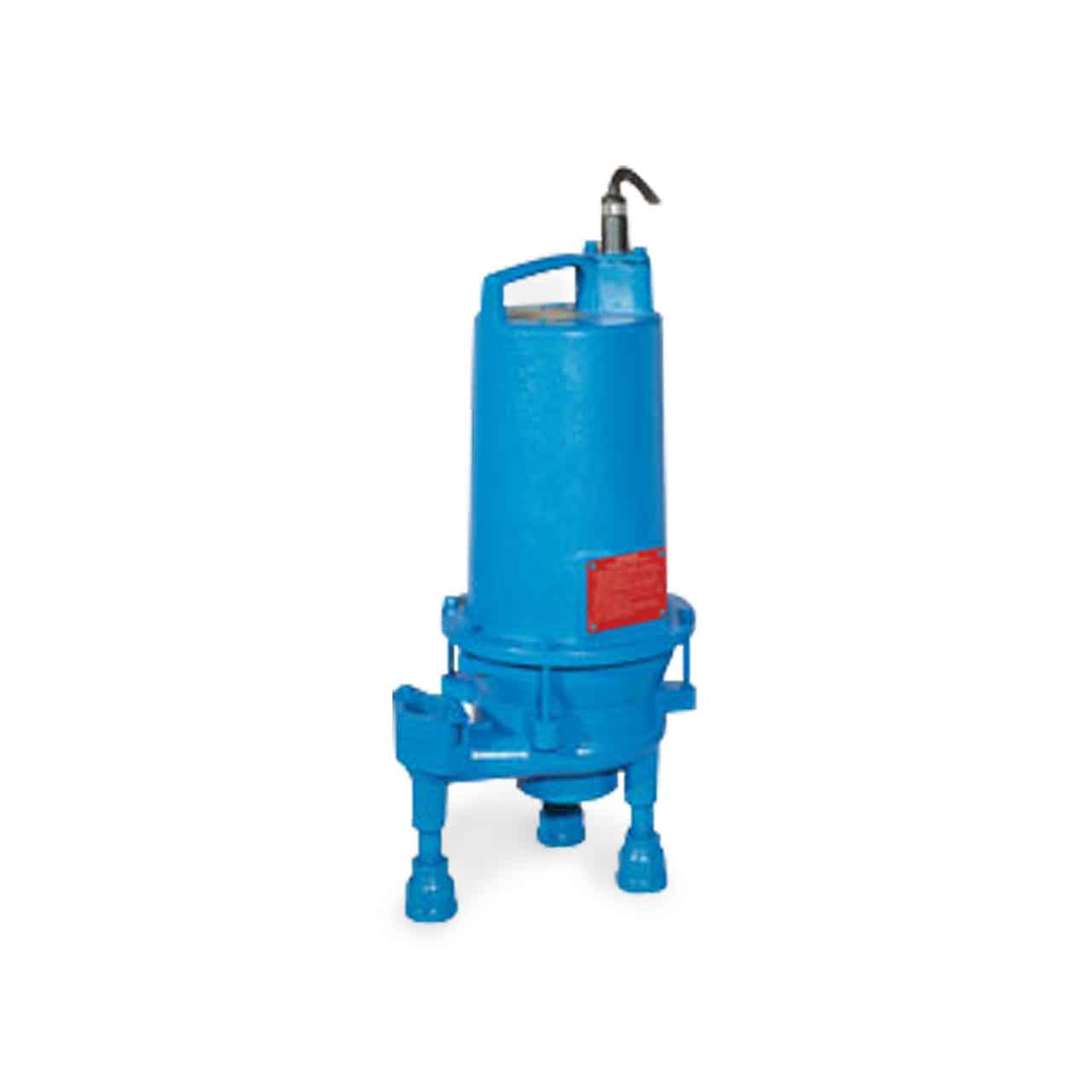

Barnes PGPP Series Submersible Grinder Pump
The PGPP Series Grinder Pump is Designed to Reduce Domestic, Commercial, Institutional and Light Industrial Sewage to a Finely Ground Slurry.
Barnes PGPP Series Submersible Grinder Pump Features
- Cast Iron Construction.
- NEMA L- Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction Motor.
- Single Phase has Capacitor Start/Capacitor Run.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
- Single Mechanical.
- Seal is Silicon-Carbide/Silicon-Carbide/Buna-N Hardware - 300 Series Stainless.
- Impeller is made of Cast Iron ASTM A-48, Class 30.
- "Slicerator" Cutting Mechanism to Increase Torque for Preventing Clogging.
- 1-1/4" NPT Female, Vertical, Bolt-On Flange.
- Temperature Rating: 160°F (71°C) Intermittent.
Specifications
Specifications
Barnes PGPP2022 Submersible Grinder Pump Specifications
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- HORSEPOWER: 2.0 HP
- VOLTAGE: 230 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 15.0
- DISCHARGE PIPE SIZE: 1-1/4" NPT, Female, Vertical, Bolt-On Flange
- CORD LENGTH: 20'
- CORD SIZE & TYPE: 14/3, SOW
- MAX HEAD: 100'
- MAX FLOW RATE: 58 GPM
- SWITCH TYPE: Manual
- IMPELLER: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
- MANUFACTURER PART NUMBER: 110646
Barnes PGPP Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes PGPP Series Submersible Grinder Pump Product Resources
Download Barnes PGPP Series Submersible Grinder Pump Specifications
