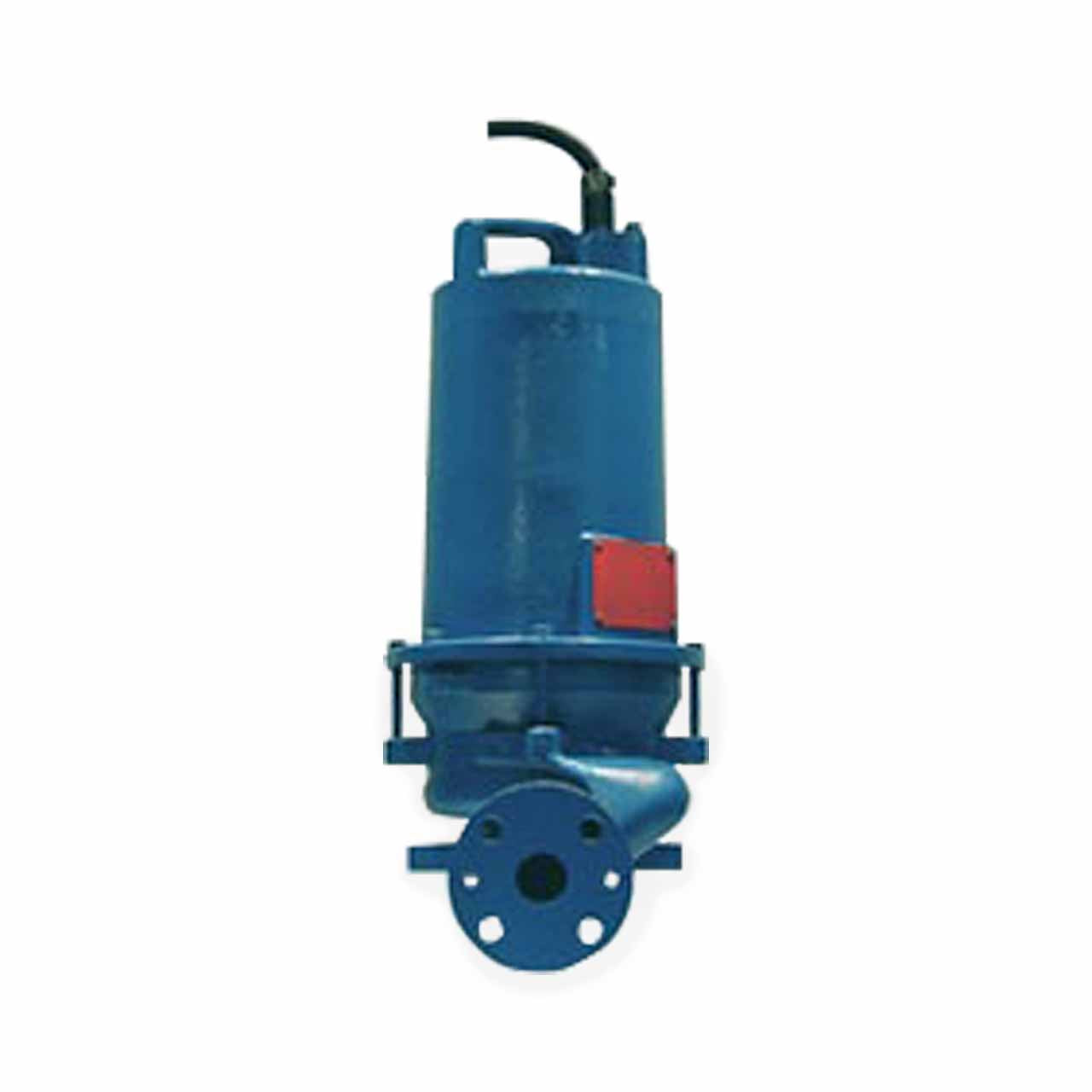

Barnes OGVF OmniGRIND Submersible Grinder Pump

Barnes OGV Grinder Pumps with the exclusive Slicerator technology are designed to reduce sewage particles to a finely ground slurry.

Barnes OGVF OmniGRIND Submersible Grinder Pump Applications

The Grinder Pump is designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.

Barnes OGVF OmniGRIND Submersible Grinder Pump Features

• Cast Iron Construction.
• NEMA L- Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction Motor.
• Single Phase has Capacitor Start/Capacitor Run.
• Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
• Single Mechanical Seal.
• Seal Rotating Faces - Silicone-Carbide, Stationary Faces - Silicone Carbide Elastomer - Buna-N Hardware - 300 Series Stainless.
• Impeller is made of Cast Iron.
• 1-1/4" NPT Female, Vertical, Bolt-On Flange.
• Temperature Rating: 160°F (71°C) Intermittent.

Barnes OGVF2022L Submersible Grinder Pump Specifications

• VOLTAGE: 1ø, 230V, 60 Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW: 15.0
• MOTOR TYPE: NEMA L-Single Phase Torque Curve. Oil-Filled. Squirrel Cage Induction
• RPM: 3450
• MAXIMUM HEAD: 101'
• MAXIMUM CAPACITY: 58 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 1-1/4" NPT, Female, Vertical, Bolt-On Flange
• IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
• CORD LENGTH: 30'
• CORD SIZE: 12/5 Type: SOW
• BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 160°F (71°C) Intermittent
• CONTROL BOX REQUIRED
• MANUFACTURER PART NUMBER: 110651

Barnes OGVF OmniGRIND Submersible Grinder Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes OGVF/OGVH OmniGRIND Submersible Grinder Pump Product Resources

Download Barnes OGVF/OGVH OmniGRIND Submersible Grinder Pump Specifications

Download Barnes OGVF/OGVH OmniGRIND Submersible Grinder Pump Manual
