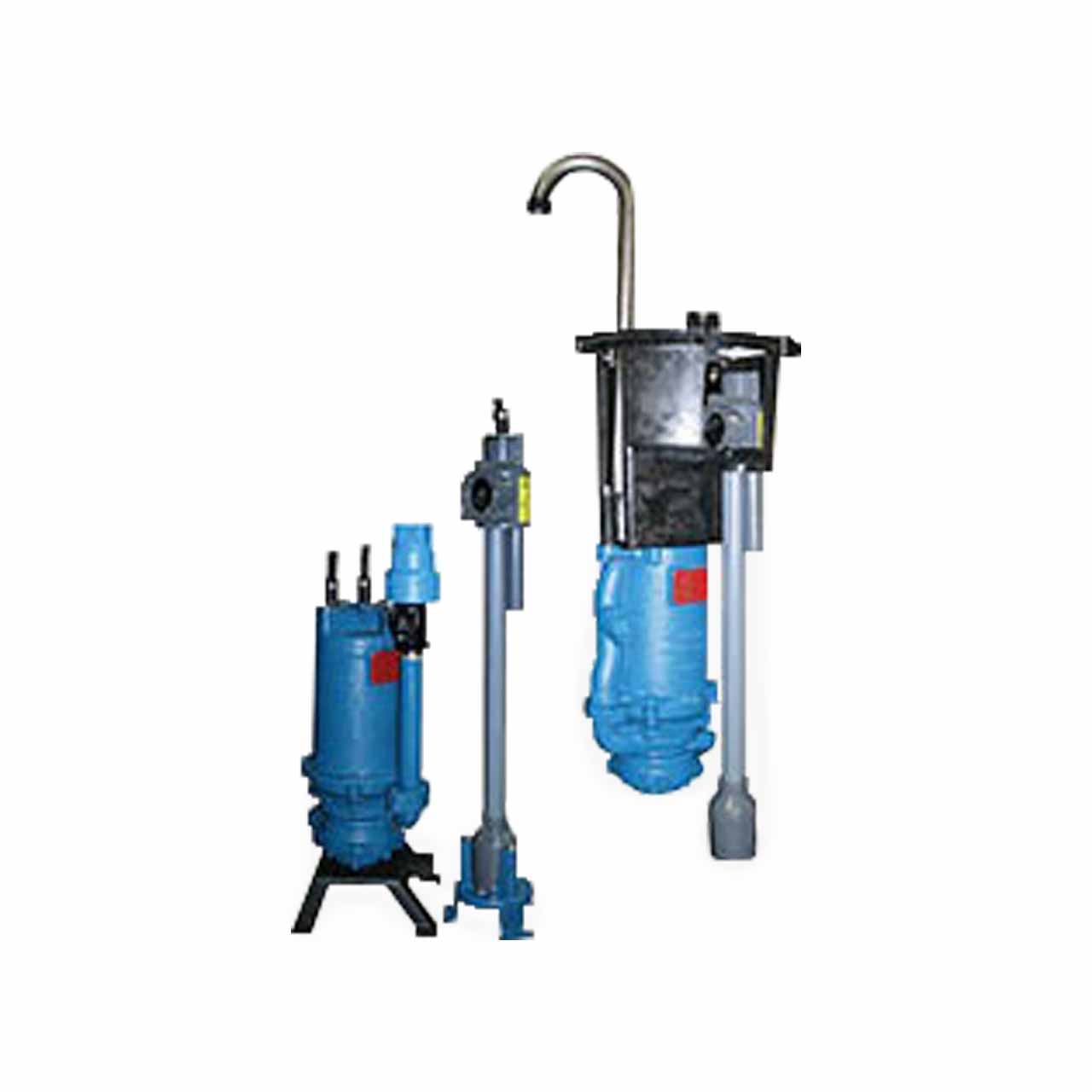

Barnes OGP2022AUE 131281EXC Submersible Upgrade Core Grinder Pump w/ Level Control 2.0 HP 230V 1PH 30' Cord
Barnes OGP2022AUE 131281EXC Submersible Upgrade Core Grinder Pump w/ Level Control 2.0 HP 230V 1PH 30' Cord
SKU : BAR131281EXC
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Barnes
Barnes OGP2022AUE Submersible Upgrade Core Grinder Pump
The reliability and longevity of centrifugal grinder pumps is available in an Upgrade Core package that fits directly into E/One 200 and 2000 Series basins as well as most other lower pressure sewer pump providers. The centrifugal technology out-performs Progressing Cavity technology.
Barnes OGP2022AUE Submersible Upgrade Core Grinder Pump Applications
The Grinder Pump is designed to reduce domestic sewage to a finely ground slurry.
Barnes OGP2022AUE Submersible Upgrade Core Grinder Pump Features
- Cast Iron Construction.
- NEMA L- Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction Motor.
- Single Phase has Capacitor Start/Capacitor Run.
- Upper Bearing: Single Row, Angular Contact Ball, Oil Lubricated, Radial & Thrust Load. Lower Bearing: Single Row, Angular Contact Ball, Oil Lubricated, Radial & Thrust Load.
- Single Mechanical Seal.
- Seal Rotating Faces - Silicone-Carbide, Stationary Faces - Silicone Carbide Elastomer - Buna-N Hardware - 300 Series Stainless.
- Impeller is made 85-5-5-5 Bronze.
- 1-1/4" NPT.
- Temperature Rating: 104°F (40°C) Continuous.
- Level Control Model ESPS-150, Environmentally Sealed Pressure Switch.
- Factory Installed EQD to Mate with the E/One 2000 Series Stations
Specifications
Specifications
Barnes OGP2022AUE Submersible Upgrade Core Grinder Pump Specifications
- VOLTAGE: 1ø, 230V, 60 Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW: 16.5
- MOTOR TYPE: NEMA L-Single Phase Torque Curve. Oil-Filled. Squirrel Cage Induction
- RPM: 3450
- MAXIMUM HEAD: 200'
- MAXIMUM CAPACITY: 29 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/4" NPT
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3
- CORD LENGTH: 30'
- CORD SIZE: 12/5 Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C) Continuous
- MANUFACTURER PART NUMBER: 131281EXC
Barnes OGP2022AUE Submersible Upgrade Core Grinder Pump Performance Curve
