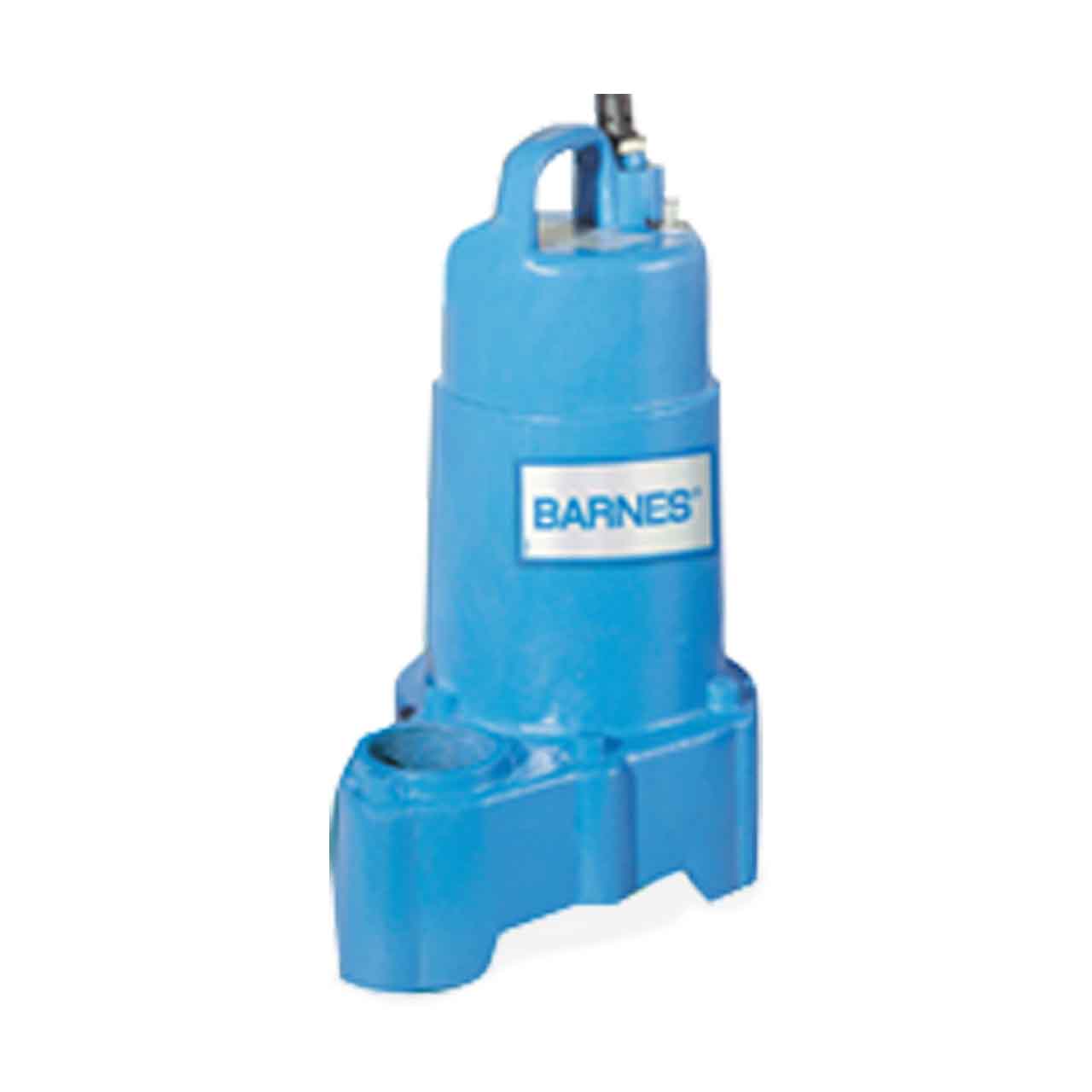

Barnes EP72X Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes EP72X Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes EP72X Series Submersible Effluent Pump Features

• Cast Iron Construction.
• Single Phase has Permanent Split Capacitor. Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
• Single Mechanical, Type 21 Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is Cast Iron.
• 1.5" NPT Female Vertical Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

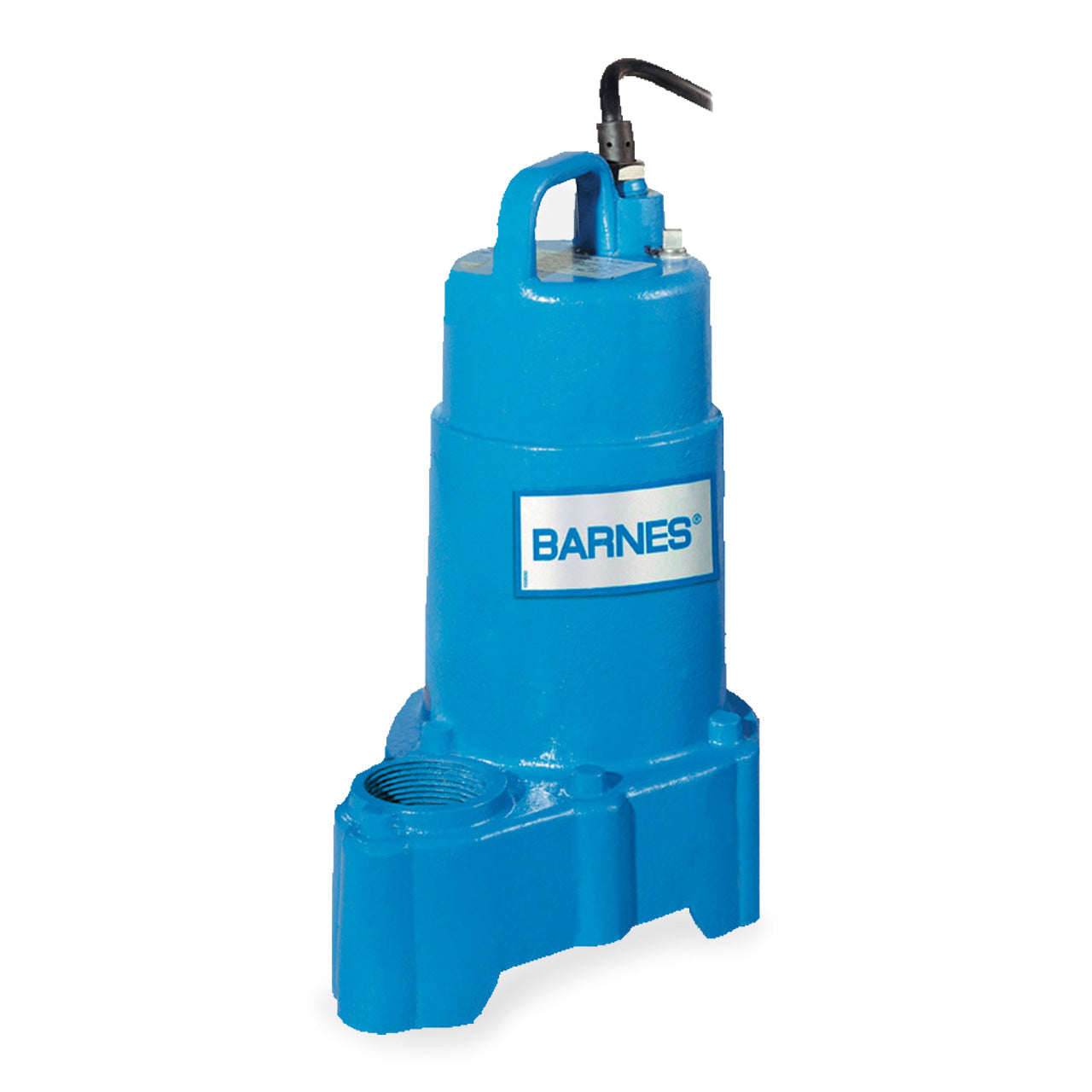

Barnes EP72VFX Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 4.3
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1750
• MAXIMUM HEAD: 24'
• MAXIMUM CAPACITY: 84 GPM
• SWITCH TYPE: Vertical Float, PVC, Snap Action, 20ft Cord with Piggy-Back Plug
• DISCHARGE PIPE SIZE: 1.5" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: 10 Vane Vortex, with Pump Out Vanes on Back Side, Balanced, ISO G6.3
• IMPELLER DIAMETER: 3.13”
• CORD LENGTH: 20'
• CORD SIZE: 16/3; Type SJTOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes EP72X Series Submersible Effluent Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes EP72X Series Submersible Effluent Pump Product Resources

Download Barnes EP72X Series Submersible Effluent Pump Specifications

Download Barnes EP72X Series Submersible Effluent Pump Manual
