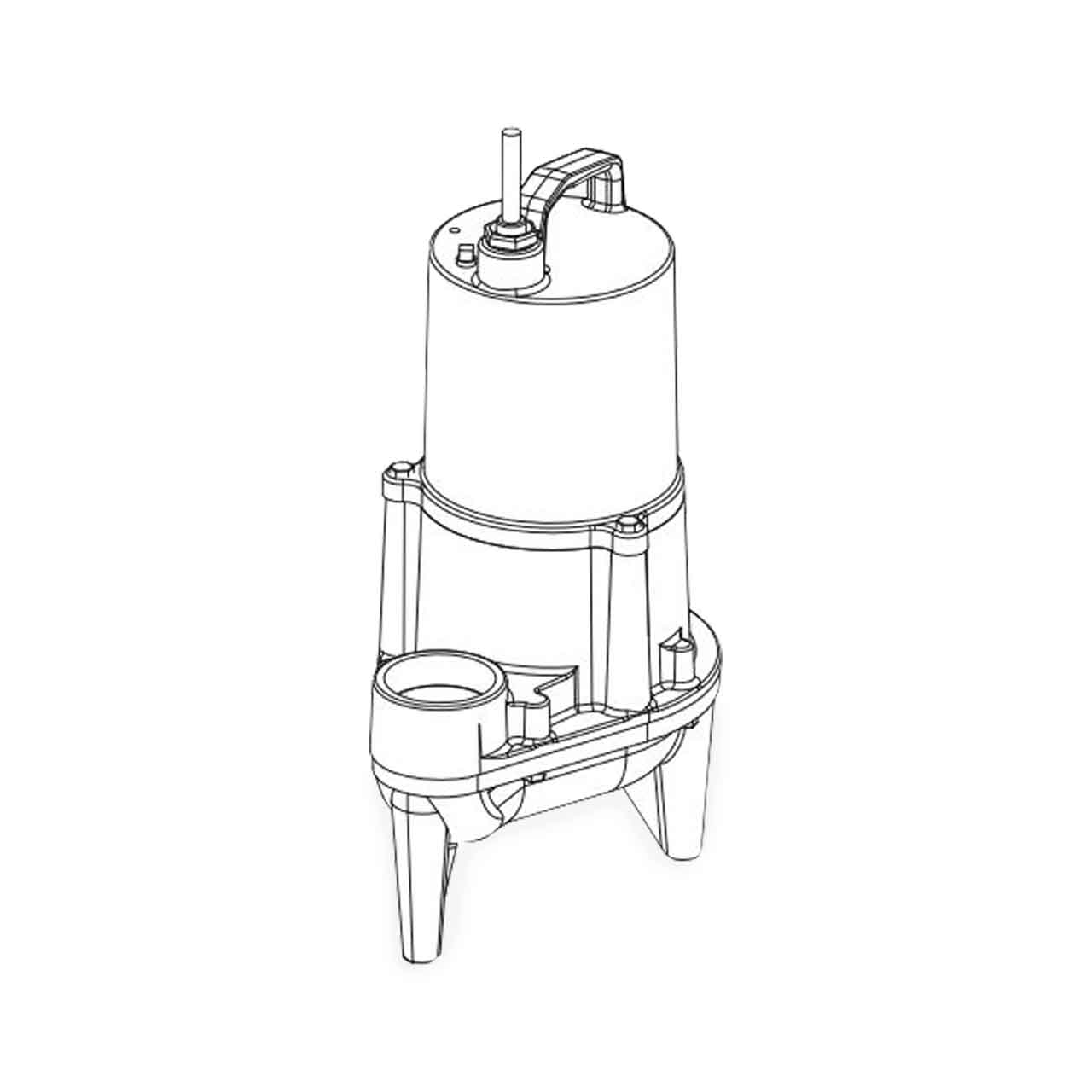

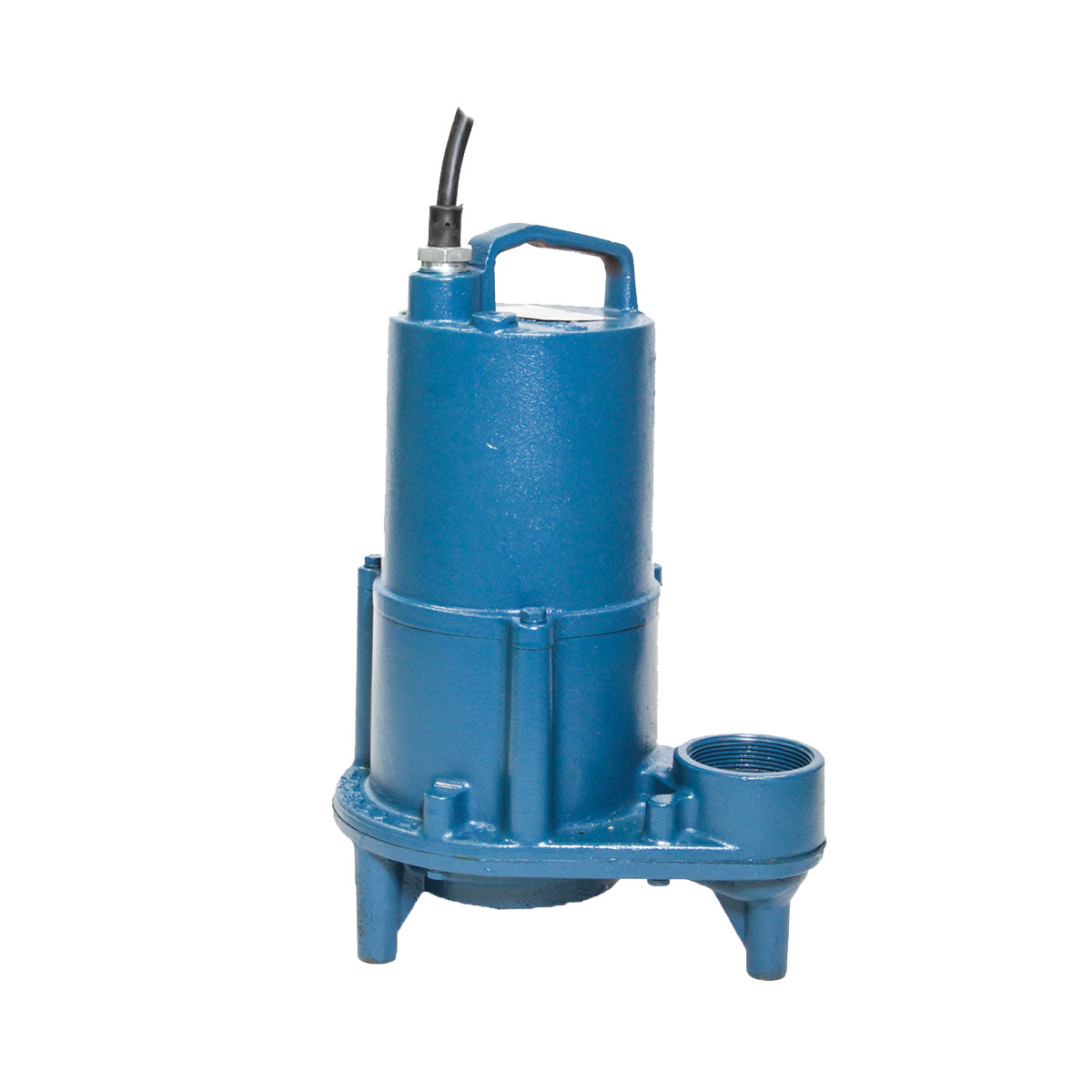

Barnes EHV Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes EHV Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes EHV Series Submersible Effluent Pump Features

• Cast Iron Construction.
• Single Phase, Oil Filled Motor.
• Single Phase has Permanent Split Capacitor Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball. Lower Bearing: Single Row, Ball.
• Single Mechanical, Oil Filled Reservoir Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is made of Cast Iron.
• 2" NPT Female Vertical Discharge.
• Temperature Rating: 77°F (25°C) Continuous.

Barnes EHV412A Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 6.4
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 45'
• MAXIMUM CAPACITY: 48 GPM
• SWITCH TYPE: Wide Angle, Mechanical 20ft Cord, Pipe Mounted
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Multi-Vane, Vortex
• IMPELLER DIAMETER: 3.44”
• CORD LENGTH: 20'
• CORD SIZE: 14/3; Type SJTOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 77°F (25°C)
• DUTY RATING: Continuous

Barnes EHV Series Submersible Effluent Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes EHV Series Submersible Effluent Pump Product Resources

Download Barnes EHV Series Submersible Effluent Pump Specifications

Download Barnes EHV Series Submersible Effluent Pump Manual
