Barnes EH-L Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes EH-L Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes EH-L Series Submersible Effluent Pump Features

• Cast Iron Construction.
• NEMA L, Single Phase, Oil Filled, Squirrel Cage Induction Motor.
• Single Phase has Permanent Split Capacitor Includes Overload Protection in Motor.
• Upper Ball Bearings are Single Row, Oil Lubricated. Lower Ball Bearings are Single Row, Oil Lubricated.
• Single Mechanical Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is made of Polypropylene with Stainless Steel Insert.
• 2" NPT Female Vertical Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

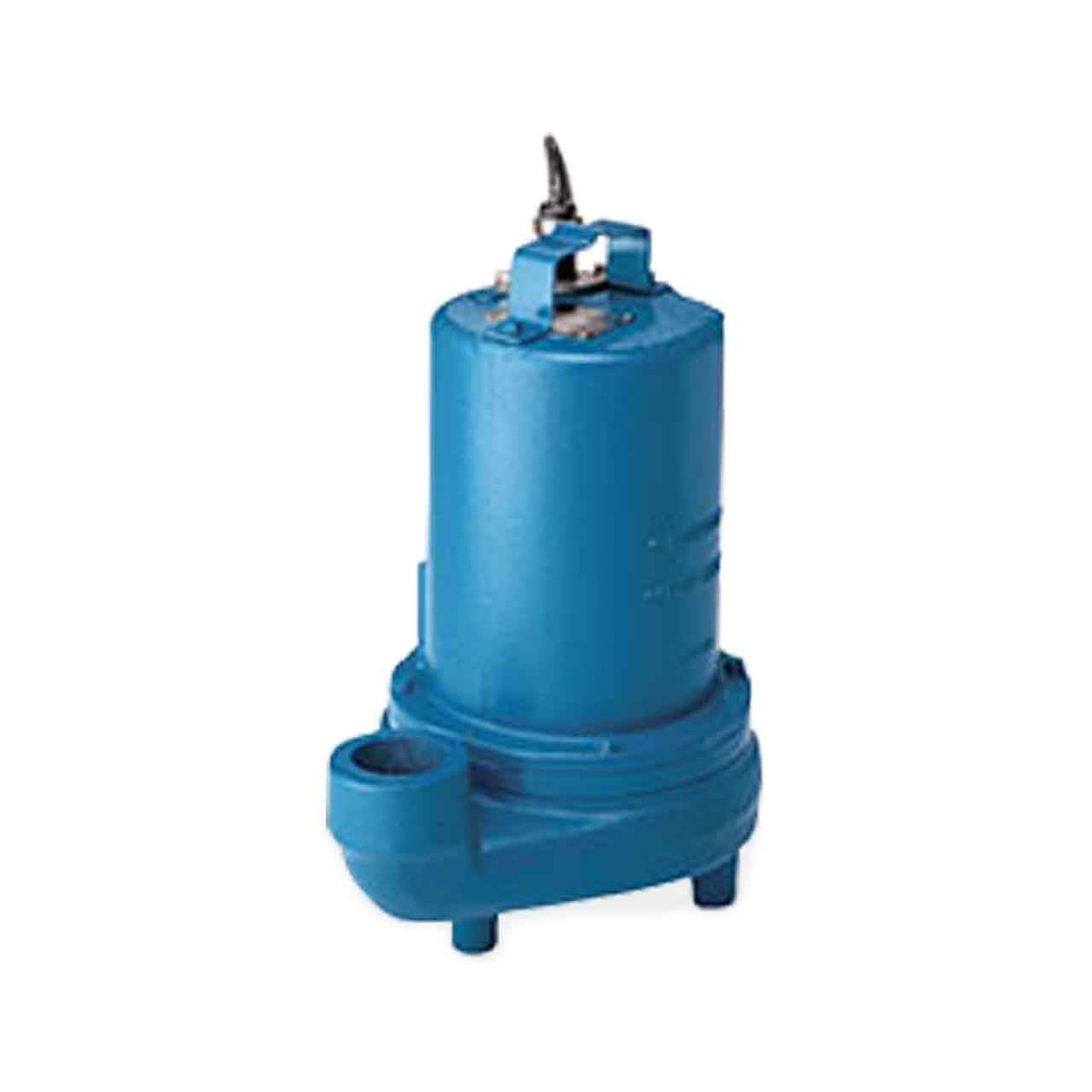

Barnes EH512L Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 11.4
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450 RPM
• MAXIMUM HEAD: 49'
• MAXIMUM CAPACITY: 100 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: 14" (355mm)
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• IMPELLER TYPE: 3-Vane Open with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 3.88"
• CORD LENGTH: 20'
• CORD SIZE: 14/3 Type SJTW, Quick Connect
• BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes EH-L Series Submersible Effluent Pump Performance Curve
