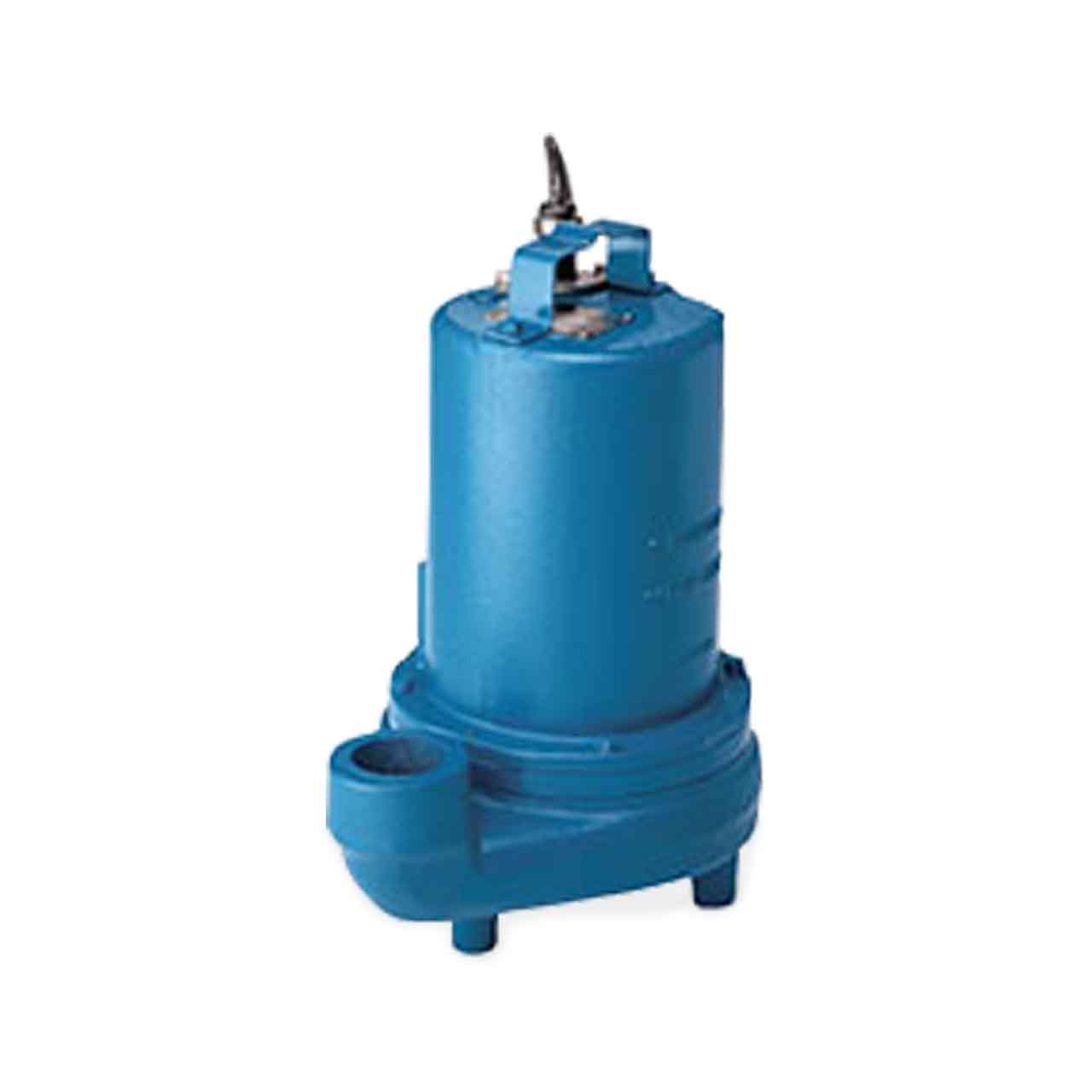

Barnes EH1042L Submersible Effluent Pump 1.0 HP 460V 3PH 20' Cord Manual
Barnes EH1042L Submersible Effluent Pump 1.0 HP 460V 3PH 20' Cord Manual
SKU : BAR105070
In Stock Quantity:0
:
Brand
:
Regular price
$1,859.88 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes EH-L Series Submersible Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes EH-L Series Submersible Effluent Pump Applications
Pump is designed for handling sewage effluent in typical septic tank/effluent applications.
Barnes EH-L Series Submersible Effluent Pump Features
- Cast Iron Construction.
- NEMA B, Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Three Phase 200-240/480 is Tri-Voltage. 600V Requires Overload Protection to be Included in Control Panel.
- Upper Bearings: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Single Mechanical Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is made of Polypropylene with Stainless Steel Insert.
- 2" NPT Female Vertical Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes EH1042L Submersible Effluent Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 3.1
- MOTOR TYPE: Tri-Voltage
- RPM: 3450 RPM
- MAXIMUM HEAD: 69'
- MAXIMUM CAPACITY: 100 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
- IMPELLER TYPE: 3-Vane Open with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 4.50"
- CORD LENGTH: 20'
- CORD SIZE: 14/4 Type SOW, Quick Connect
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barnes EH-L Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes EH-L Series Submersible Effluent Pump Product Resources
Download Barnes EH-L Series Submersible Effluent Pump Specifications
Download Barnes EH-L Series Submersible Effluent Pump Manual
