Barnes EH-DS Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes EH-DS Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes EH-DS Series Submersible Effluent Pump Features

• Cast Iron Construction.
• NEMA L, Single Phase, Oil Filled, Squirrel Cage Induction Motor.
• Single Phase has Permanent Split Capacitor Includes Overload Protection in Motor.
• Upper Bearings: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
• Tandem Mechanical Seal, Oil-Filled Reservoir Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is made of Polypropylene with Stainless Steel Insert.
• 2" NPT Female Vertical Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

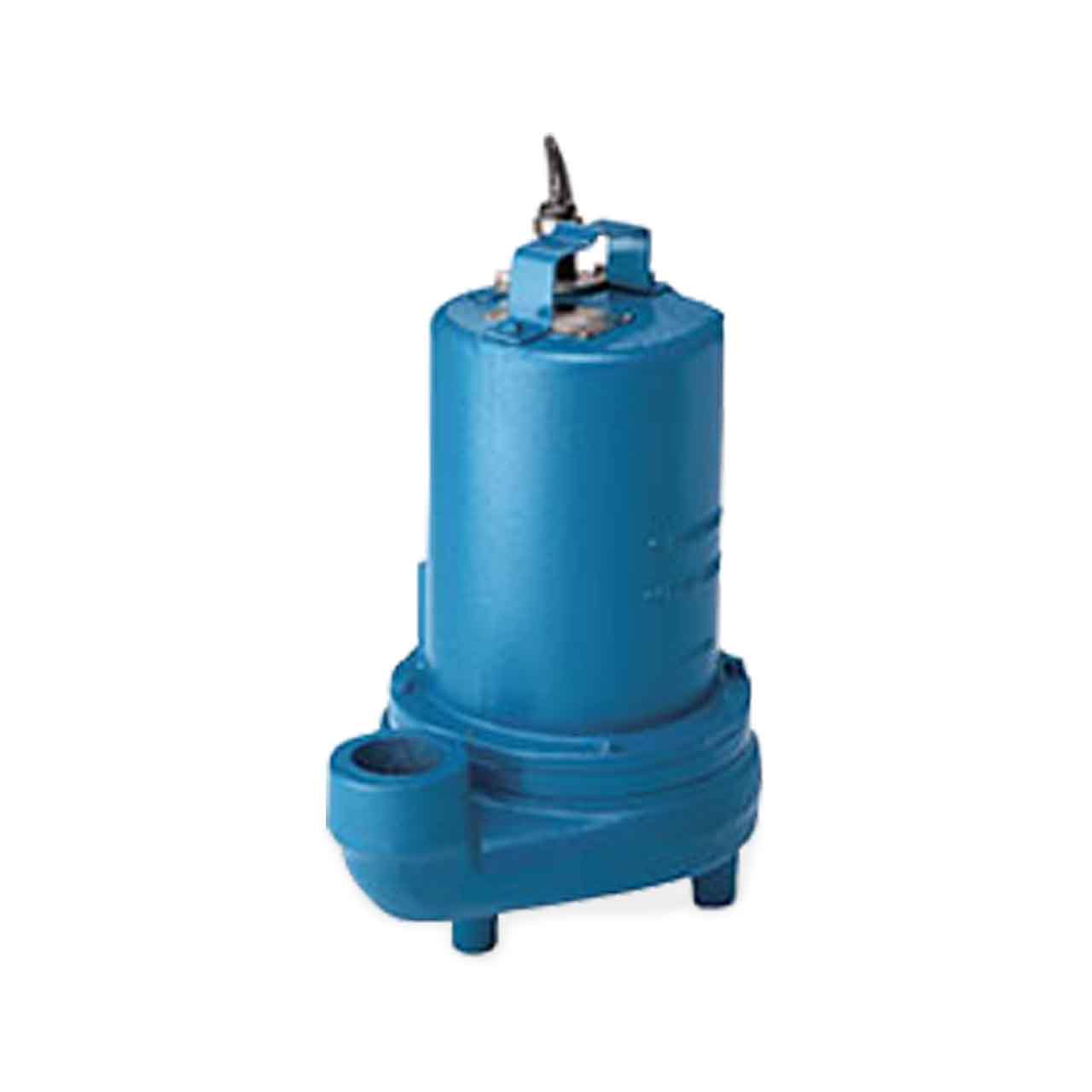

Barnes EH1022DS Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 1.0 HP
• AMP DRAW (full load): 8.1
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450 RPM
• MAXIMUM HEAD: 69'
• MAXIMUM CAPACITY: 100 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 3/4" Spherical Solids
• IMPELLER TYPE: 3-Vane Open with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 4.50"
• CORD LENGTH: 20'
• CORD SIZE: 14/3 Type SOW, Quick Connect
• BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes EH-DS Series Submersible Effluent Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes EH-DS Series Submersible Effluent Pump Product Resources

Download Barnes EH-DS Series Submersible Effluent Pump Specifications

Download Barnes EH-DS Series Submersible Effluent Pump Manual
