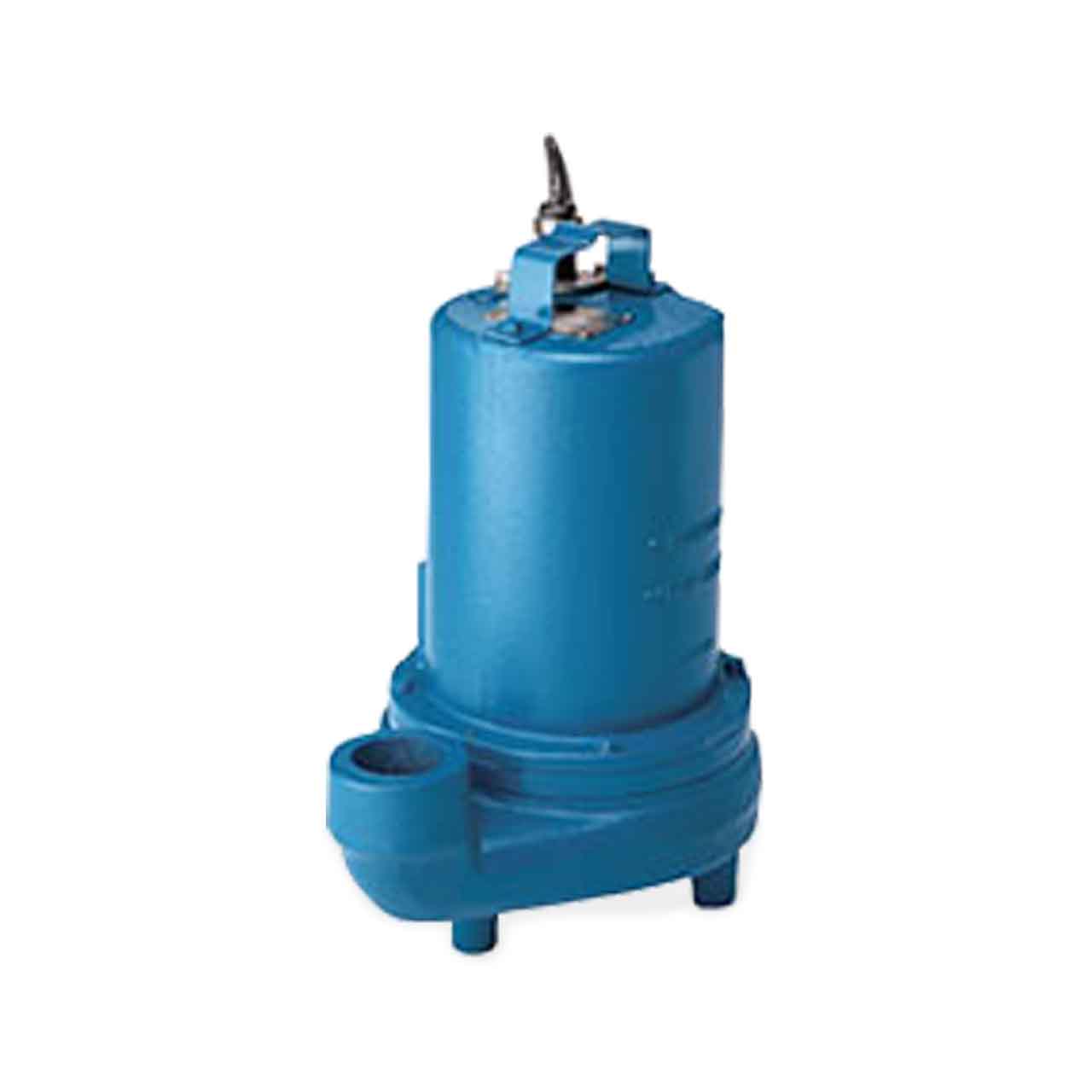

Barnes BP324HT Submersible High Temperature Effluent Pump 0.33 HP 230V 1PH 15' Cord Manual
Barnes BP324HT Submersible High Temperature Effluent Pump 0.33 HP 230V 1PH 15' Cord Manual
SKU : BAR96740
In Stock Quantity:0
:
Brand
:
Regular price
$1,365.54 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes BP-HT Series Submersible Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes BP-HT Series Submersible Effluent Pump Applications
Pump is designed for handling sewage effluent in typical septic tank/effluent applications.
Barnes BP-HT Series Submersible Effluent Pump Features
- Cast Iron Construction.
- Single Phase has Permanent Split Capacitor. Oil Filled. Includes Overload Protection in Motor.
- Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Single Mechanical, Oil-Filled Reservoir, Secondary Exclusion Seal.
- Seal is Carbon/Ceramic/Buna-N.
- Impeller is made of Bronze 81-3-7-9.
- 2" NPT Female Vertical Discharge.
- Temperature Rating: 200°F (93°C) Continuous.
Specifications
Specifications
Barnes BP324HT Submersible Effluent Pump Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.33 HP
- VOLTAGE: 230 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 1750 RPM
- FULL LOAD AMPS: 4.0
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- SOLIDS HANDLING: 3/4" Spherical Solids
- CORD LENGTH: 15'
- CORD SIZE & TYPE: 14/3, SOOW
- MAX HEAD: 30'
- MAX FLOW RATE: 70 GPM
- SWITCH TYPE: Manual
- IMPELLER: 2-Vane Open, Dynamically Balanced, ISO G6.3
Barnes BP-HT Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes BP-HT Series Submersible Effluent Pump Product Resources
Download Barnes BP-HT Series Submersible Effluent Pump Specifications
Download Barnes BP-HT Series Submersible Effluent Pump Manual
