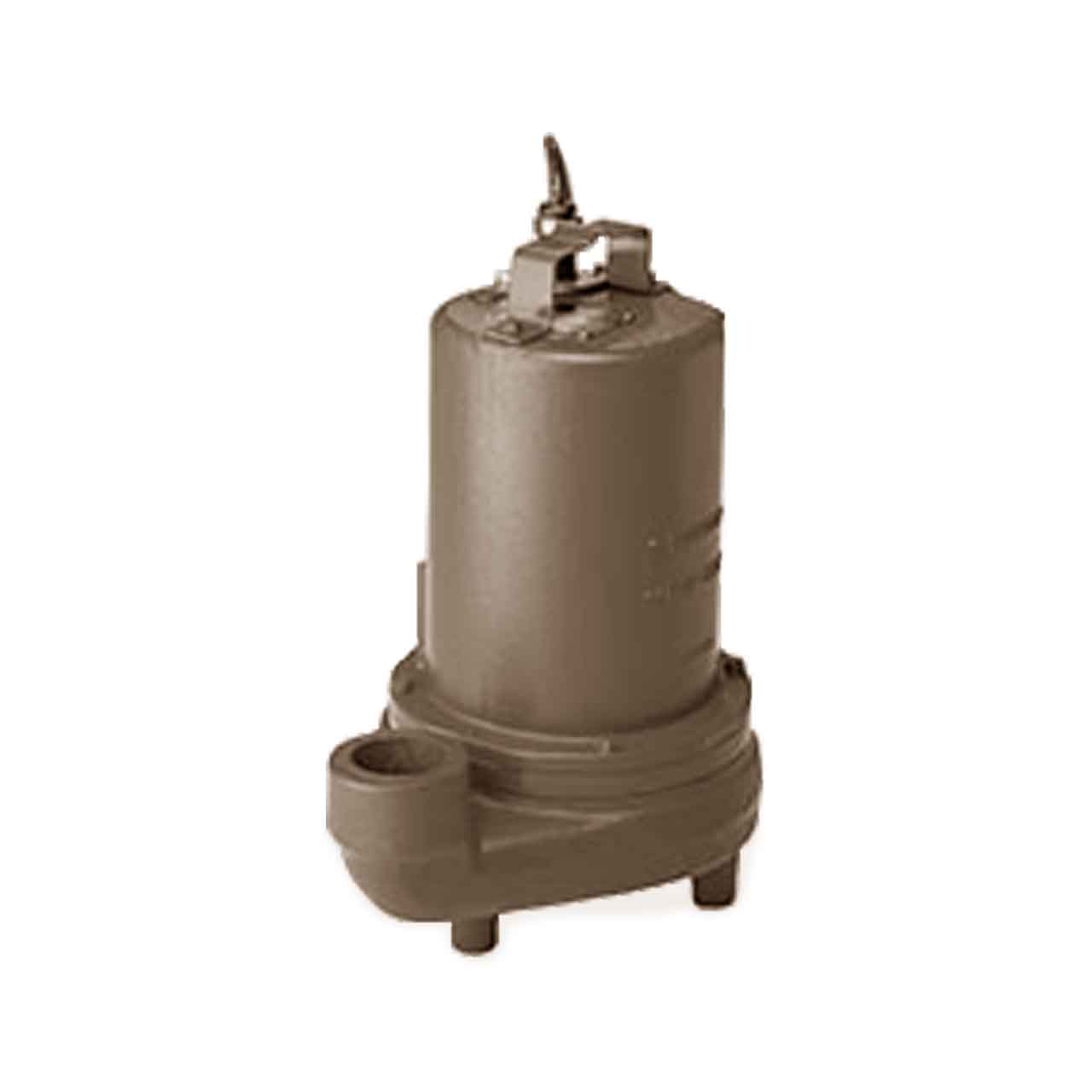

Barnes BP314HTBR Submersible High Temperature Bronze Effluent Pump 0.33 HP 115V 1PH 15' Cord Manual
Barnes BP314HTBR Submersible High Temperature Bronze Effluent Pump 0.33 HP 115V 1PH 15' Cord Manual
SKU : BAR096742
In Stock Quantity:0
:
Brand
:
Regular price
$4,470.18 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes BP-HT Series Submersible Effluent Pump
Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.
Barnes BP-HT Series Submersible Effluent Pump Applications
Pump is designed for handling sewage effluent in typical septic tank/effluent applications.
Barnes BP-HT Series Submersible Effluent Pump Features
- Bronze Construction.
- Single Phase has Permanent Split Capacitor. Oil Filled. Includes Overload Protection in Motor.
- Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
- Single Mechanical, Oil-Filled Reservoir, Secondary Exclusion Seal.
- Seal is Carbon/Ceramic/Buna-N.
- Impeller is made of Bronze 81-3-7-9.
- 2" NPT Female Vertical Discharge.
- Temperature Rating: 200°F (93°C) Continuous.
Specifications
Specifications
Barnes BP314HTBR Submersible Effluent Pump Specifications
- BODY CONSTRUCTION: Bronze
- HORSEPOWER: 0.33 HP
- VOLTAGE: 115 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 1750 RPM
- FULL LOAD AMPS: 8.0
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
- SOLIDS HANDLING: 3/4" Spherical Solids
- CORD LENGTH: 15'
- CORD SIZE & TYPE: 14/3, SOOW
- MAX HEAD: 30'
- MAX FLOW RATE: 70 GPM
- SWITCH TYPE: Manual
- IMPELLER: 2-Vane Open, Dynamically Balanced, ISO G6.3
Barnes BP-HT Series Submersible Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes BP-HT Series Submersible Effluent Pump Product Resources
Download Barnes BP-HT Series Submersible Effluent Pump Specifications
Download Barnes BP-HT Series Submersible Effluent Pump Manual
