Barnes BP Series Submersible Effluent Pump

Effluent Pumps are designed for handling dirty water in typical septic tank/effluent applications. High temperature models are available. Barnes Effluent Pumps are designed to handle most low and high head effluent applications.

Barnes BP Series Submersible Effluent Pump Applications

Pump is designed for handling sewage effluent in typical septic tank/effluent applications.

Barnes BP Series Submersible Effluent Pump Features

• Cast Iron Construction.
• Single Phase has Permanent Split Capacitor. Oil Filled. Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball, Oil Lubricated. Lower Bearing: Single Row, Ball, Oil Lubricated.
• Single Mechanical, Oil-Filled Reservoir, Secondary Exclusion Seal.
• Seal is Carbon/Ceramic/Buna-N.
• Impeller is made of Polypropylene with Stainless Steel Insert.
• 2" NPT Female Vertical Discharge.
• Temperature Rating: 77°F (25°C) Continuous.

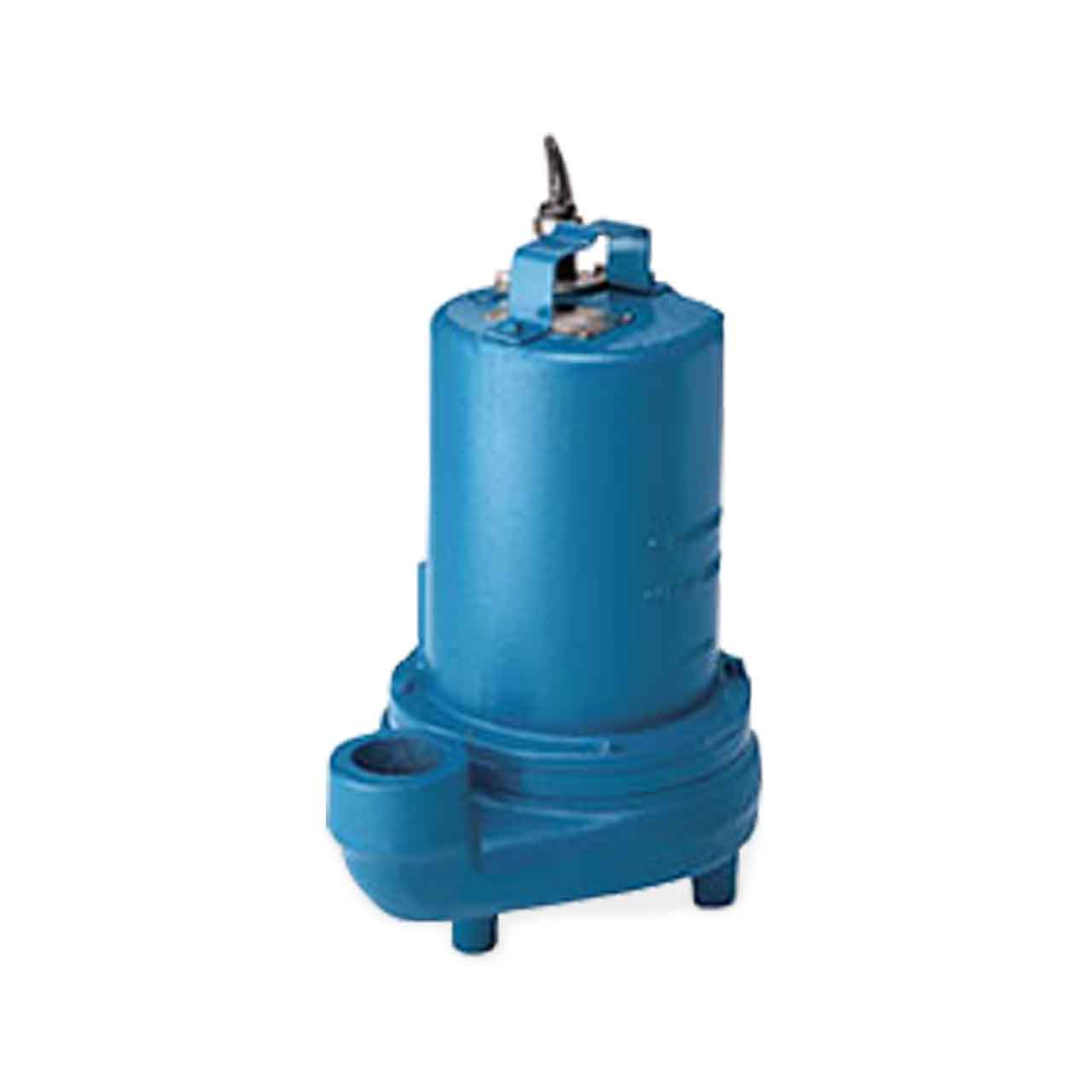

Barnes BP314 Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 8.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1750
• MAXIMUM HEAD: 30'
• MAXIMUM CAPACITY: 70 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: 2-Vane Open, Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 5.63”
• CORD LENGTH: 15'
• CORD SIZE: 14/3; Type SJTOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 77°F (25°C)
• DUTY RATING: Continuous

Barnes BP Series Submersible Effluent Pump Performance Curve
