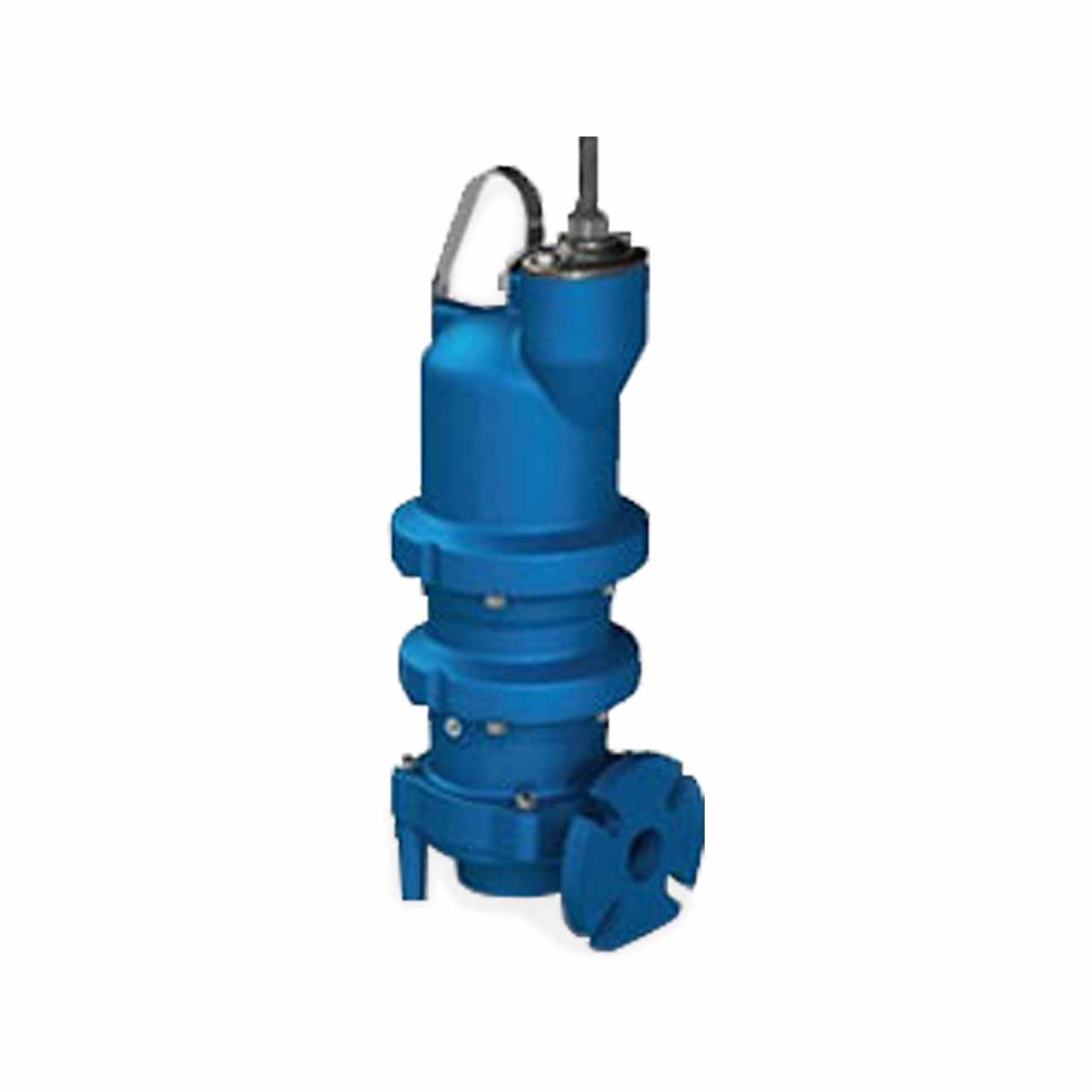

Barnes Blade XGVH50N2 Submersible Explosion Proof Grinder Pump 5.0 HP 208-230/460V 3PH Manual
Barnes Blade XGVH50N2 Submersible Explosion Proof Grinder Pump 5.0 HP 208-230/460V 3PH Manual
SKU : BAR141355
In Stock Quantity:0
:
Brand
:
Regular price
$8,194.11 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes XGVH Series Submersible Grinder Pump
BLADE XGV Grinder Pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP explosion proof models with 2",2.5" and 3" discharge sizes.
BLADE XGV Grinder Pumps are designed for longer lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator radial cutting technology, plug-n-play "Quick Connect" cord and oil filled motor, BLADE XGV Grinder Pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials.
Barnes XGVH Series Submersible Grinder Pump Applications
The Grinder Pump is used in HAZARDOUS locations and is designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.
Barnes XGVH Series Submersible Grinder Pump Features
- Cast Iron Construction.
- NEMA B- Three Phase Torque Curve, Oil-Filled, Squirrel Cage Induction, Inverter Duty Rated Per NEMA MG1 Motor.
- Three Phase Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Double Row, Ball, Oil Lubricated, Radial & Thrust Load.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal Rotating Faces - Silicone-Carbide, Stationary Faces - Ceramic Elastomer - Buna-N Hardware - 300 Series Stainless.
- Impeller is made of Cast Iron ASTM A-48, Class 30.
- XGVH 2"/2.5"/3" Horizontal Flange Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes XGVH50N2 Submersible Grinder Pump Specifications
- VOLTAGE: 3ø, 208-230/460V, 60 Hz
- HORSEPOWER: 5.0 HP
- AMP DRAW: 17.8/16.0/8.0
- MOTOR TYPE: Three Phase (Requires overload protection to be included in control panel.)
- RPM: 3450
- MAXIMUM HEAD: 110'
- MAXIMUM CAPACITY: 106 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2"/2.50"/3" Horizontal Flange
- IMPELLER TYPE: 12-Vane Vortex, with Pump Out Vanes on Back Side Dynamically Balanced, ISO G6.3, Cast Iron
- POWER CORD SOLD SEPARATELY (208-230V)
- POWER CORD SOLD SEPARATELY (460V)
- BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- HAZARDOUS DUTY: Class 1, Division 1, Groups C & D
- CONTROL BOX REQUIRED
- MANUFACTURER PART NUMBER: 141355
Barnes XGVH Series Submersible Grinder Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes XGVH Series Submersible Grinder Pump Product Resources
Download Barnes XGVH Series Submersible Grinder Pump Specifications
