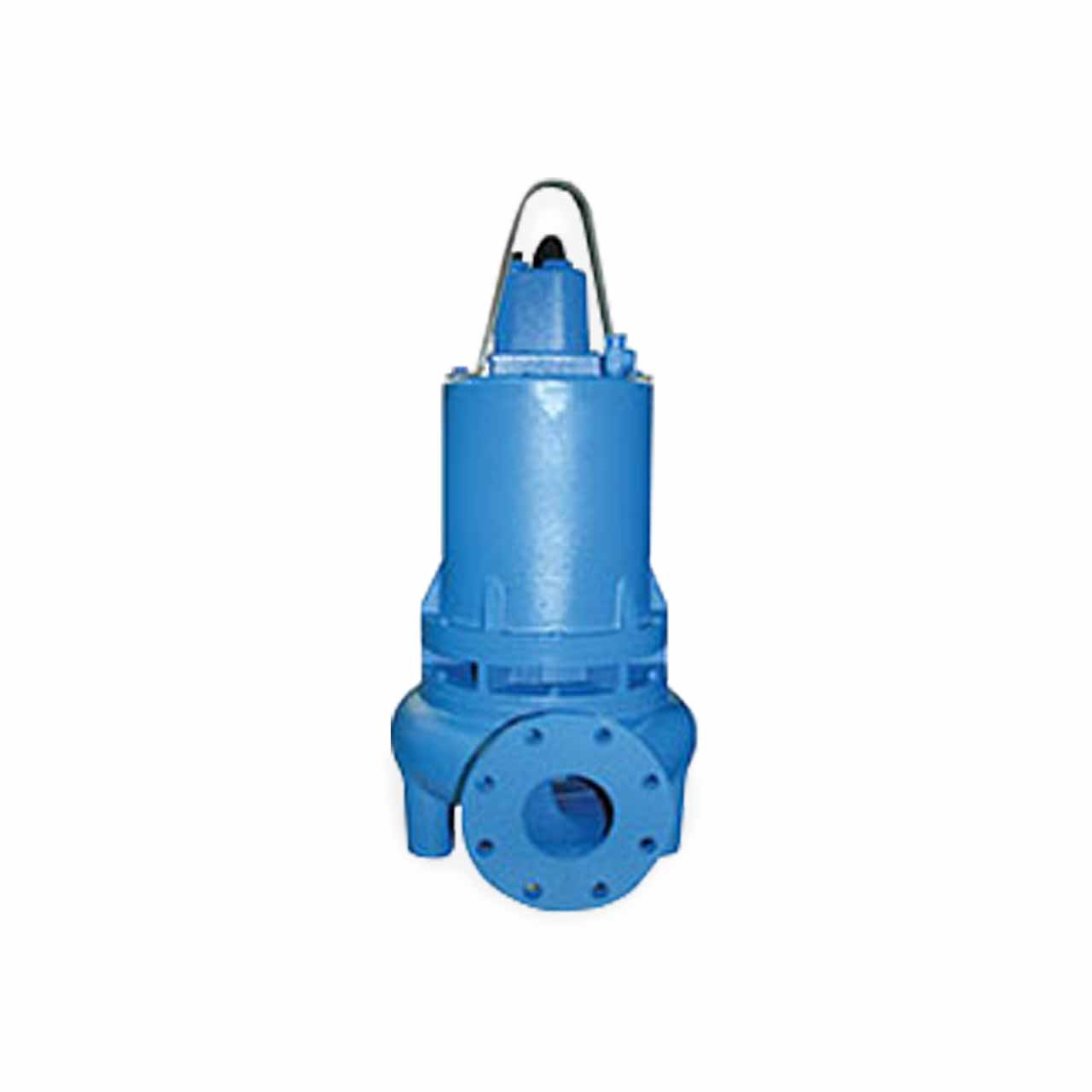

Barnes 4SEV4554DS Submersible Double Seal Solids Handling Pump 4.5 HP 575V 3PH 30' Cord Manual

Barnes 4SEV4554DS Submersible Double Seal Solids Handling Pump 4.5 HP 575V 3PH 30' Cord Manual

Usually ships within 2 weeks

SKU : BAR140230

In Stock Quantity:0

:
Brand : Barnes
$8,642.30 USD
Shipping calculated at checkout.

Description


Barnes 4SEV-DS Series Submersible Solids Handling Pump

Barnes Solids Handling Pump Series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling Pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Barnes 4SEV-DS Series Submersible Solids Handling Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes 4SEV-DS Series Submersible Solids Handling Pump Features

  • Cast Iron Construction.
  • NEMA B, Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
  • Three Phase Dual Voltage Motor 230/460/575. Requires Overload Protection to be Included in Control Panel, VFD Suitable.
  • Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial Load.
  • Double Mechanical. Oil Filled Pressure Equalized Reservoir Seal.
  • Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
  • Impeller is Cast Iron ASTM A-48, Class 30.
  • 4" NPT 125lb. Flange Horizontal Discharge.
  • Temperature Rating: 104°F (40°C) Continuous.

Specifications

Barnes 4SEV4554DS Submersible Solids Handling Pump Specifications

  • VOLTAGE: 1ø, 575V, 60Hz
  • HORSEPOWER: 4.5 HP
  • AMP DRAW (full load): 7.2
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1750
  • MAXIMUM HEAD: 43'
  • MAXIMUM CAPACITY: 400 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 4.0" 125lb. Flange Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: 3.0" Spherical Solids
  • IMPELLER TYPE: Vortex, 8 Vane with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
  • IMPELLER DIAMETER: 7.00
  • CORD LENGTH: 30'
  • CORD SIZE: 10/4; Type: SOW
  • BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
  • DUTY RATING: Continuous

Barnes 4SEV-DS Series Submersible Solids Handling Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes 4SEV-DS Series Submersible Solids Handling Pump Product Resources


Download Barnes 4SEV-DS Series Submersible Solids Handling Pump Specifications

Download Barnes 4SEV-DS Series Submersible Solids Handling Pump Manual
