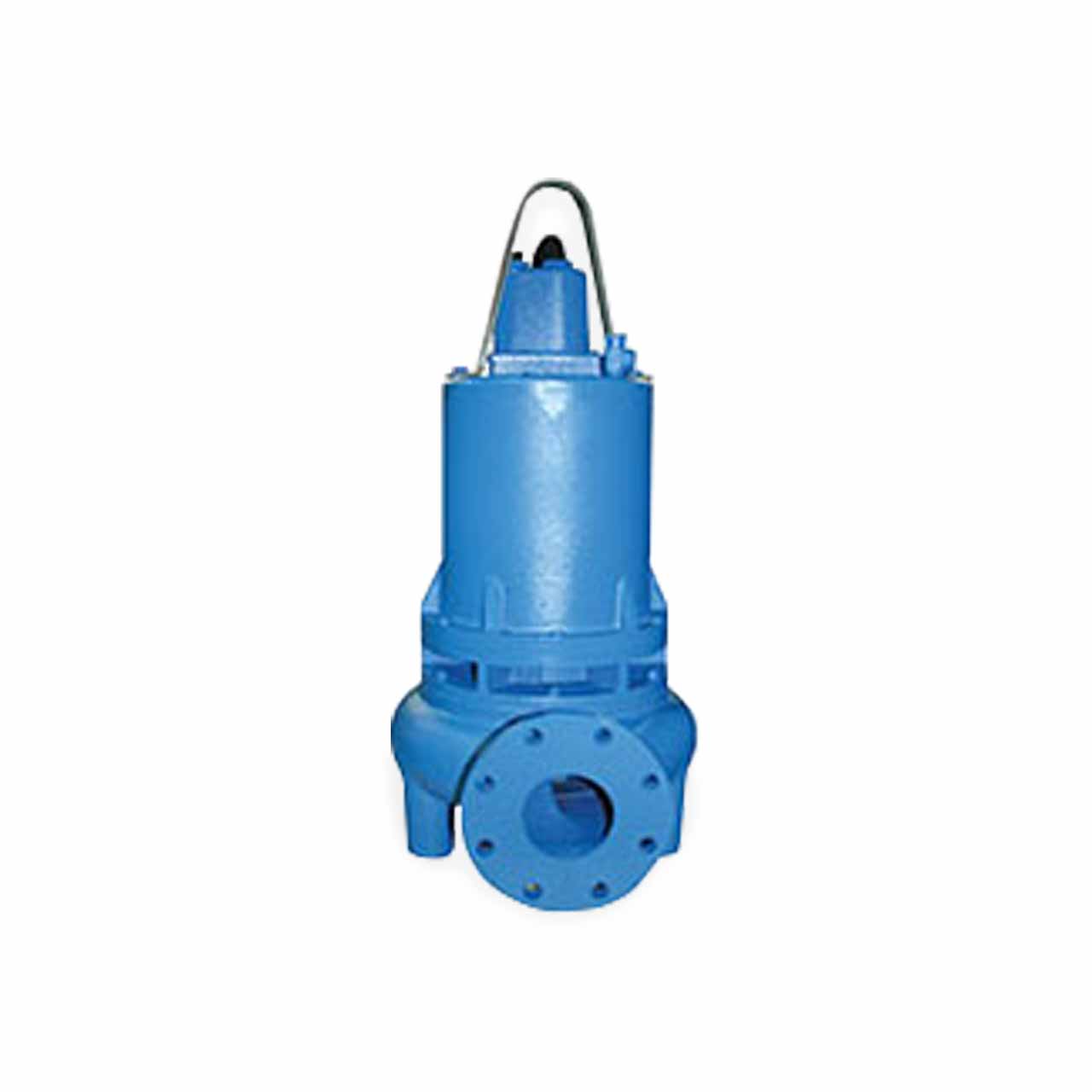

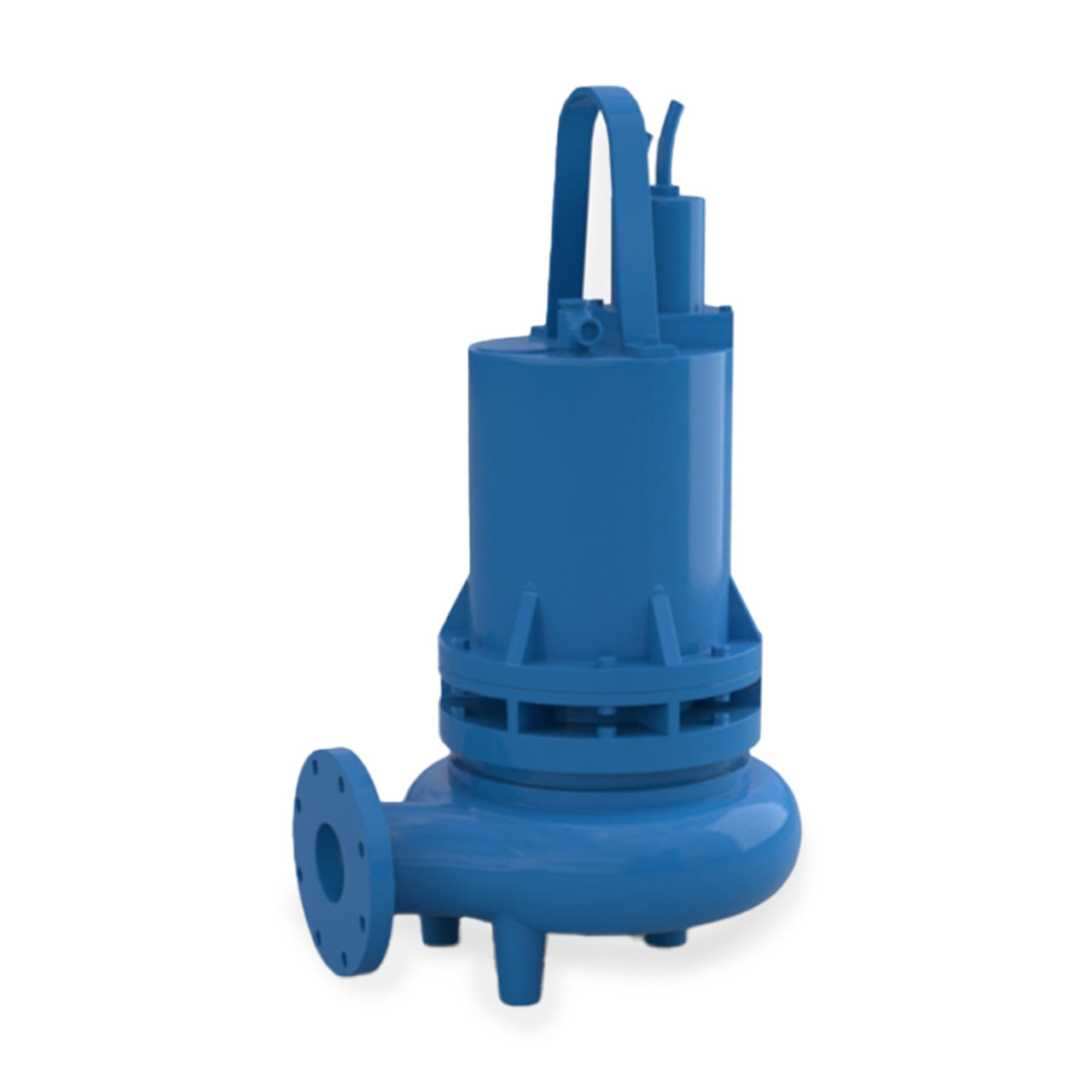

Barnes 4SE7546L Submersible Double Seal Solids Handling Pump 7.5 HP 460V 3PH 40' Cord Manual
Barnes 4SE7546L Submersible Double Seal Solids Handling Pump 7.5 HP 460V 3PH 40' Cord Manual
SKU : BAR084619
In Stock Quantity:0
:
Brand
:
Regular price
$10,027.51 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barnes 4SE-L Series Submersible Solids Handling Pump
Barnes Solids Handling Pump Series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling Pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Barnes 4SE-L Series Submersible Solids Handling Pump Applications
Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.
Barnes 4SE-L Series Submersible Solids Handling Pump Features
- Cast Iron Construction.
- NEMA B, Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Three Phase Tri-Voltage Motor 200-230/460V. Requires Overload Protection to be Included in Control Panel, VFD Suitable.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial Load.
- Double Mechanical, Oil Filled Pressure Equalized Reservoir Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is Cast Iron ASTM A-48, Class 30.
- 4" NPT 125lb. Flange Horizontal Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes 4SE7546L Submersible Solids Handling Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 7.5 HP
- AMP DRAW (full load): 11.0
- MOTOR TYPE: Tri-Voltage, Requires Overload Protection to be Included in Control Panel
- RPM: 1150
- MAXIMUM HEAD: 50'
- MAXIMUM CAPACITY: 890 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" 125lb. Flange Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0" Spherical Solids
- IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 10.00
- CORD LENGTH: 40'
- CORD SIZE: 8/4; Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barnes 4SE-L Series Submersible Solids Handling Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes 4SE-L Series Submersible Solids Handling Pump Product Resources
Download Barnes 4SE-L Series Submersible Solids Handling Pump Specifications
Download Barnes 4SE-L Series Submersible Solids Handling Pump Manual
