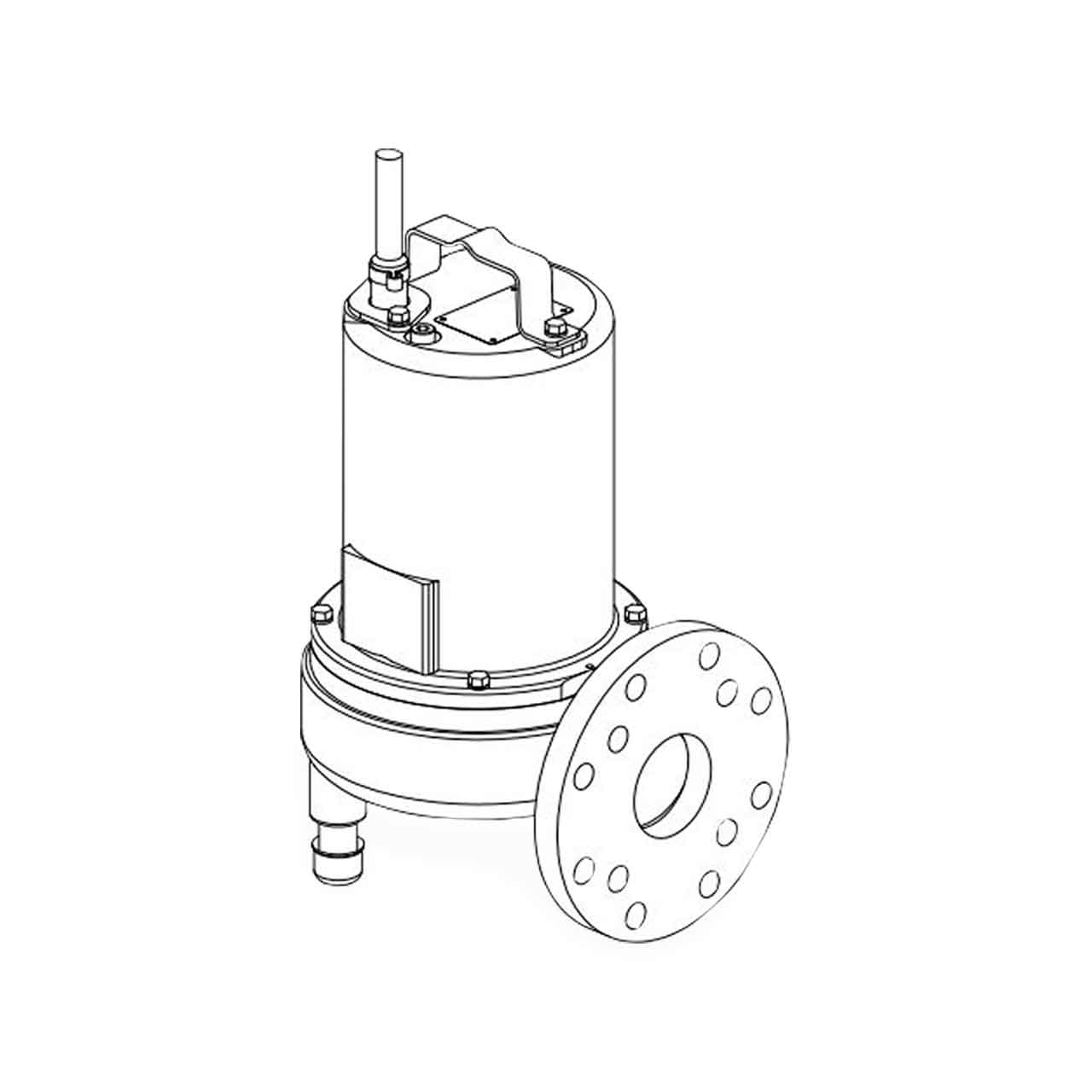

Barnes 4SE-L Series Submersible Solids Handling Pump

Barnes Solids Handling Pump Series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling Pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Barnes 4SE-L Series Submersible Solids Handling Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes 4SE-L Series Submersible Solids Handling Pump Features

• Cast Iron Construction.
• NEMA B, Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
• Three Phase 200-230/460 is Tri-Voltage. 575V. Requires Overload Protection to be Included in Control Panel.
• Upper Ball Bearings are Single Row, Oil Lubricated, Radial Load. Lower Ball Bearings are Single Row, Oil Lubricated Radial and Thrust Load.
• Single Mechanical.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is Cast Iron ASTM A-48, Class 30.
• 4" NPT 125lb. Flange Horizontal Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

Barnes 4SE1944L Submersible Solids Handling Pump Specifications

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 1.9 HP
• AMP DRAW (full load): 2.5
• MOTOR TYPE: Tri-Voltage
• RPM: 1750
• MAXIMUM HEAD: 30'
• MAXIMUM CAPACITY: 205 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 4.0" 125lb. Flange Horizontal
• MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
• IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 6.00
• CORD LENGTH: 30'
• CORD SIZE: 14/4; Type: SOW
• BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes 4SE-L Series Submersible Solids Handling Pump Performance Curve
