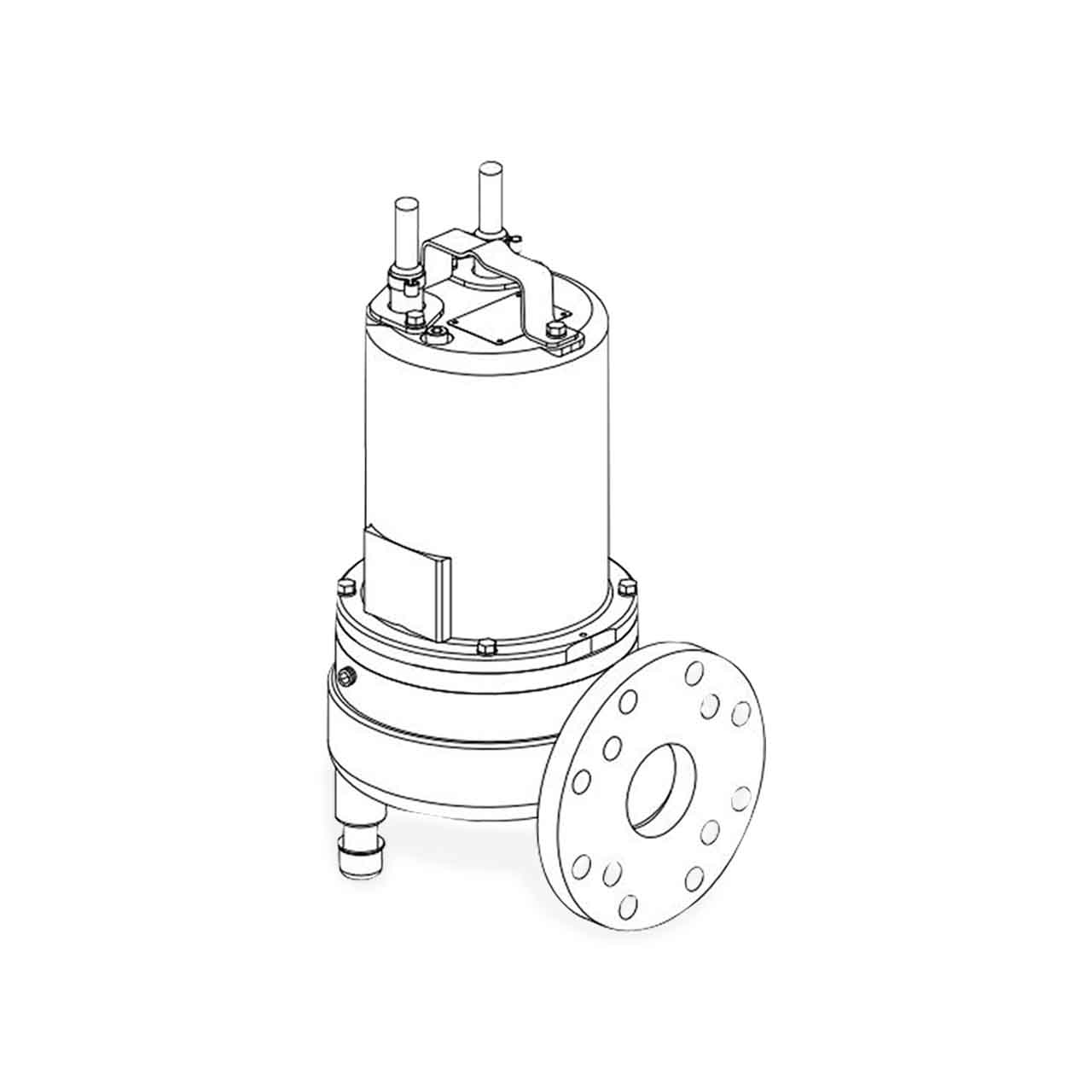

Barnes 4SE-DS Series Submersible Solids Handling Pump

Barnes Solids Handling Pump Series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling Pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.

Barnes 4SE-DS Series Submersible Solids Handling Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes 4SE-DS Series Submersible Solids Handling Pump Features

• Cast Iron Construction.
• NEMA L, Single Phase, Oil Filled, Squirrel Cage Induction Motor.
• Single Phase has Permanent Split Capacitor. Includes Overload Protection in Motor.
• Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated Radial & Thrust Load.
• Tandem Mechanical, Oil Filled Reservoir Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
• Impeller is Cast Iron ASTM A-48, Class 30.
• 4" NPT 125lb. Flange Horizontal Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

Barnes 4SE1474DS Submersible Solids Handling Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.9 HP
• AMP DRAW (full load): 7.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1750
• MAXIMUM HEAD: 30'
• MAXIMUM CAPACITY: 180 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 4.0" 125lb. Flange Horizontal
• MAXIMUM SOLIDS HANDLING SIZE: 3.0" Spherical Solids
• IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 5.62
• CORD LENGTH: 30'
• CORD SIZE: 14/3; Type: SOW
• BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
• DUTY RATING: Continuous

Barnes 4SE-DS Series Submersible Solids Handling Pump Performance Curve
