Barnes 4SE1444DS Submersible Double Seal Solids Handling Pump 1.4 HP 460V 3PH 30' Cord Manual
Barnes 4SE1444DS Submersible Double Seal Solids Handling Pump 1.4 HP 460V 3PH 30' Cord Manual
SKU : BAR105030
In Stock Quantity:0
:
Brand
:
Regular price
$3,802.79 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

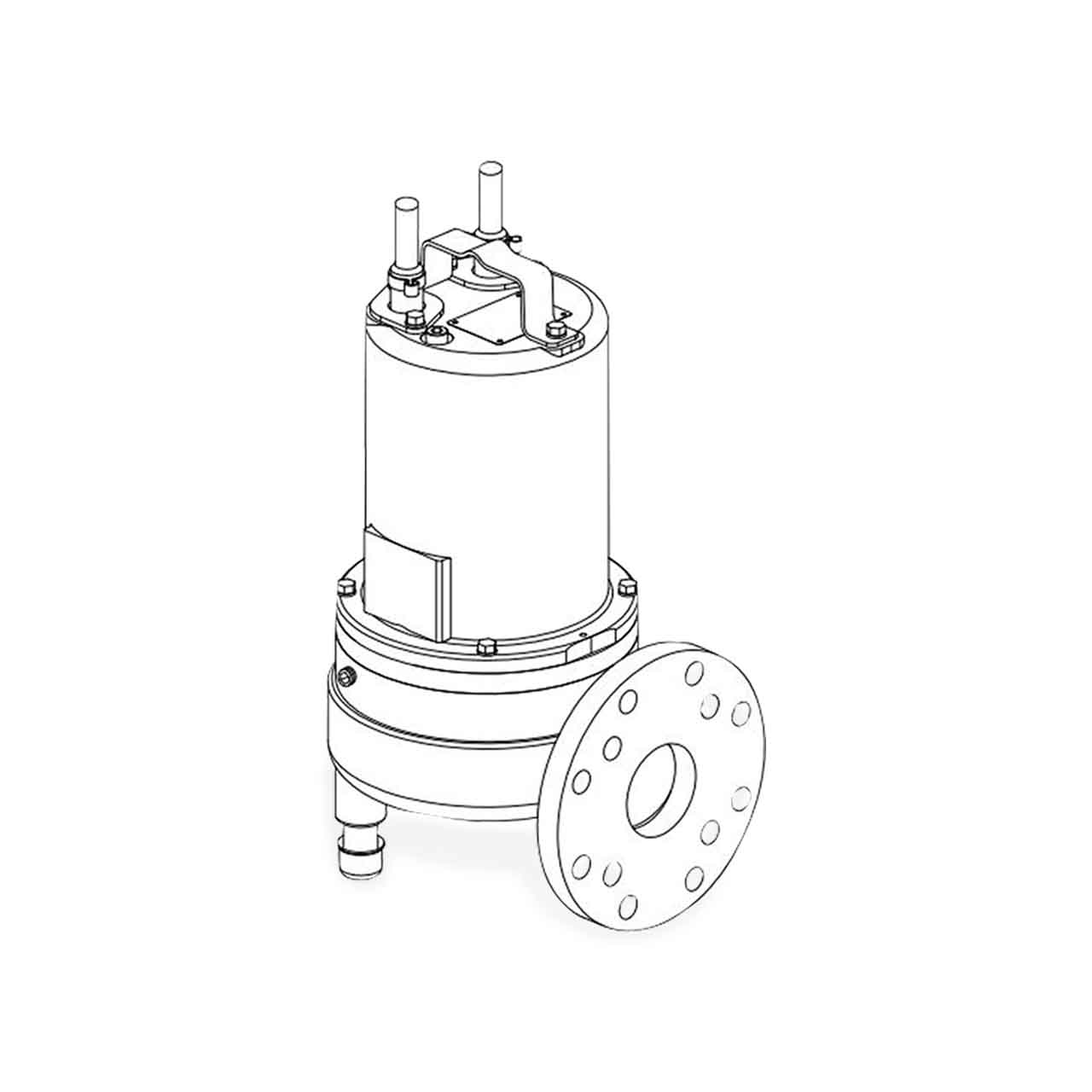

Barnes 4SE-DS Series Submersible Solids Handling Pump
Barnes Solids Handling Pump Series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling Pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need.
Barnes 4SE-DS Series Submersible Solids Handling Pump Applications
Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.
Barnes 4SE-DS Series Submersible Solids Handling Pump Features
- Cast Iron Construction.
- NEMA B, Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Three Phase 200-230/460 is Tri-Voltage Motor. 575V Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated Radial & Thrust Load.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is Cast Iron ASTM A-48, Class 30.
- 4" NPT 125lb. Flange Horizontal Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes 4SE1444DS Submersible Solids Handling Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 1.4 HP
- AMP DRAW (full load): 2.2
- MOTOR TYPE: Tri-Voltage
- RPM: 1750
- MAXIMUM HEAD: 30'
- MAXIMUM CAPACITY: 180 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" 125lb. Flange Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0" Spherical Solids
- IMPELLER TYPE: 2 Vane, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 5.62
- CORD LENGTH: 30'
- CORD SIZE: 14/4; Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
- DUTY RATING: Continuous
Barnes 4SE-DS Series Submersible Solids Handling Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes 4SE-DS Series Submersible Solids Handling Pump Product Resources
Download Barnes 4SE-DS Series Submersible Solids Handling Pump Specifications
Download Barnes 4SE-DS Series Submersible Solids Handling Pump Manual
