Barnes 3SEV554DS Submersible Double Seal Sewage Ejector Pump 0.5 HP 575V 3PH 30' Cord Manual
Barnes 3SEV554DS Submersible Double Seal Sewage Ejector Pump 0.5 HP 575V 3PH 30' Cord Manual
SKU : BAR104953
In Stock Quantity:0
:
Brand
:
Regular price
$2,416.85 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

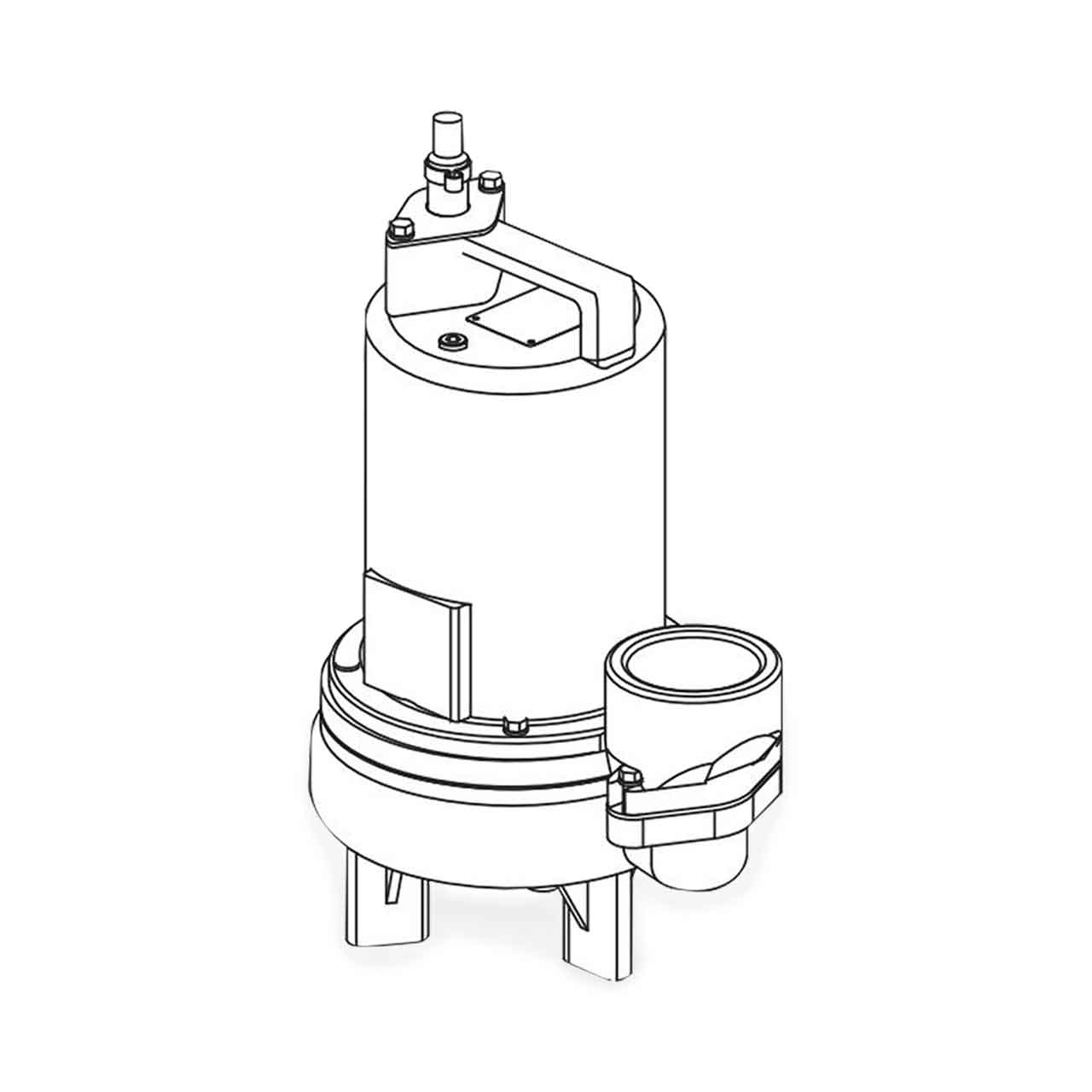

Barnes 3SEV-DS Series Submersible Sewage Ejector Pump
Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.
Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Applications
Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.
Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Features
- Cast Iron Construction.
- NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Three Phase 200-230/460 is Tri-Voltage. 575V. Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
- Tandem Mechanical, Oil Filled Reservoir Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is Cast Iron ASTM A-48, Class 30.
- 3" NPT, Female, Vertical, Bolt-On Flange Discharge.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes 3SEV554DS Submersible Sewage Ejector Pump Specifications
- VOLTAGE: 3ø, 575V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 1.4
- MOTOR TYPE: Tri-Voltage
- RPM: 1750
- MAXIMUM HEAD: 27'
- MAXIMUM CAPACITY: 140 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3.0" NPT, Female, Vertical, Bolt-On Flange
- MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
- IMPELLER TYPE: Vortex, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 5.37
- CORD LENGTH: 30'
- CORD SIZE: 14/4; Type: SJTOW
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
- DUTY RATING: Continuous
- CONTROL BOX REQUIRED
Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Product Resources
Download Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Specifications
Download Barnes 3SEV-DS Series Submersible Sewage Ejector Pump Manual
