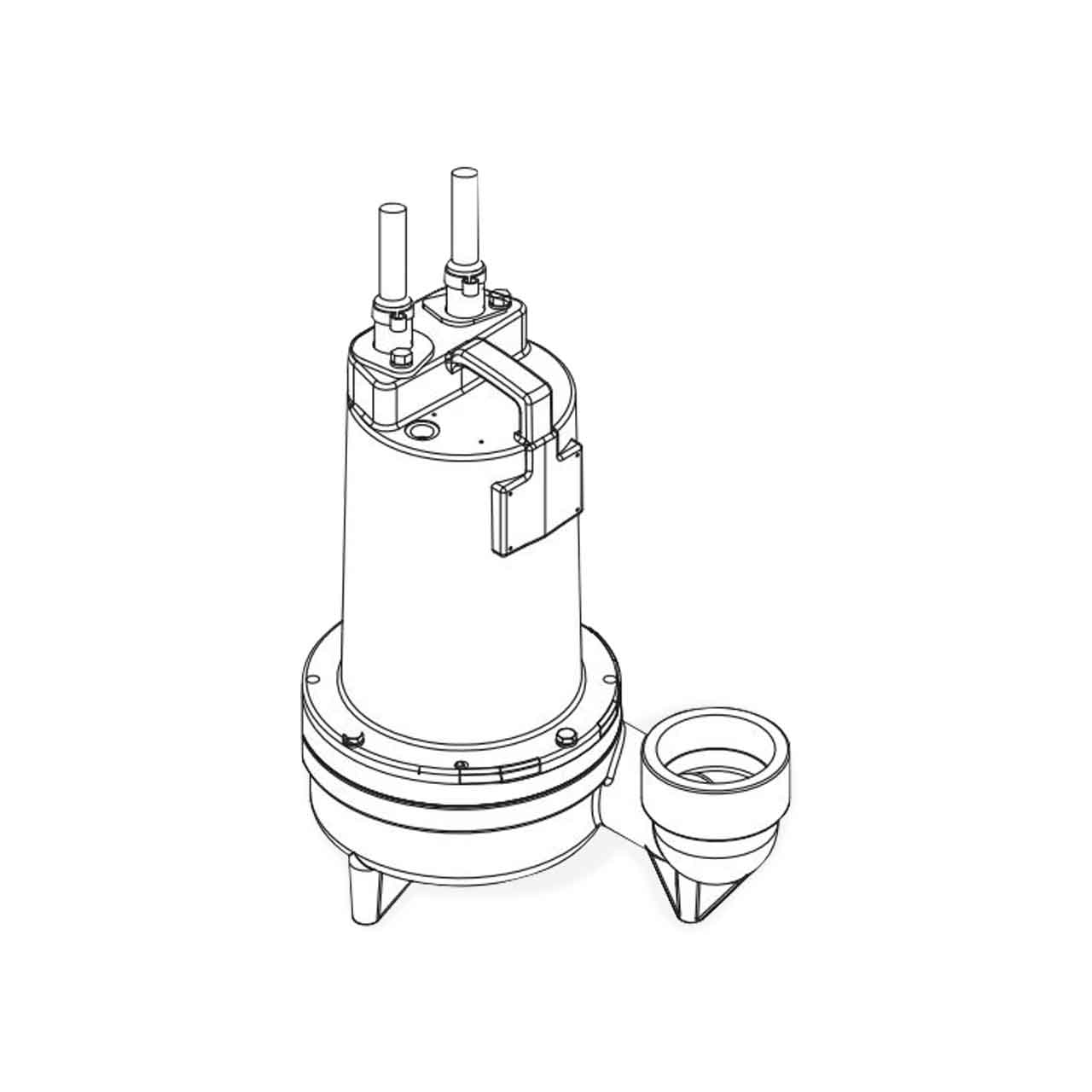

Barnes 3SE-L Series Submersible Sewage Ejector Pump

Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.

Barnes 3SE-L Series Submersible Sewage Ejector Pump Applications

Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.

Barnes 3SE-L Series Submersible Sewage Ejector Pump Features

• Cast Iron Construction.
• NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
• Three Phase 200-230/460 is Tri-Voltage. 575V. Requires Overload Protection to be Included in Control Panel .
• Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
• Single Mechanical, Oil Filled Reservoir Seal.
• Seal is Carbon/Ceramic/Buna-N Hardware - 300 Series Stainless.
• Impeller is Cast Iron Class 25.
• 3" NPT, Female, Vertical Discharge.
• Temperature Rating: 104°F (40°C) Continuous.

Barnes 3SE2052L Submersible Sewage Ejector Pump Specifications

• VOLTAGE: 3ø, 575V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 4.0
• MOTOR TYPE: Tri-Voltage
• RPM: 3450
• MAXIMUM HEAD: 78'
• MAXIMUM CAPACITY: 170 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 3.0" NPT, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 1.5" Spherical Solids
• IMPELLER TYPE: 2 Vane, Semi-Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
• IMPELLER DIAMETER: 4.38
• CORD LENGTH: 30'
• CORD SIZE: 14/4; Type: SOOW/SOW
• BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
• DUTY RATING: Continuous
• CONTROL BOX REQUIRED

Barnes 3SE-L Series Submersible Sewage Ejector Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes 3SE-L Series Submersible Sewage Ejector Pump Product Resources

Download Barnes 3SE-L Series Submersible Sewage Ejector Pump Specifications

Download Barnes 3SE-L Series Submersible Sewage Ejector Pump Manual
