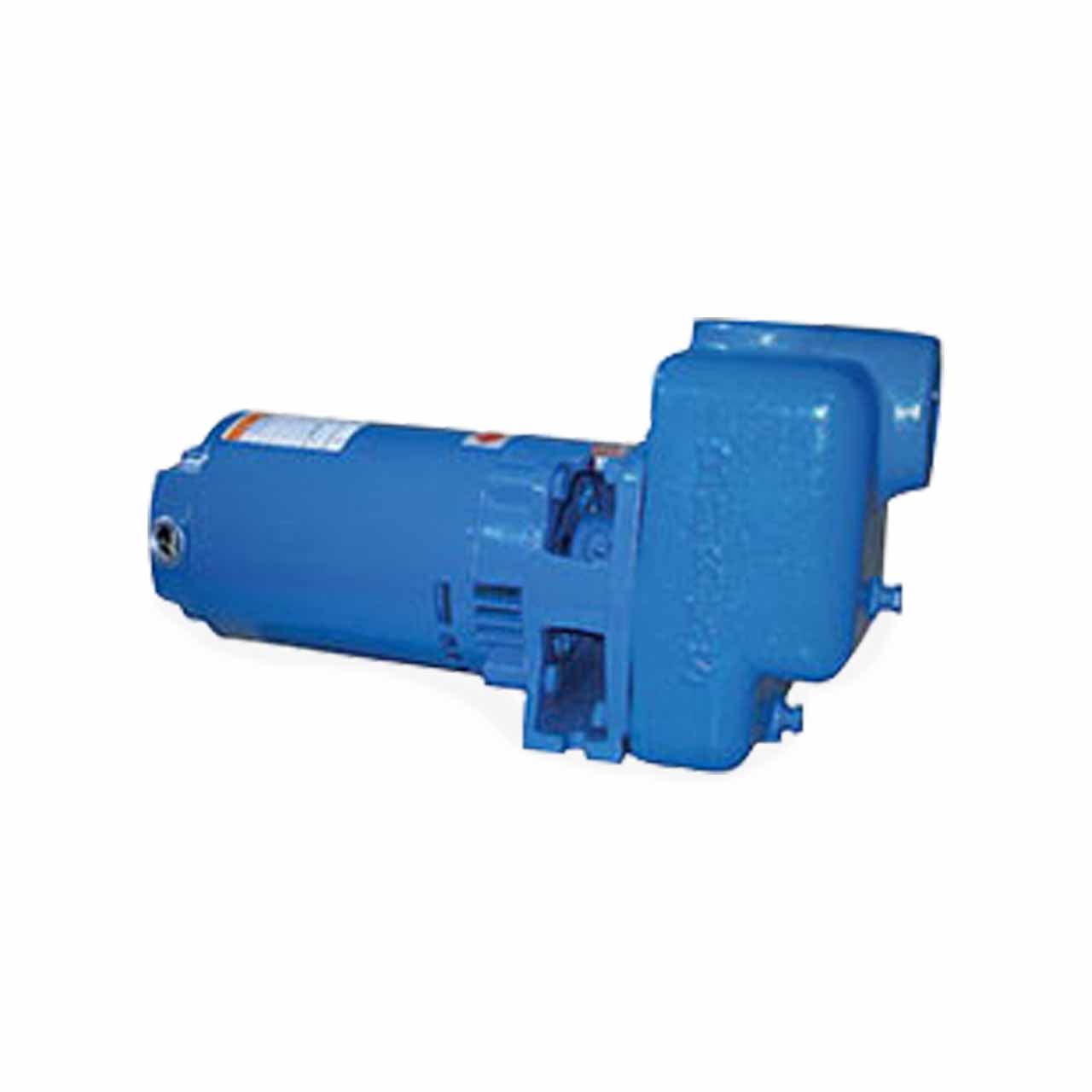

Barnes 3CCE Series Self-Priming Close Coupled Pump

Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.

Barnes 3CCE Series Self-Priming Close Coupled Pump Applications

Self-priming centrifugal pumps designed for marine, municipal and industrial applications.

Barnes 3CCE Series Self-Priming Close Coupled Pump Features and Benefits

• Totally Enclosed, Fan Cooled (TEFC), NEMA L-Single Phase. C-Face, Footed, Squirrel Cage Induction Motor.
• Single Phase Capacitor Start, Dual Voltage 115/230.
• Cast Iron ASTM A-48, Class 30 Motor Housing and Volute
• Check Valve is Neoprene Flap Type with Weight-Cast Iron ASTM A-48, Class 30.
• Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
• 1.5" NPT Female, Discharge and Suction
• Temperature Rating: 160°F (71°C), Continuous.

Barnes 3CCE-1 Series Self-Priming Close Coupled Pump Specifications

• DISCHARGE SIZE: 1.5" NPT Female
• INLET SIZE: 1.5" NPT Female
• MAXIMUM CAPACITY: 95 GPM
• MAXIMUM HEAD: 84'
• ENGINE: Totally Enclosed Fan-Cooled (TEFC)
• HORSEPOWER: 1.5 HP
• RPM: 3450
• VOLTAGE: 115/230V
• PHASE: 1 Ph
• FULL LOAD AMPS: 16.6/8.3
• MAXIMUM SOLIDS HANDLING SIZE: 5/16"
• BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
• IMPELLER TYPE: Semi-Open, Dynamically Balanced, ISO G6.3
• MAXIMUM LIQUID TEMPERATURE: 160°F (71°C) Continuous
• SELF PRIMING: YES

Barnes 3CCE Series Self-Priming Close Coupled Pump Performance Curve
