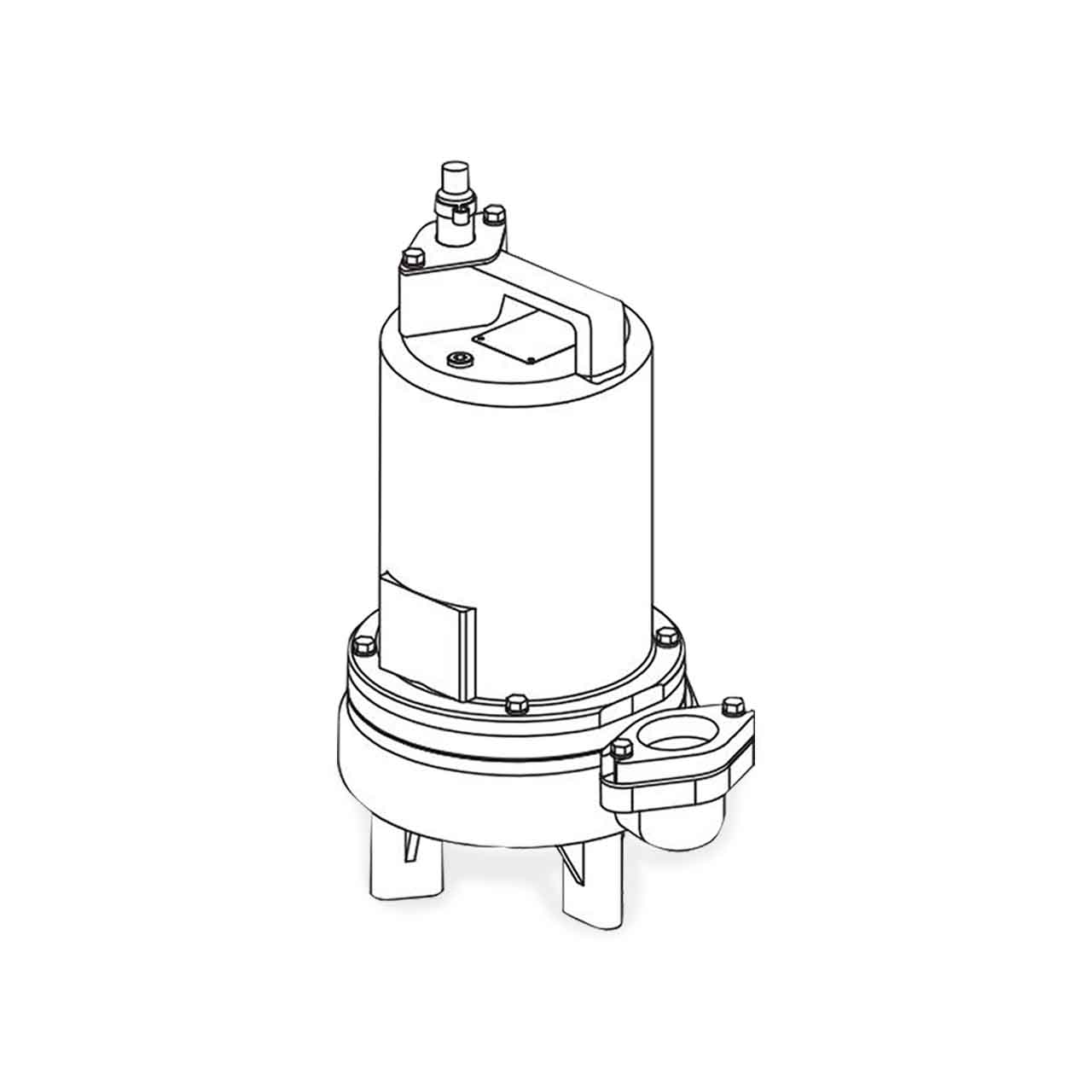

Barnes 2SEV-L Series Submersible Sewage Ejector Pump
Barnes engineered sewage ejector pumps are available in 1.5", 2.0" & 3.0" discharge, for residential and light commercial wastewater applications.
Barnes 2SEV-L Series Submersible Sewage Ejector Pump Applications
Submersible Non-Clog Sewage Pump Designed for Typical Raw Sewage Applications.
Barnes 2SEV-L Series Submersible Sewage Ejector Pump Features
- Cast Iron Construction.
- NEMA B-Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction Motor.
- Three Phase 200-230/460 is Tri-Voltage. 575V. Requires Overload Protection to be Included in Control Panel.
- Upper Bearing: Single Row, Ball, Oil Lubricated, Radial Load. Lower Bearing: Single Row, Ball, Oil Lubricated, Radial & Thrust Load.
- Single Mechanical. Oil Filled Reservoir, Secondary Exclusion Seal.
- Seal is Carbon/Ceramic/Buna-N Hardware -300 Series Stainless.
- Impeller is 85-5-5-5 Cast Iron.
- 2" NPT, Female, Vertical Discharge, Bolt-On Flange.
- Temperature Rating: 104°F (40°C) Continuous.
Specifications
Specifications
Barnes 2SEV2042L Submersible Sewage Ejector Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 5.5
- MOTOR TYPE: Tri-Voltage
- RPM: 3450
- MAXIMUM HEAD: 74'
- MAXIMUM CAPACITY: 170 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical, Bolt-On Flange
- MAXIMUM SOLIDS HANDLING SIZE: 2.0" Spherical Solids
- IMPELLER TYPE: Vortex, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3
- IMPELLER DIAMETER: 4.62
- CORD LENGTH: 20'
- CORD SIZE: 14/4; Type: SOW
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
- DUTY RATING: Continuous
- CONTROL BOX REQUIRED
Barnes 2SEV-L Series Submersible Sewage Ejector Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes 2SEV-L Series Submersible Sewage Ejector Pump Product Resources
Download Barnes 2SEV-L Series Submersible Sewage Ejector Pump Specifications
Download Barnes 2SEV-L Series Submersible Sewage Ejector Pump Manual
