Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End

Usually ships within 4 weeks

SKU : BAR052624

In Stock Quantity:0

:
Brand : Barnes
$7,880.40 USD
Shipping calculated at checkout.

Description

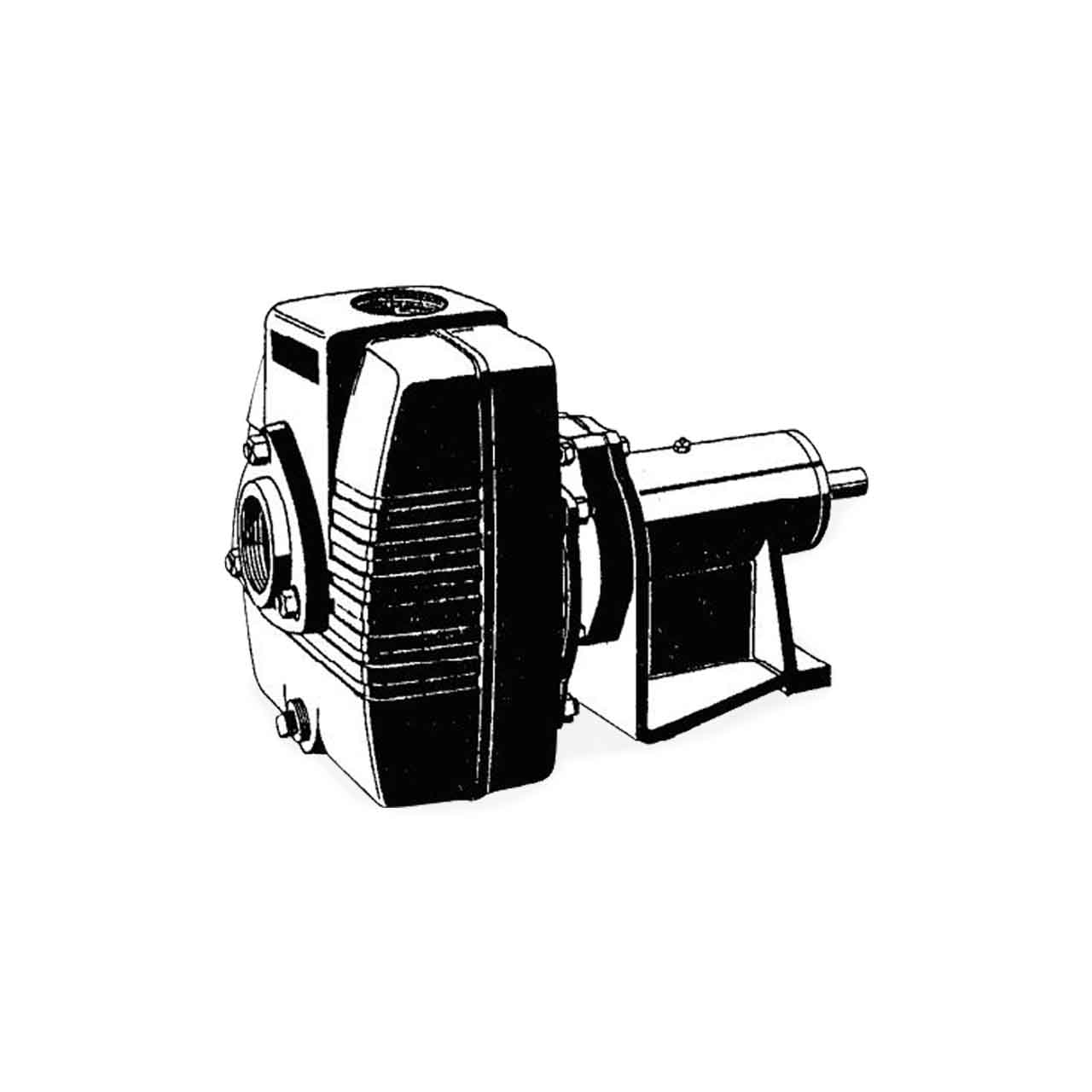

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End

Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End Applications

Self-priming centrifugal pumps designed for marine, municipal and industrial applications.

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End Features and Benefits

  • Cast Iron ASTM A-48, Class 30 Motor Housing and Removable Volute
  • Impeller is Cast Iron ASTM A-48, Class 30
  • Check Valve is Neoprene Flap Type with Weight-Cast Iron ASTM A-48, Class 30.
  • Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
  • 3.0" NPT Female Discharge and 3.0" NPT Female Suction
  • Temperature Rating: 160°F (71°C), Continuous.

Specifications

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End Specifications

  • DISCHARGE SIZE: 3.0" NPT, Female
  • INLET SIZE: 3.0" NPT, Female
  • MAXIMUM CAPACITY: 380 GPM @ 3500 RPM
  • MAXIMUM HEAD: 137' @ 3500 RPM
  • MOTOR: PUMP END ONLY
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4"
  • BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
  • IMPELLER TYPE: Semi-Open, Dynamically Balanced, ISO G6.3
  • MAXIMUM LIQUID TEMPERATURE: 160°F (71°C), Continuous
  • SELF PRIMING: YES

Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes 20CUI-1 Self-Priming Universal/Electric Driven Pump End Product Resources


Download Barnes 20ICU-1 Self-Priming Universal/Electric Driven Pump End Catalog Sheet

Download Barnes ICU Series Self-Priming Universal/Electric Driven Pump End Manual
