Barnes 2020HCU End Suction Centrifugal Pump Pedestal Mounted
Barnes 2020HCU End Suction Centrifugal Pump Pedestal Mounted
SKU : BAR029676
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Barnes

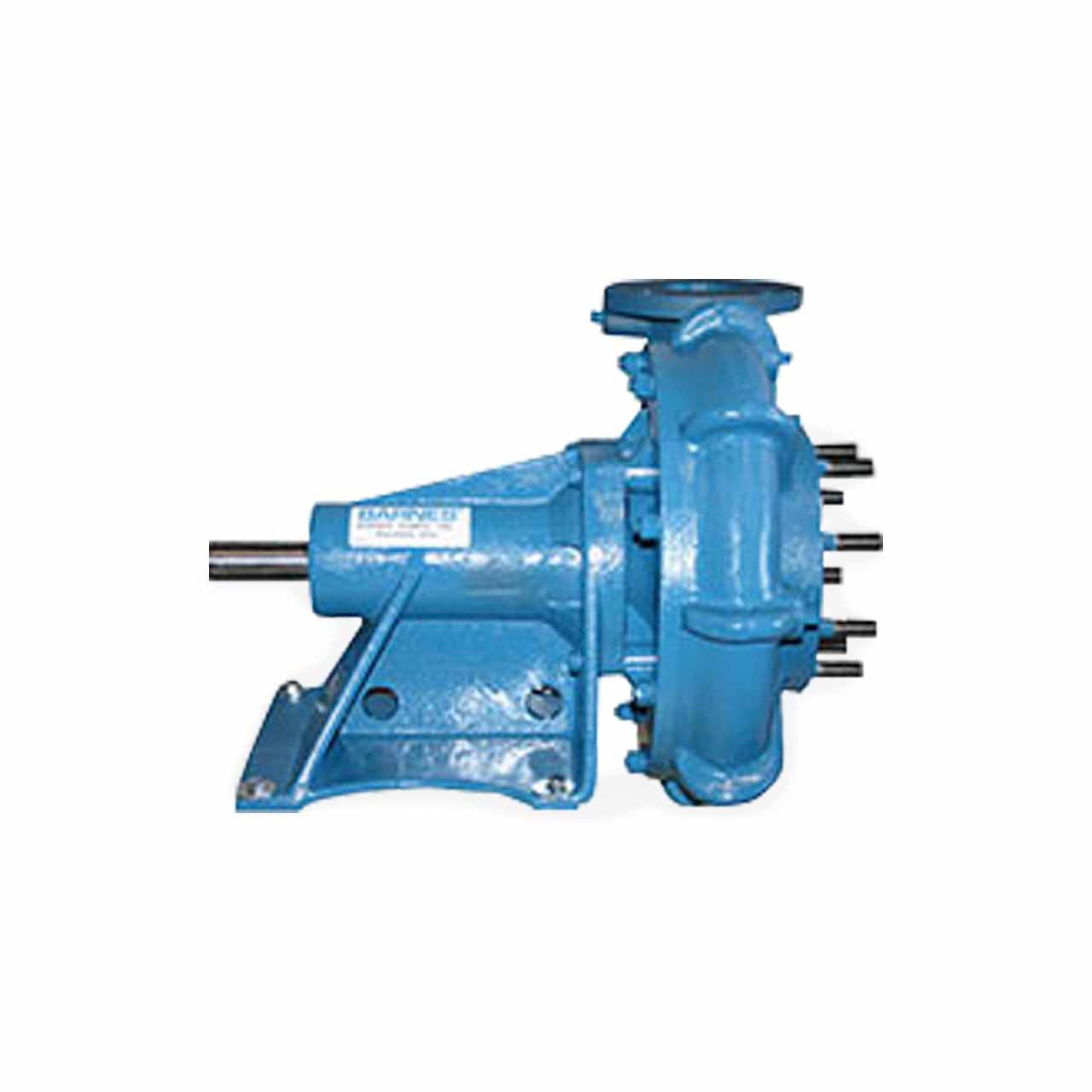

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump
Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.
Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Applications
These pumps are suitable for general industrial use such as liquid transfer or as booster pump.
Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Features and Benefits
- Cast Iron ASTM, Class 30 Motor w/Air Vent, Vacuum Pressure and Drain Plugs Housing
- Cast Iron ASTM, Class 30 Pedestal
- Impeller is 81-3-7-9 Bronze
- Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
- 2.0" 125lb Flange Discharge and 2.0" NPT Suction
- Discharge can be Placed in 8 Different Locations Depending on Piping Requirements.
- Temperature Rating: 180°F (82°C), Continuous.
Specifications
Specifications
Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Specifications
- DISCHARGE SIZE: 2.0" 125lb Flange
- INLET SIZE: 2.0" NPT
- MAXIMUM CAPACITY: 160 GPM @ 3500 RPM
- MAXIMUM HEAD: 272' @ 3500 RPM
- IMPELLER MATERIAL: 81-3-7-9 Bronze; Enclosed Type, Dynamically Balanced, ISO G6.3
- BODY CONSTRUCTION: Cast Iron ASTM, Class 30, with Air Vent, Vacuum Pressure and Drain Plugs
- MAXIMUM LIQUID TEMPERATURE: 180°F (82°C)
Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Performance Curves
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Product Resources
Download Barnes 2020HCU Series End Suction Centrifugal Pedestal Mounted Pump Catalog Sheet
Download Barnes 2020HCU Series End Suction Centrifugal Pedestal Mounted Pump Manual
