Barnes 126914 41-Gallon Pre-Assembled 20x30 Basin Package 0.5 HP 115V 1PH

Barnes 126914 41-Gallon Pre-Assembled 20x30 Basin Package 0.5 HP 115V 1PH

Usually ships within 4 weeks

SKU : BAR126914

In Stock Quantity:0

:
Brand : Barnes
$1,517.18 USD
Shipping calculated at checkout.

Description

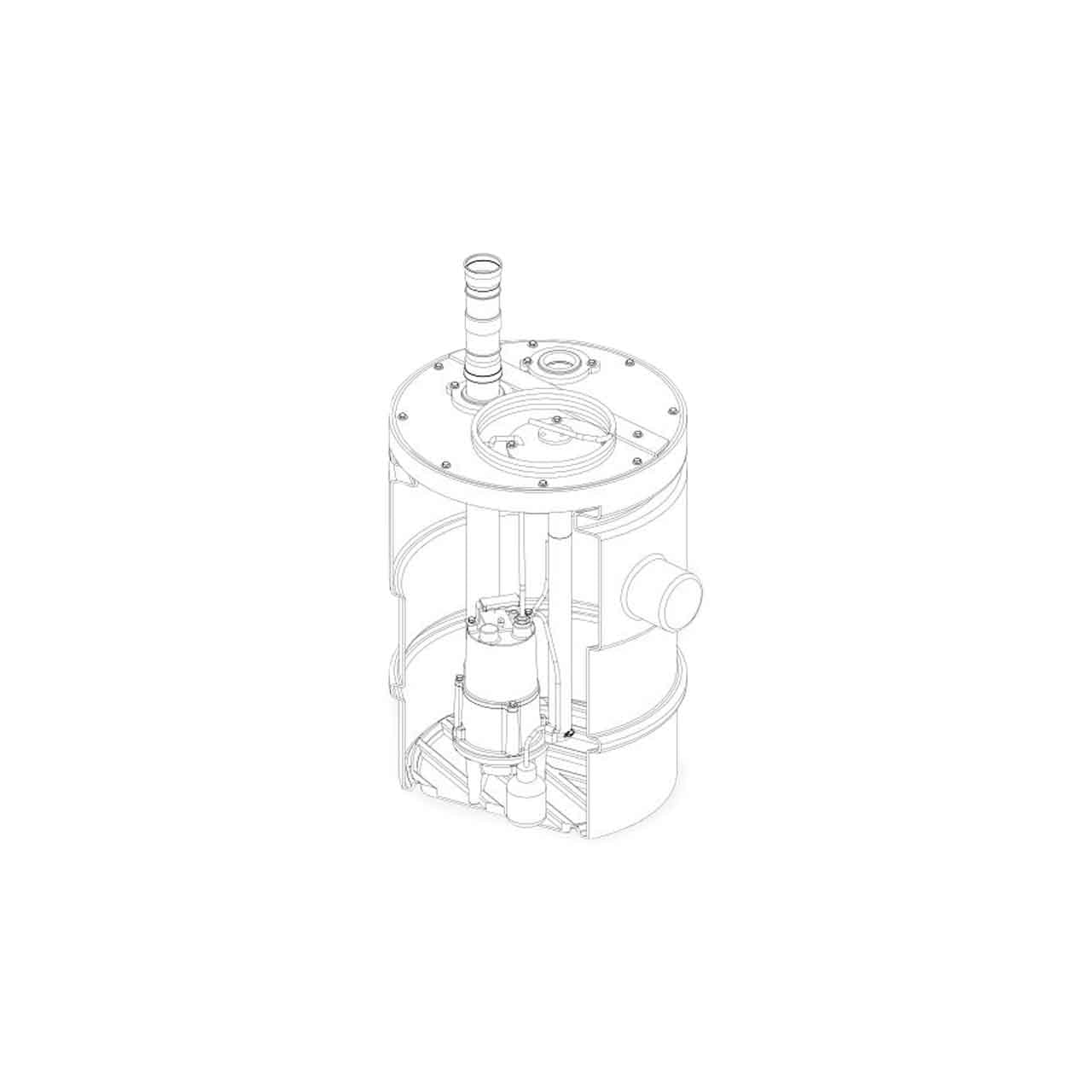

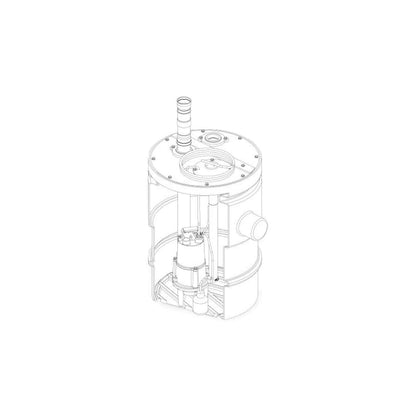

Barnes 126914 41-Gallon Pre-Assembled 20X30 Basin Package

Barnes Professional Plumbing Packaged Sewage Pump Systems are designed to handle wastes from lavatories, laundry, tubs, floor drains, water closets, ect.. and will push the water from below ground up to where normal drainage will handle it. Complete packages with basins and controls are available in many different sizes and configurations.

Barnes 126914 41-Gallon Pre-Assembled 20X30 Basin Package Applications

Simplex Systems (one pump) are good for Residential & Commercial Sewage or Sump Applications. They are designed to handle wastes from lavatories, laundry tubs, floor drains, water closets, ect.. and will pump the water from below ground "uphill" to the sewer.

Barnes 126914 41-Gallon Basin Package Includes

  • SE411, SEV412 or SE421 Heavy Duty Sewage Ejector Pump.
  • Level Control: Mechanical Switch Molded Inside of a Waterproof Float. Single Control Turns Pump On and Off Automatically. Piggy-Back Design.
  • Polyethylene Basin: 20" (457mm) Dia. x 30" (762mm) Deep, with 4" (102mm) Inlet Hole. 25" (635mm) Dia. x 24" (610mm) Deep, with 4" (102mm) Inlet Hole.
  • Split Cover with Floatree 2" (51mm) Vent, 2" (51mm) Discharge and Cord Openings.
  • 2" (51mm) Vertical Compression Check Valve

    • Schedule 40 Discharge Pipe, Cover Gasket, Cover Hardware, Cord Grommet, Discharge and Vent Grommets also Included.

Barnes 126914 41-Gallon Pre-Assembled 20X30 Basin Package Features

  • Floatree Design for Easy Float Maintenance; Flange Includes Provision for Optional Alarm Float.
  • Split Cover Allows Simplified Basin Access.
  • Sidewall Ribs Lock Basin in Place when Concrete Floor is Poured.
  • Inlet Hubs Easily Connect to the Piping with Flexible Rubber Connectors (provided by others)
  • Ribbed Floor Limits Pump Rotation

    • NOTE: Pre-Assembled Units contain Water soluble Packing Inside. There is no Need to Remove it.

Specifications

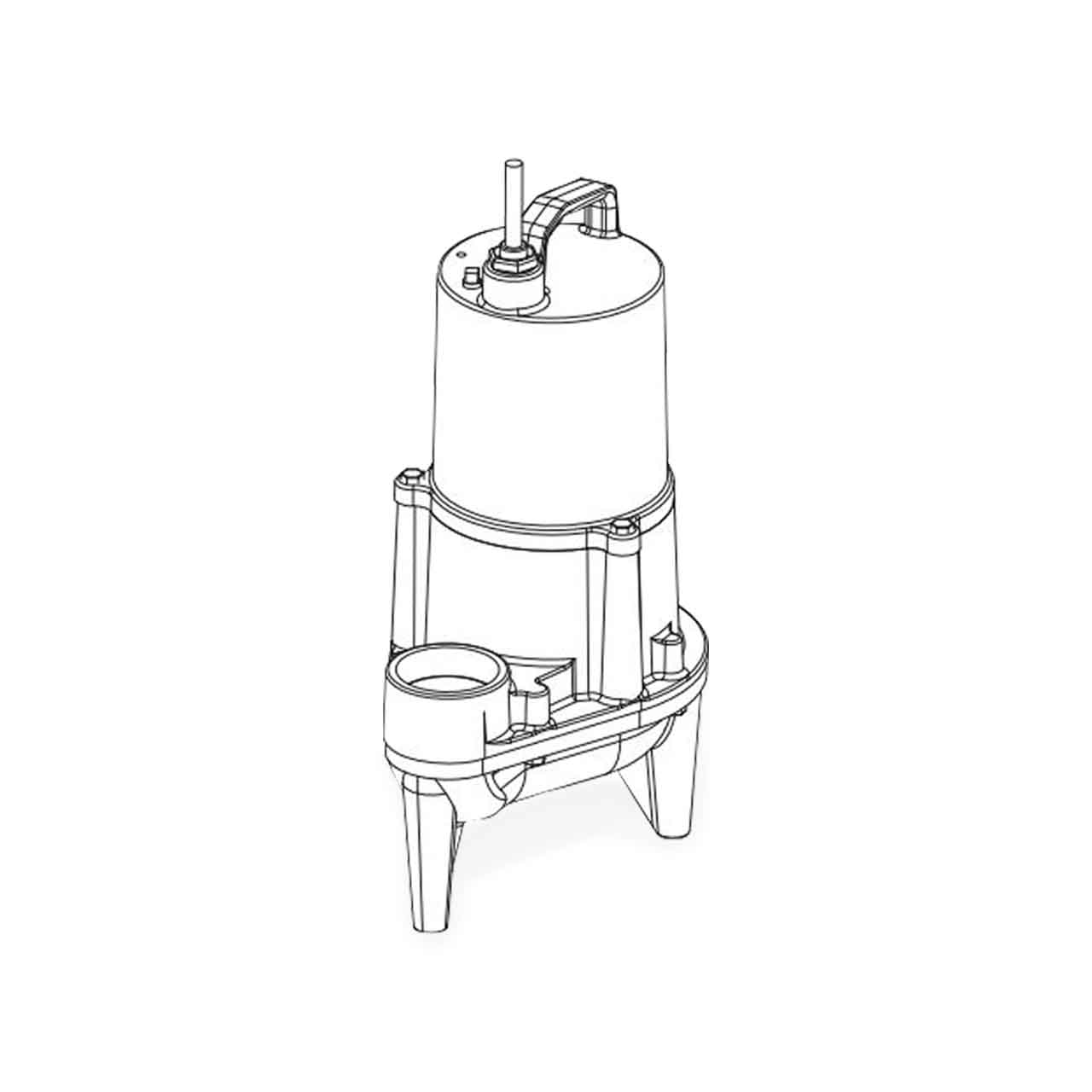

Barnes SEV412 Submersible Sewage Ejector Pump Specifications

  • BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
  • HORSEPOWER: 0.5 HP
  • VOLTAGE: 230 V
  • PHASE: 1 Ph
  • HERTZ: 60 Hz
  • RPM: 3450 RPM
  • FULL LOAD AMPS: 10.5
  • DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical
  • SOLIDS HANDLING: 2.0" Spherical Solids
  • CORD LENGTH: 20'
  • CORD SIZE & TYPE: 14/3, SJTOW
  • MAX HEAD: 25'
  • MAX FLOW RATE: 75 GPM
  • IMPELLER: Multi Vane, Vortex

Barnes SEV412 Series Submersible Sewage Ejector Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barnes 126914 41-Gallon Pre-Assembled 20X30 Basin Package Product Resources


Download Barnes 41-Gallon Pre-Assembled 20X30 Basin Package Specifications

Download Barnes SEV412 Series Submersible Sewage Ejector Pump Specifications

Download Barnes 41-Gallon Pre-Assembled 20X30 Basin Package Manual
