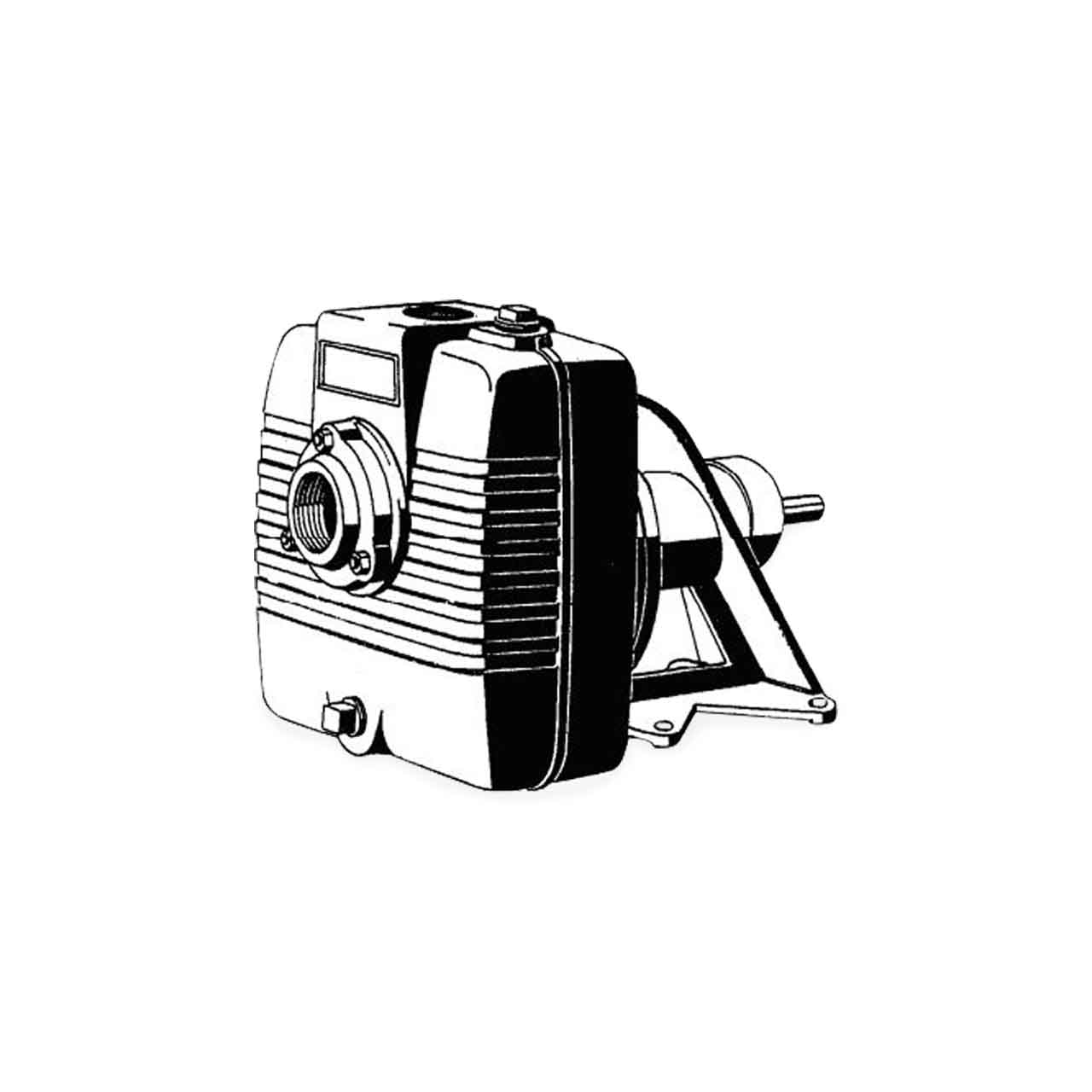

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End

Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Applications

Self-priming centrifugal pumps designed for marine, municipal and industrial applications.

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Features and Benefits

• Cast Iron ASTM A-48, Class 30 Motor Housing and Removable Volute
• Impeller is Cast Iron ASTM A-48, Class 30
• Check Valve is Neoprene Flap Type with Weight-Cast Iron ASTM A-48, Class 30.
• Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
• 2.0" NPT Femal Discharge and 2.0" NPT Female Suction
• Temperature Rating: 160°F (71°C), Continuous.

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Specifications

• DISCHARGE SIZE: 2.0" NPT, Female
• INLET SIZE: 2.0" NPT, Female
• MAXIMUM CAPACITY: 189 GPM @ 3500 RPM
• MAXIMUM HEAD: 126' @ 3500 RPM
• MOTOR: PUMP END ONLY
• MAXIMUM SOLIDS HANDLING SIZE: 1/2"
• BODY CONSTRUCTION: Cast Iron ASTM A-48, Class 30
• IMPELLER TYPE: Semi-Open, Dynamically Balanced, ISO G6.3
• MAXIMUM LIQUID TEMPERATURE: 160°F (71°C), Continuous
• SELF PRIMING: YES

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Product Resources

Download Barnes 10ICU-1 Self-Priming Universal/Electric Driven Pump End Catalog Sheet

Download Barnes ICU Series Self-Priming Universal/Electric Driven Pump End Manual
