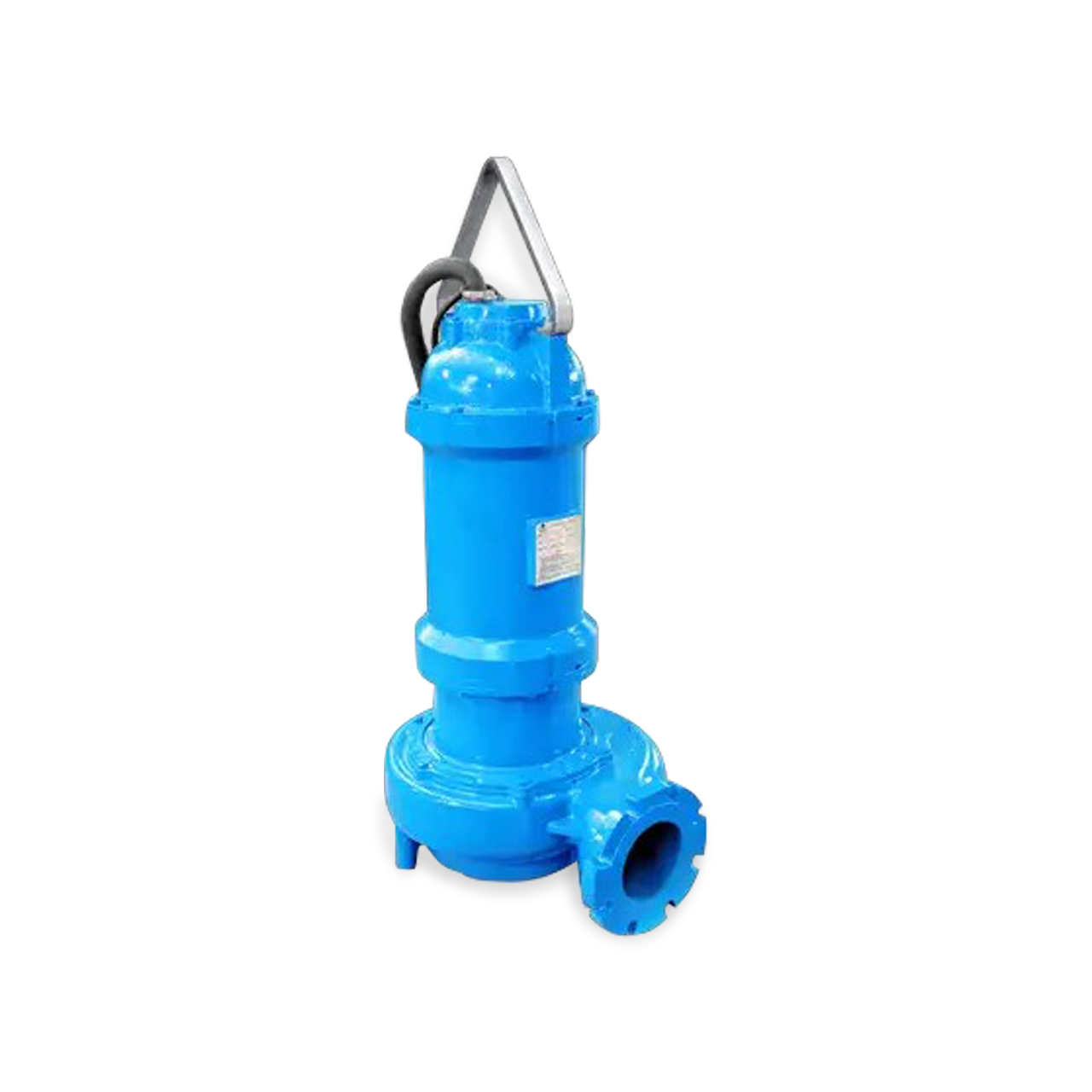

Barmesa SW Series 6SWH10046DS Submersible Solids Handling Pump 10 HP 460V 3PH 40' Cord Manual
Barmesa SW Series 6SWH10046DS Submersible Solids Handling Pump 10 HP 460V 3PH 40' Cord Manual
SKU : BMS62172136
In Stock Quantity:0
:
Brand
:
Regular price
$18,150.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa SW Series Submersible Solids Handling Pump Description
The New Barmesa State of the Art SW Pump offers durability and premium energy efficiency, making it a more sustainable product for the end user. Our engineers designed the SW Series to handle the most demanding applications with trouble-free operation. The SW series offers, superior cooling capabilities, continuous lubrication, motor moisture protection, and the highest efficient motor available.
Barmesa SW Series Submersible Solids Handling Pump Features
- MOTOR: NEMA, Three Phase, Premium Efficiency, Oil-Filled, Squirrel Cage Induction, Inverted Duty Rated. Class H Insulation. Requires Overload Protection in Control Panel.
- MOTOR HOUSING: Cast Iron ASTM A-48 Class 30
- BEARINGS: Upper - Single Row and Oil Lubricated for Radial Load. Lower - Double Row and Oil Lubricated, for Radial and Thrust Loads.
- SEAL DESIGN: Tandem, Mechanical, in Oil Filled Reservoir
- SEAL MATERIAL: Inboard Rotating Faces - Carbon; Stationary Faces - Ceramic. Outboard Rotating and Stationary Faces, Silicone Carbide. Buna-N Elastomer and 300 Series Stainless Steel Hardware.
- IMPELLER: Enclosed Mono Vane with Pumpout Vanes on Backside, Dynamically Balanced. Ductile Iron ASTM A-536, 65-45-12.
- DISCHARGE: 6", 125lb, Horizontal Flange, Slotted to Accommodate 150 mm ISO Flange.
- TEMPERATURE RATING: 104°F (40°C) Continuous
Specifications
Specifications
Barmesa 6SWH10046DS Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 10 HP
- AMP DRAW (full load): 13.5
- MOTOR TYPE: NEMA Three Phase Premium Efficiency
- RPM: 1150
- MAXIMUM HEAD: 48'
- MAXIMUM CAPACITY: 1420 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 6.0" 125lb, Horizontal Flange
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Ductile Iron, Enclosed Dual Vane with Pumpout Vanes on Back Side
- IMPELLER DIAMETER: 10.43" Standard
- CORD LENGTH: 40'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa SW Series Submersible Solids Handling Pump Performance Curve
