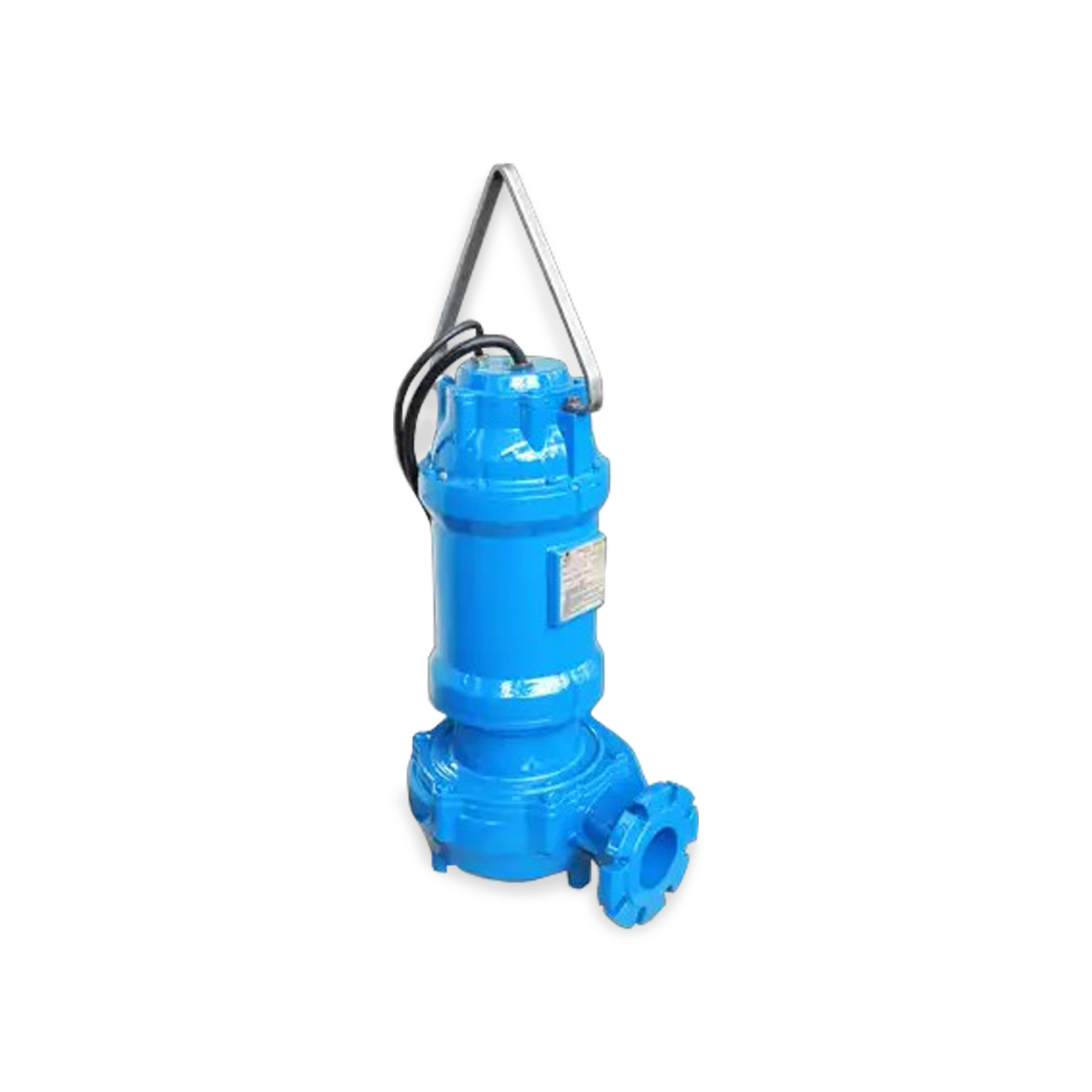

Barmesa SW Series 4SWL10036DS Submersible Solids Handling Pump 10 HP 208/230V 3PH 40' Cord Manual
Barmesa SW Series 4SWL10036DS Submersible Solids Handling Pump 10 HP 208/230V 3PH 40' Cord Manual
SKU : BMS62172013
In Stock Quantity:0
:
Brand
:
Regular price
$16,738.20 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa SW Series Submersible Solids Handling Pump Description
The Barmesa Pumps SW Series represents a significant advancement in submersible solids handling pump technology. Engineered for durability and energy efficiency, these pumps are ideal for challenging applications requiring consistent, trouble-free operation. Key features include advanced cooling systems, continuous lubrication, and robust motor protection, ensuring reliable performance and sustainability. With their innovative design, the SW Series stands out for its operational excellence and energy-saving potential.
Barmesa SW Series Submersible Solids Handling Pump Features
- Oil-Filled Motor Provides Superior Cooling
- Standard Type 21 Mechanical Seals Creates Ease of Service
- Sela Leakage Detection Probe in the Seal Chamber Ensures Motor Moisture Protection
- An Epoxy Filled Connection Cord Chamber is a Proven Design to Prevent Moisture Entering the Chamber
- Continuously Oil Lubricated Maintenance Free Bearings Ensures Efficient Lubrication and Smooth Operation
- Corrosion-Resistant Stainless Steel Hardware
- High Efficiency Mono and Dual Vane Impellers Can Handle 3" Solids
Specifications
Specifications
Barmesa 4SWL10036DS Pump Specifications
- VOLTAGE: 3ø, 208/230V, 60Hz
- HORSEPOWER: 10 HP
- AMP DRAW (full load): 29/27
- MOTOR TYPE: NEMA Three Phase Premium Efficiency
- RPM: 1150
- MAXIMUM HEAD: 68'
- MAXIMUM CAPACITY: 740 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" 125lb, Horizontal Flange
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Ductile Iron, Enclosed Mono Vane with Pumpout Vanes on Back Side
- IMPELLER DIAMETER: 11.22" Standard
- CORD LENGTH: 40'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa SW Series Submersible Solids Handling Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Barmesa SW Series Submersible Solids Handling Pump Product Resources
