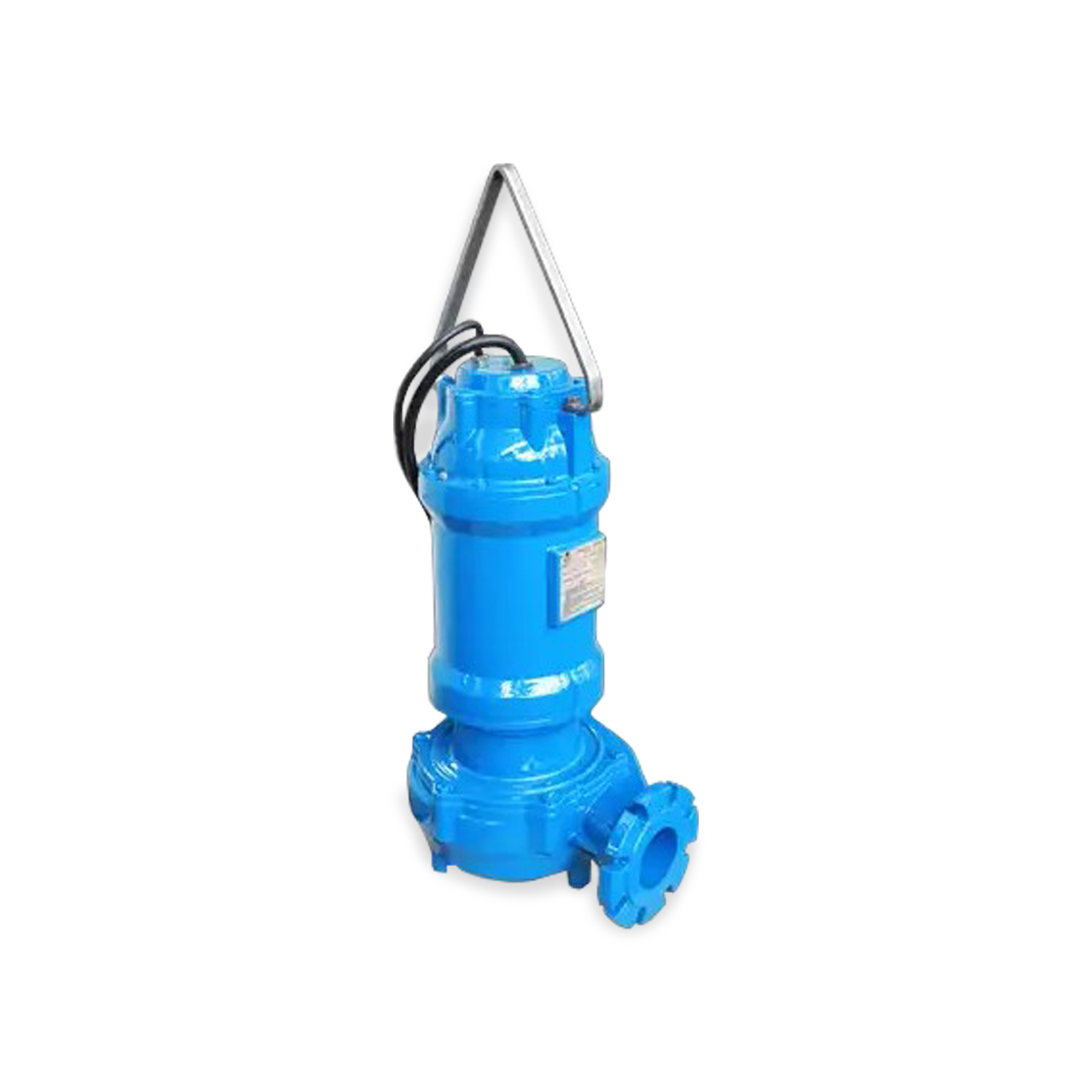

Barmesa SW Series 4SWH20046DS Submersible Solids Handling Pump 20 HP 460V 3PH 40' Cord Manual
Barmesa SW Series 4SWH20046DS Submersible Solids Handling Pump 20 HP 460V 3PH 40' Cord Manual
SKU : BMS62172047
In Stock Quantity:0
:
Brand
:
Regular price
$20,943.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Barmesa SW Series Submersible Solids Handling Pump Description
In industrial, municipal, and commercial contexts, these pumps efficiently manage water containing solid particles such as sewage or sludge. They are integral to sewage treatment, wastewater systems, construction, and mining operations, ensuring smooth water management by preventing clogs and facilitating efficient wastewater handling.
Barmesa SW Series Submersible Solids Handling Pump Features
- MOTOR: NEMA, Three Phase, Premium Efficiency, Oil-Filled, Squirrel Cage Induction, Inverted Duty Rated. Class H Insulation. Requires Overload Protection in Control Panel.
- MOTOR HOUSING: Cast Iron ASTM A-48 Class 30
- BEARINGS: Upper - Single Row and Oil Lubricated. Lower - Double Row and Oil Lubricated, for Radial and Thrust Loads.
- SEAL DESIGN: Tandem, Mechanical, in Oil Filled Reservoir
- SEAL MATERIAL: Inboard Rotating Faces - Carbon; Stationary Faces - Ceramic. Outboard Rotating and Stationary Faces, Silicone Carbide. Buna-N Elastomer and 300 Series Stainless Steel Hardware.
- IMPELLER: Enclosed Dual Vane with Pumpout Vanes on Backside, Dynamically Balanced. Ductile Iron ASTM A-536, 65-45-12.
- DISCHARGE: 4", 125lb, Horizontal Flange, Slotted to Accommodate 100 mm ISO Flange.
- TEMPERATURE RATING: 104°F (40°C) Continuous
Specifications
Specifications
Barmesa 4SWH20046DS Pump Specifications
- VOLTAGE: 3ø, 460, 60Hz
- HORSEPOWER: 20 HP
- AMP DRAW (full load): 24.6
- MOTOR TYPE: NEMA Three Phase Premium Efficiency
- RPM: 1150
- MAXIMUM HEAD: 80'
- MAXIMUM CAPACITY: 1140 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" 125lb, Horizontal Flange
- MAXIMUM SOLIDS HANDLING: 3.0" Spherical Solids
- IMPELLER TYPE: Ductile Iron, Enclosed Dual Vane with Pumpout Vanes on Back Side
- IMPELLER DIAMETER: 12.21" Standard
- CORD LENGTH: 40'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 104°F (40°C)
Barmesa SW Series Submersible Solids Handling Pump Performance Curve
