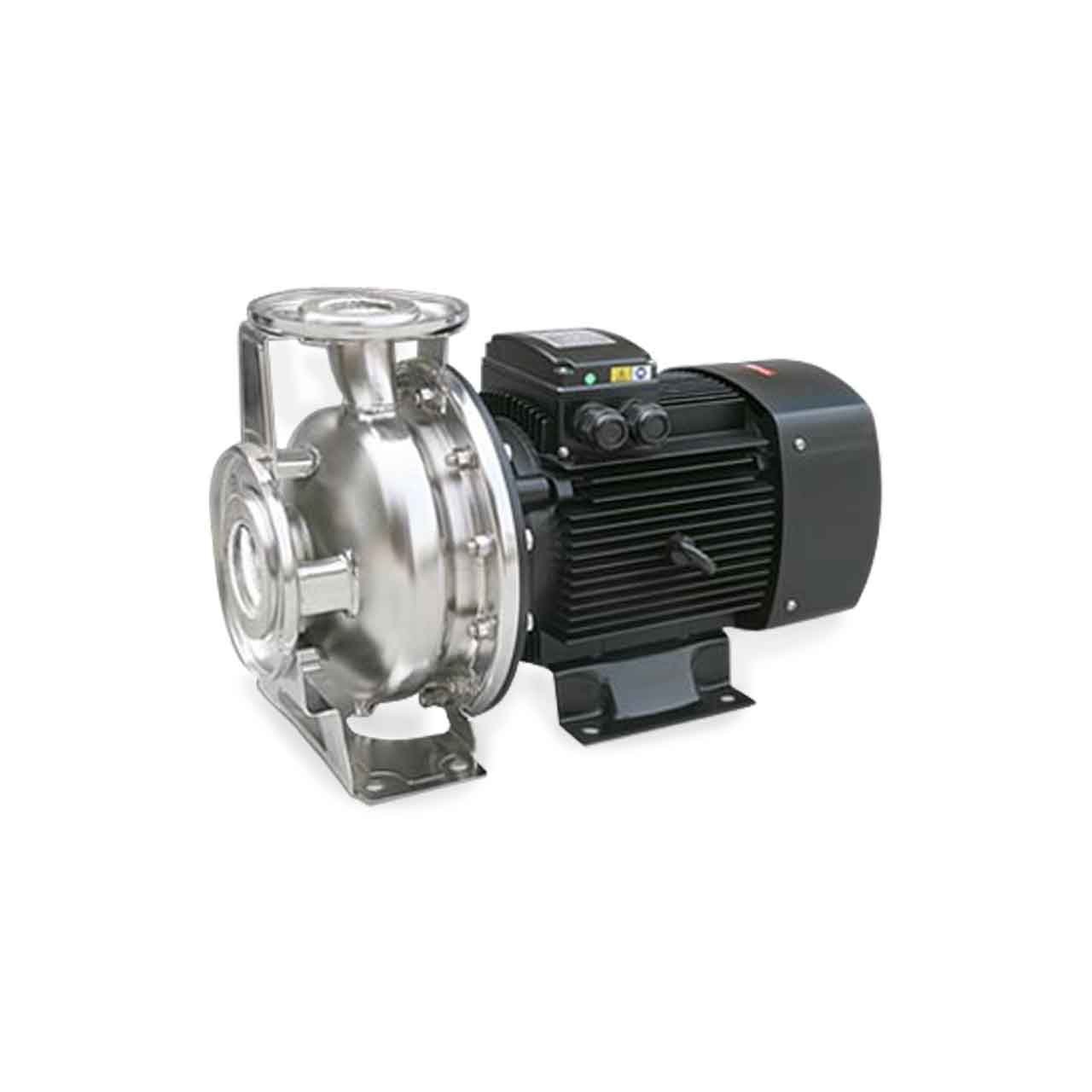

Barmesa SOX1½-7.5-2 End-Suction Centrifugal Stainless Steel Pump 7.5 HP 3PH

Barmesa SOX1½-7.5-2 End-Suction Centrifugal Stainless Steel Pump 7.5 HP 3PH

Usually ships within 3 weeks

SKU : BMSSOX115-7.5-2

In Stock Quantity:0

:
Brand : Barmesa Pumps
$3,932.25 USD
Shipping calculated at checkout.

Description

Barmesa SOX Series End-Suction Centrifugal Stainless Steel Pump

The SOX Series pumps by Barmesa are built for durability and performance. Featuring 304 stainless steel construction, they offer excellent resistance to corrosion and war. The design includes a center line discharge with foot support, ensuring stability and ease of maintenance through a back pull-out design. The self-venting feature guarantees efficient operation, while the high-efficiency motor and seals can handle high-temperature fluids, making these pumps a reliable choice for various applications.

Barmesa SOX Series End-Suction Centrifugal Stainless Steel Pump Applications

  • Scrubbers
  • Washer Equipment
  • Chemical Transfer
  • Food & Beverage Processing
  • Pharmaceutical Processing
  • Ultra Pure Water System
  • Water Reclamation & Treatment
  • Irrigation
  • Heating & Cooling
  • Marine

Barmesa SOX Series End-Suction Centrifugal Stainless Steel Pump Features

  • High Efficiency Motor, Totally Enclosed with External Ventilation; 60 Hz, 3450 RPM, Single-Phase 230V and Three Phase 230/460V, Class F Insulation. Built-In Thermal Protection in Single-Phase Motors.
    Requires Installation of Electrical Overload Protection.
  • 304 Series Stainless Steel Housing
  • Mechanical, Lubricated by Water Seal
  • Seal is Silicone Carbide Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. EPDM Elastomer and Stainless Steel Spring.
  • Impeller Design is Close Type and Material is 304 Series Stainless Steel
  • Suction is 2.5" Horizontal Flange 150 lb. DIN
  • Discharge is 1½" Vertical Flange 150 lb. DIN
  • Temperature Rating: 158 °F (70 °C) and 219 °F (104 °C) With High Temperature Seal.

Specifications

Barmesa SOX1½-7.5-2 End-Suction Centrifugal Pump Stainless Steel Specifications

  • DISCHARGE SIZE: 1.5" Vertical Flange 150 lb. DIN
  • INLET SIZE: 2.5" Horizontal Flange 150 lb. DIN
  • MAXIMUM CAPACITY: 550 GPM
  • MAXIMUM HEAD: 49'
  • IMPELLER MATERIAL: 304 Stainless Steel / Closed
  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 7.5 HP @ 3500 RPM
  • MOTOR TYPE: TEFC (Totally Enclosed Fan-Cooled) High Efficiency
  • VOLTAGE: 3ø - 230/460V
  • MAXIMUM LIQUID TEMPERATURE: 158°F (70°C)

Barmesa SOX Series End-Suction Centrifugal Stainless Steel Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Barmesa SOX End-Suction Centrifugal Pump Stainless Steel Pump Product Resources


Download Barmesa SOX Series End-Suction Centrifugal Pump Stainless Steel Pump Catalog Sheet

Download Barmesa SOX Series End-Suction Centrifugal Pump Stainless Steel Pump Manual
